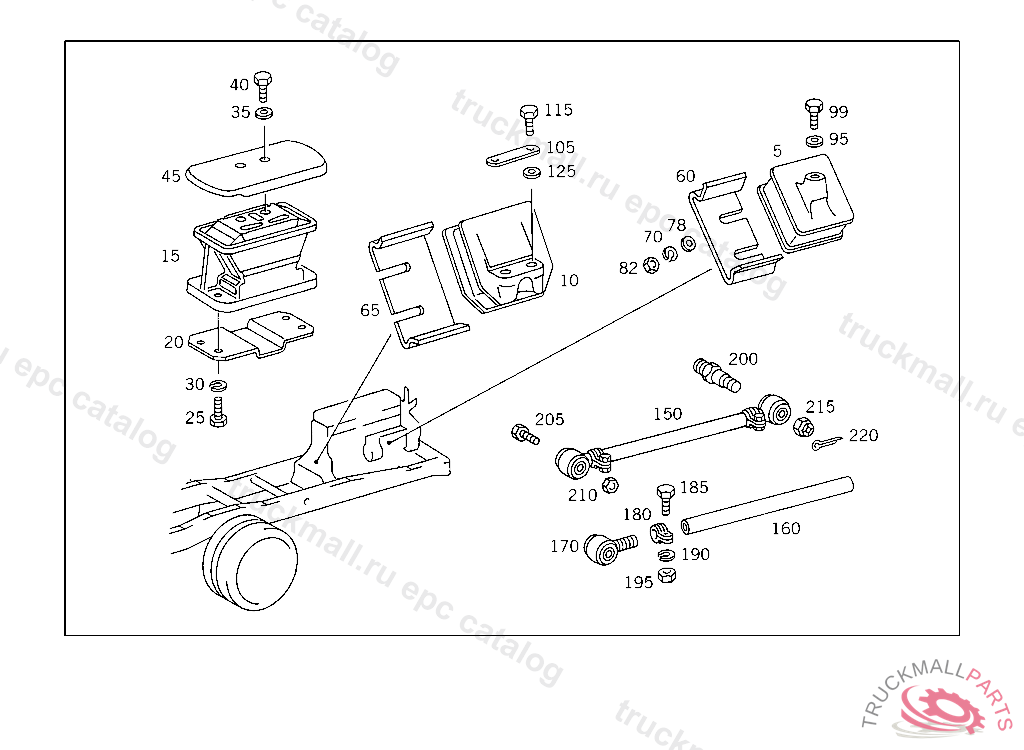

Поз.
Артикул
Описание
5
RUBBER MOUNTING ENGINE FRONT SUSPENSION
10
RUBBER MOUNTING
10
RUBBER MOUNTING
60
ENGINE STAY RUBBER MOUNTING TO FRONT CROSS MEMBER
65
ENGINE STAY RUBBER MOUNTING TO ENGINE REAR SUPPORT
70
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
82
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
95
WASHER CONSOLE TO FRAME
99
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS M 16X55
105
LOCK
115
SCREW REAR BRACKET TO FRAME
125
WASHER RUBBER MOUNTING TO FRONT CROSS MEMBER, UP TO IDENT NO. 695022 EXCEPT FOR,500001-599999
150
ROD ENGINE ALONGSIDE FIXING
150
ROD ENGINE ALONGSIDE FIXING
160
RODTO 345 240 74 25
160
RODTO 302 240 07 25
170
ROD END RIGHT TO 364 240 76 25
170
ROD END LEFT TO 364 240 76 25
170
ROD ENDTO 364 240 01 25
180
CLAMPTO 364 240 76 25
185
SCREW TIE ROD, FROM AXLE 1 2480131 511630
190
LOCK WASHER , Replaced By: N912004010102
195
NUT , UP TO REAR AXLE 154947, FROM REAR AXLE,SEE UNIT MICROFICHE 816,MODEL 743.4
195
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
200
PIVOT PIN ROD END TO TRANSMISSION CASE
205
STUD ROD END TO BRACKET AT SUBSTRUCTURE AND TO BELL HOUSING
210
HEX. NUT. NUT
215
NUT
220
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
