Поз.
Артикул
Описание

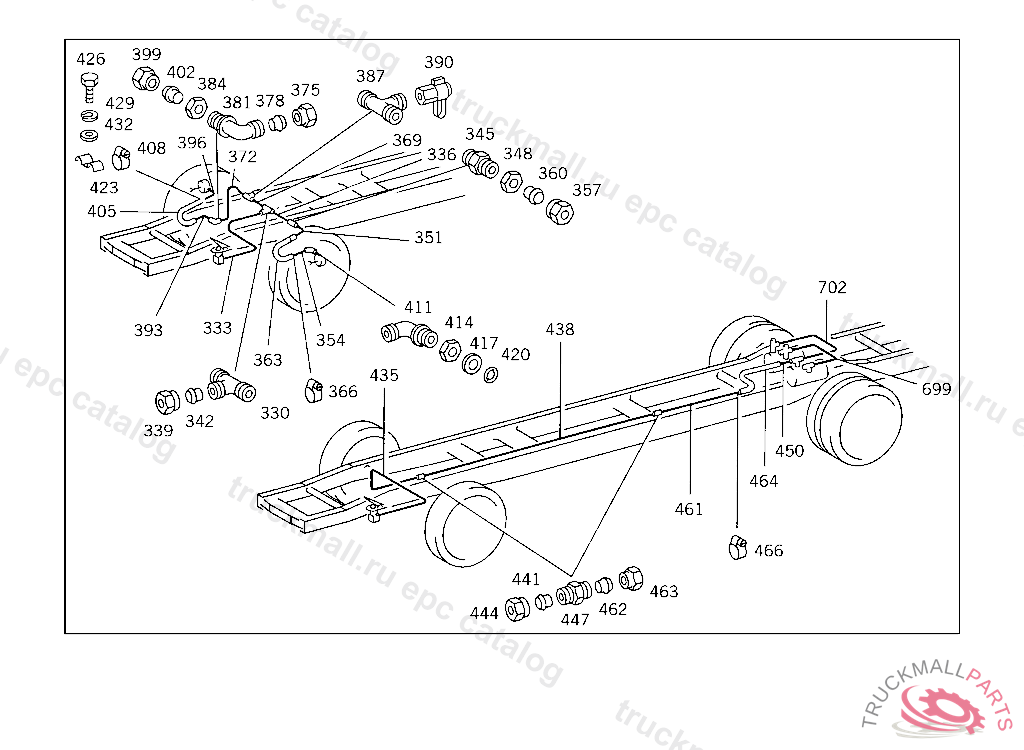

330
T-FITTING , USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
330
T-FITTING , Replaced By: A0009905270
333
LINE FROM BRAKE VALVE,CONNECTION "21",TO T-FITTING
336
LINE FROM T-FITTING TO FITTING
339
UNION NUT LINE CONNECTION, Replaced By: N000000006239
342
GLAND , Replaced By: A0019901967
345
BULKHEAD FITTING FROM BRAKE VALVE,CONNECTION "21",TO FITTING
348
NUT BRACKET TO SIDE MEMBER
351
LINE FROM FITTING TO DIAPHRAGM CYLINDER 12 MM,A 069205
354
LINE LEFT FRONT WHEEL,A 069682
357
UNION NUT LINE CONNECTION, Replaced By: N000000006239
360
GLAND , Replaced By: A0019901967
363
HOSE BRAKE HOSE 430 MM,A 069682
366
CLAMP LINE MOUNTING
369
LINE FROM T-FITTING TO T-FITTING 12 MM
372
LINE FROM T-FITTING TO ELBOW FITTING 12 MM
375
UNION NUT LINE CONNECTION, Replaced By: N000000006239
378
GLAND , Replaced By: A0019901967
381
CONNECTOR THROUGH SIDE MEMBER
381
FITTING , Replaced By: A0009907871
384
NUT BRACKET TO SIDE MEMBER
387
THREADED UNION , Replaced By: A0009905370
387
T-FITTING ,A 072935
390
TEST CONNECTION
390
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
393
LINE FROM FITTING TO DIAPHRAGM CYLINDER 12 MM,A 069205
396
LINE FRONT AXLE,RIGHT,A 069682
399
UNION NUT LINE CONNECTION, Replaced By: N000000006239
402
GLAND , Replaced By: A0019901967
405
HOSE BRAKE HOSE 430 MM,A 069682
408
CLAMP LINE MOUNTING
411
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS,A 069205
411
ELBOW FITTING , Replaced By: A3849907071
411
FITTING ,4 667210
414
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
417
THRUST RING LOCKING VALVE
420
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
423
CLAMP COMPRESSED AIR LINE MOUNTING,A 069681
426
SCREW , Replaced By: N304017006016
429
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
432
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
435
LINE FROM SERVICE BRAKE VALVE TO FITTING
438
LINE FROM DOUBLE FITTING I TO DOUBLE FITTING II
441
GLAND , Replaced By: A0019901967
444
UNION NUT LINE CONNECTION, Replaced By: N000000006239
447
FITTING , Replaced By: A0029906171
447
CONNECTION FITTING , Replaced By: A0049971772
450
LINE FROM DOUBLE FITTING TO BRAKE HOSE
461
LINE FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
462
GLAND , Replaced By: A0019901967
463
UNION NUT LINE CONNECTION, Replaced By: N000000006239
464
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
466
CLAMP LINE MOUNTING
699
LINE FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION "12"
702
LINE FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION "11"
999
PISTONTO 345 431 70 05
999
BRACKET LEFT,DIAPHRAGM CYLINDER
999
BRACKET RIGHT,DIAPHRAGM CYLINDER
999
T-FITTING DIAPHRAGM CYLINDER,CONNECTION "1"
999
LINE FROM PRESSURE SWITCH TO SPRING LOAD ACCUMULATOR CYLINDER
999
GROMMET AIR SPRING VALVE
