Поз.
Артикул
Описание

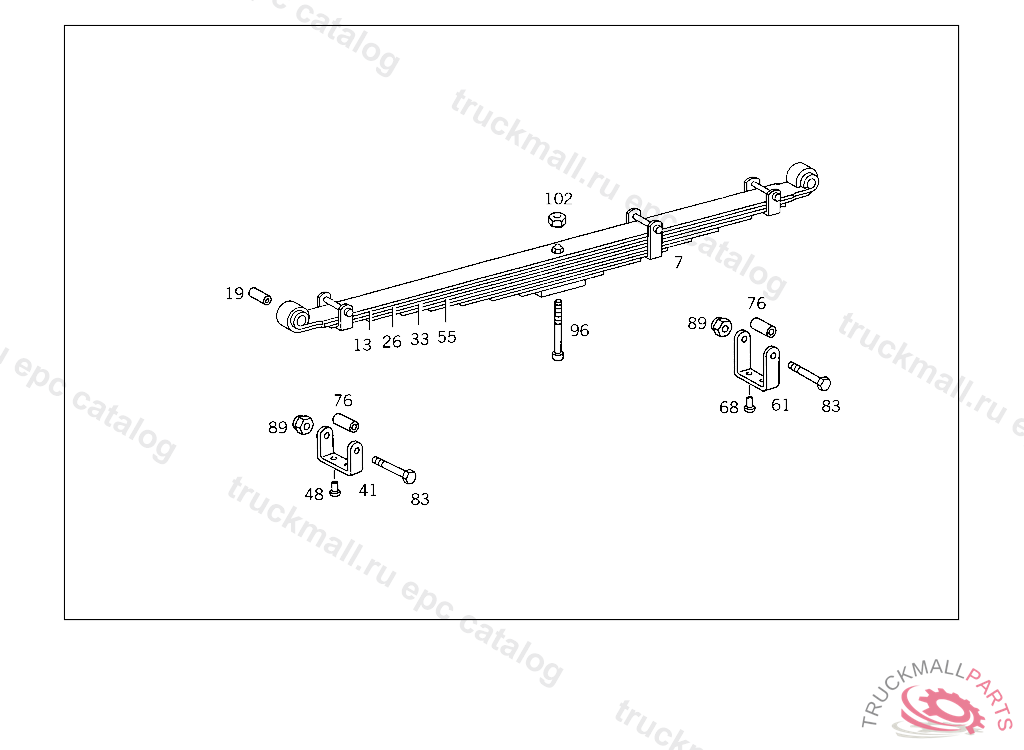

7
FRONT SPRING 9-LEAF
7
FRONT SPRING 9-LEAF
13
SPRING LEAFNO.1
13
SPRING LEAFNO.1
19
BUSHING
19
BUSHING
26
SPRING LEAFNO.2
26
SPRING LEAFNO.2
33
SPRING LEAF WITH SPRING CLAMP NO.3
33
SPRING LEAF WITH SPRING CLAMP NO.3
41
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
48
RIVET , 654576
55
SPRING LEAFNO.4
55
SPRING LEAF LESS SPRING CLAMP NO.4
61
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
68
RIVET , 654576
76
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
76
SPACER TUBE , Replaced By: A0003213253
83
SCREW 3/2-WAY VALVE TO BRACKET
83
SCREW , Replaced By: N304014008009
89
NUT SPRING CLAMP
96
SPRING BOLTM 12X140,4 889187
102
NUT STRAP TO SUPPORT,5 149419
