Поз.
Артикул
Описание

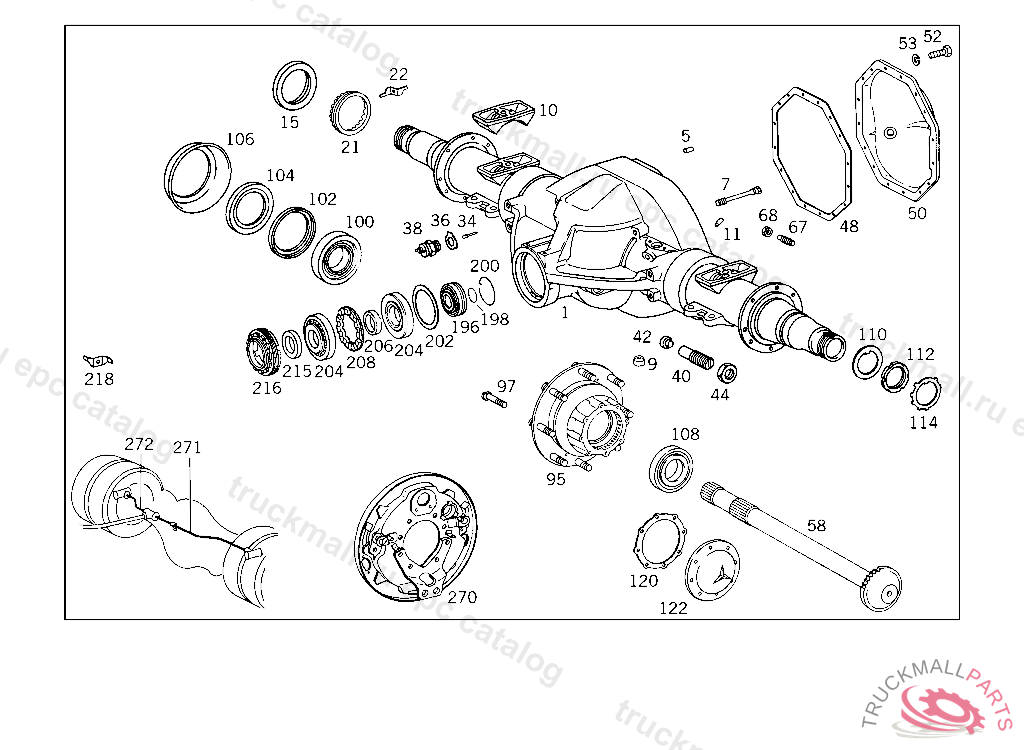

1
AXLE HOUSING WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS
5
CYLINDRICAL PIN RIGHT FRONT
7
SCREW COVER TO REAR AXLE HOUSING
9
PLUG AXLE HOUSING
10
SPRING SADDLE REAR AXLE HOUSING
11
PIN REAR AXLE HOUSING
15
OIL COLLECTOR AXLE HOUSING
21
SCREW COLLAR , Replaced By: A3543530025
21
SCREW COLLAR DIFFERENTIAL GEAR ADJUSTMENT
22
LOCK AXLE HOUSING
34
PIN TWO-SPEED REAR AXLE
36
LOCK TWO-SPEED REAR AXLE
38
SWITCH SOLENOID VALVE
40
SET SCREW , Replaced By: A3853530376, +001A3853530149
40
SET SCREW AXLE HOUSING
42
SLIDE AXLE HOUSING
44
NUT AXLE HOUSING
48
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3833510580
48
GASKET COVER TO DIFFERENTIAL CASE
50
COVER AXLE HOUSING
52
SCREW , Replaced By: N304017010028
52
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
53
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
58
REAR AXLE SHAFT , Replaced By: A3853570901
58
REAR AXLE SHAFT REAR AXLE HOUSING
67
SCREW , Replaced By: A3543510071
67
SCREW (PRESSURE SCREW),BEARING COVER
68
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
95
WHEEL HUB , Replaced By: A3023560201, +008A3274020271
95
WHEEL HUB REAR AXLE
97
WHEEL MOUNTING BOLT
100
TAPERED ROLLER BEARING WHEEL HUB
100
TAPERED ROLLER BEARING REAR AXLE SHAFT
100
TAPERED ROLLER BEARING WHEEL HUB
102
SPACER RING REAR AXLE SHAFT, ELIMINATED,NO LONGER REQUIRED
104
SEAL RING REAR AXLE SHAFT
104
SEAL RING WHEEL BEARING
106
OIL COLLECTOR , Replaced By: A3853560282
106
OIL COLLECTOR WHEEL HUB
108
TAPERED ROLLER BEARING REAR AXLE SHAFT
108
TAPERED ROLLER BEARING REAR AXLE SHAFT
108
TAPERED ROLLER BEARING REAR AXLE SHAFT
110
SPACER WASHER , Replaced By: A3603560052
110
SPACER WASHER WHEEL HUB TO REAR AXLE TUBE
112
NUT , Replaced By: A3853560026
112
GROOVED NUT HUB TO REAR AXLE TUBE
114
LOCK PLATE WHEEL HUB TO REAR AXLE TUBE
120
GASKET , Replaced By: A9433340080
120
GASKET HUB CAP TO WHEEL HUB
122
HUB CAP FRONT WHEEL HUB
196
CYLINDR. ROLLER BEARING PINION,INSIDE
196
CYLINDR. ROLLER BEARING PINION,INSIDE
196
CYLINDR. ROLLER BEARING PINION,INSIDE
198
SNAP RING DRIVE PINION
200
SNAP RING REAR AXLE HOUSING
202
SPACER WASHER DRIVE PINION 0.10 MM
202
SPACER WASHER AS REQUIRED 0.20 MM
202
SPACER WASHER AS REQUIRED 0.50 MM
204
TAPERED ROLLER BEARING , UP TO REAR AXLE 021604
204
TAPERED ROLLER BEARING , UP TO REAR AXLE 021604
204
TAPERED ROLLER BEARING OUTSIDE, FROM REAR AXLE 021605
204
TAPERED ROLLER BEARING OUTSIDE, FROM REAR AXLE 021605
204
TAPERED ROLLER BEARING DRIVE PINION,ON FLANGE END, FROM REAR AXLE 021605
204
TAPERED ROLLER BEARING DRIVE PINION,ON FLANGE END, FROM REAR AXLE 021605
206
SPACER RING DRIVE PINION, UP TO REAR AXLE 021604
206
SPACER RING DRIVE PINION
208
SPACER WASHER AS REQUIRED 8.80 MM, UP TO REAR AXLE 021604
208
SPACER WASHER AS REQUIRED 8.86 MM, UP TO REAR AXLE 021604
208
SPACER WASHER AS REQUIRED 9.38 MM, UP TO REAR AXLE 021604
208
SPACER WASHER DRIVE PINION 6.80 MM, FROM REAR AXLE 021605
208
SPACER WASHER AS REQUIRED 6.86 MM, FROM REAR AXLE 021605
208
SPACER WASHER AS REQUIRED 6.88 MM, FROM REAR AXLE 021605
208
SPACER WASHER6.92 MM, 021605
208
SPACER WASHER AS REQUIRED 6.94 MM, FROM REAR AXLE 021605
208
SPACER WASHER6.96 MM, 021605
208
SPACER WASHER6.98 MM
208
SPACER WASHER7.04 MM, 021605
208
SPACER WASHER AS REQUIRED 7.10 MM, FROM REAR AXLE 021605
208
SPACER WASHER DRIVE PINION 7.16 MM, FROM REAR AXLE 021605
208
SPACER WASHER7.22 MM
208
SPACER WASHER AS REQUIRED 7.28 MM, FROM REAR AXLE 021605
208
SPACER WASHER AS REQUIRED 7.32 MM, FROM REAR AXLE 021605
208
SPACER WASHER7.34 MM
208
SPACER WASHER7.40 MM, 021605
215
THRUST WASHER , Replaced By: A3853531062
215
THRUST WASHER DRIVE PINION
216
SCREW COLLAR DRIVE PINION TO RAER AXLE HOUSING
218
LOCK AXLE HOUSING
270
BRAKE ANCHOR PLATE , Replaced By: A3024204217
270
BRAKE ANCHOR PLATE LEFT
271
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
271
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1150 MM
272
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
272
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
999
DIFFERENTIAL PINION FOLLOWER TO DRUM HUB TO A 385 335 00 15
999
HUB PLANETARY GEAR TRAIN,3132488
999
SCREW , Replaced By: A3839900801
999
RING GEAR AND PINION , Replaced By: A3013500739
999
RING GEAR AND PINION RATIO 7:40, 797910
999
SIDE GEAR , Replaced By: A3543530015
999
LEVER RIGHT,2 068749
999
LEVER LEFT,2 068749
999
THRUST RING LEFT AND RIGHT
999
REAR AXLE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3523500401
999
REAR AXLE RATIO: 8:39, FROM CHASSIS 637763 AND FROM REAR AXLE 015745
999
REAR AXLE RATIO:, UP TO CHASSIS 637762 AND UP TO REAR AXLE 015744
999
AXLE HOUSING , Replaced By: A3583500620
999
LOCK , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE 3 132029, Replaced By: A3279940115
999
THRUST RING RIGHT
999
THRUST RING , Replaced By: A3523560515
999
THRUST WASHER , Replaced By: A3273533762
999
THRUST WASHER , Replaced By: A3273533662
999
THRUST WASHER , Replaced By: A3273533462
999
SIDE GEAR , Replaced By: A3543530015
999
THRUST WASHER , Replaced By: A3273533262
999
SCREW , Replaced By: N000960018062
999
BRAKE ANCHOR PLATE RIGHT
999
BRAKE ANCHOR PLATE , Replaced By: A3024204117
999
SIDE GEAR
999
SIDE GEAR , Replaced By: A3453537315
999
TAPERED ROLLER BEARING DRIVE PINION,ON PINION END
999
TAPERED ROLLER BEARING DRIVE PINION,ON PINION END, FROM REAR AXLE 021605
999
CYLINDR. ROLLER BEARING , Replaced By: A0009819701
999
NEEDLE , Replaced By: A3559810187
