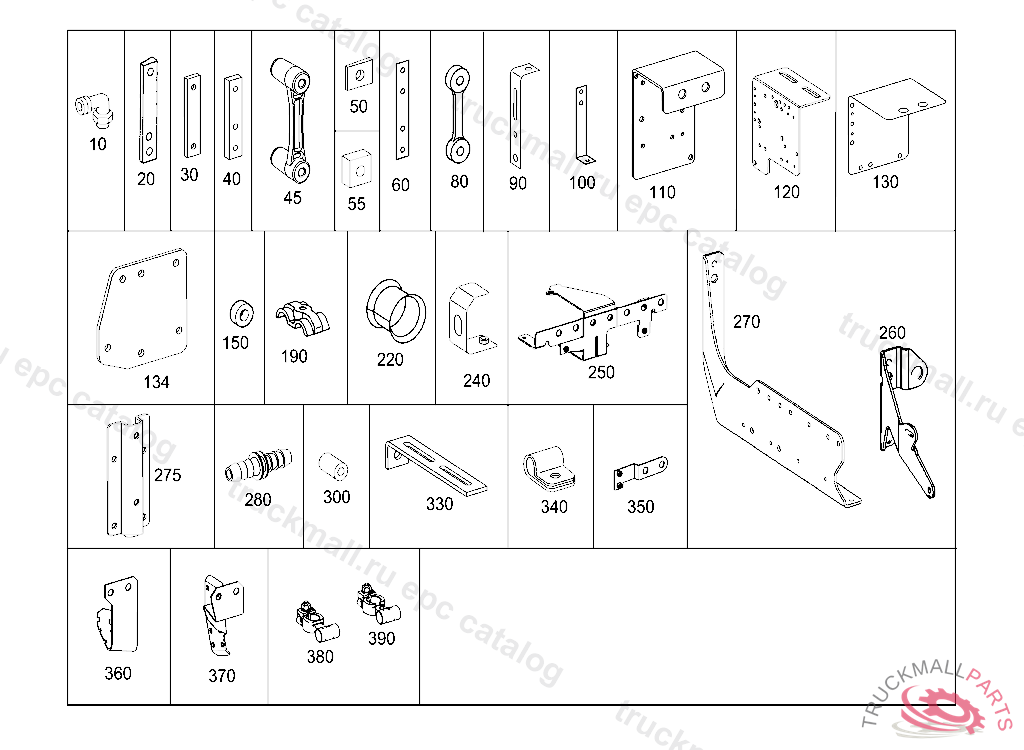

Поз.
Артикул
Описание
10
ELBOW FITTING LINE CONNECTION
20
SHIM MOUNTING PARTS
30
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 4 MM
30
SHIM MOUNTING PARTS 10 MM
30
SHIM MOUNTING PARTS 15MM
30
SHIM MOUNTING PARTS 20MM
30
SHIM MOUNTING PARTS 30MM
30
SHIM MOUNTING PARTS 10 MM
40
SHIM MOUNTING PARTS 10 MM
45
SHIM FUEL TANK TO FRAME 90MM
50
PAD BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
55
BASE BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
60
PAD LATERAL UNDERRUN PROTECTION
60
SHIM MOUNTING PARTS 10 MM,NO.1457IIIII I
80
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 24MM
80
SHIM APPARATUS SUPPORT TO FRAME SIDE MEMBER 31MM
90
BRACKET LINE MOUNTING
100
BRACKET LINE MOUNTING, INO.1457 IIII I
100
CONSOLE BATTERY CABLE TO SIDE MEMBER
110
BRACKET MOUNTING PARTS
110
BRACKET MOUNTING PARTS
120
BRACKET MOUNTING PARTS
130
BRACKET ENERGY DISTRIBUTOR
130
BRACKET MOUNTING PARTS
134
BRACKET BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
150
BUSHING MOUNTING PARTS, Replaced By: A6624751650
150
SPACER TUBE MOUNTING PARTS, Replaced By: A4182420050
150
SPACER TUBE MOUNTING PARTS
150
BUSHING MOUNTING PARTS
150
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
190
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
190
CLAMP ELECTRIC CABLE MOUNTING
220
GROMMET LINE THRU FRAME
220
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
240
BRACKET BATTERY CABLE TO SIDE MEMBER
250
BRACKET BATTERY CUT-OFF SWITCH ON SIDE FRAME MEMBER
260
BRACKET LEFT LATERAL UNDERRUN PROTECTION
260
BRACKET SIDE PROTECTION DEVICE
270
SUPPORT UNDERRUN PROTECTION,LEFT
270
SUPPORT UNDERRUN PROTECTION,RIGHT
275
BRACKET RESERVOIR
280
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 6 MM
280
CONNECTOR LINE CONNECTION
280
CONNECTION FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9MM/9MM
280
CONNECTOR
300
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 508030
300
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
300
BUSHING50X17X80MM
300
BUSHING MOUNTING PARTS, Replaced By: A4182420050
300
BUSHING MOUNTING PARTS, Replaced By: A6753220650
330
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
340
CLAMP LINE MOUNTING
350
BRACKET BATTERY CABLE TO SIDE MEMBER
360
BRACKET AT SIDE MEMBER
370
BRACKET REAR COMPRESSED AIR LINE TO SIDE MEMBER
380
SOLDERING TERMINAL POS. POLE EURO, 50MM2
390
SOLDERING TERMINAL NEG.POLE EURO, 50MM2
