Поз.
Артикул
Описание

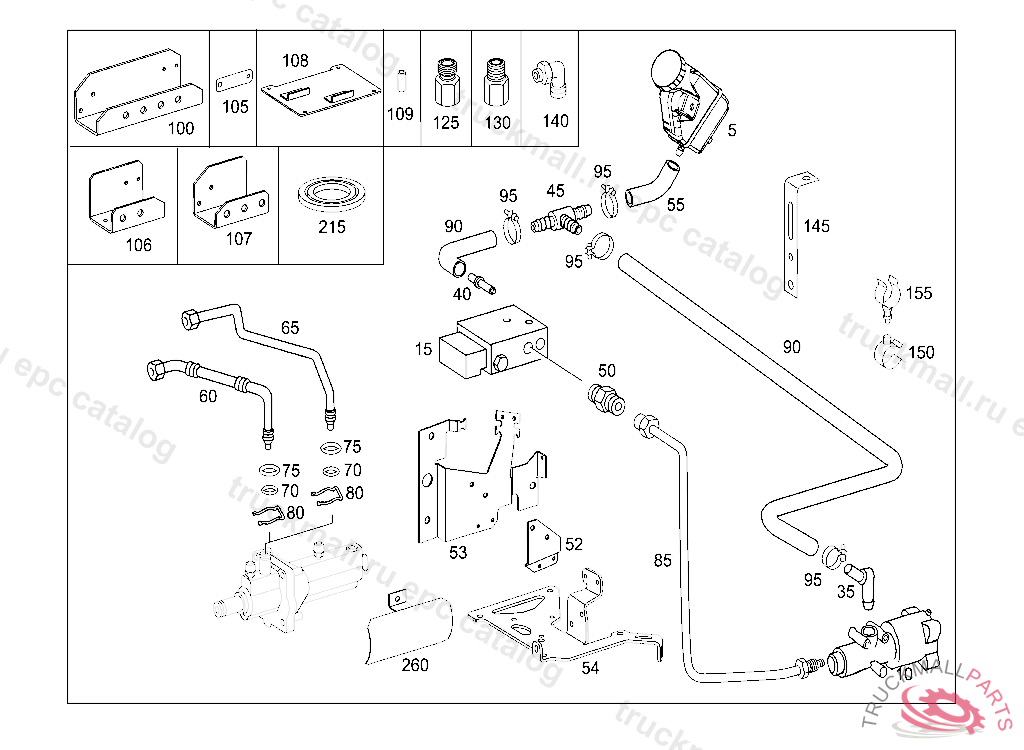

5
RESERVOIR EXPANSION TANK
5
RESERVOIR EXPANSION TANK
10
CLUTCH MASTER CYLINDER RESERVOIR ON MASTER CYLINDER
10
CLUTCH MASTER CYLINDER CLUTCH REMOTE CONTROL
15
CONTROL UNIT CLUTCH REMOTE CONTROL, FOR COMPONENT PARTS SEE SPARE PARTS LIST
15
CONTROL UNIT CLUTCH REMOTE CONTROL
35
INTERMEDIATE PIECE
40
INTERMEDIATE PIECE HYDRAULIC LINE TO MASTER CYLINDER
45
DISTRIBUTOR FROM REFILLING LINE TO HOSE
45
T-FITTING BREATHER LINE
50
FITTING
50
FITTING DELIVERY LINE TO PUMP
52
BRACKET SHIFT MECHANISM
53
BRACKET CONTROL UNIT ANS BRAKE MASTER CYLINDER AT FRAME
54
BRACKET CONTROL UNIT ANS BRAKE MASTER CYLINDER AT FRAME
55
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
55
HOSE EXPANSION RESEVOIR AT DISTRIBUTOR
60
PIPE FROM ELBOW FITTING FRAME TO AMPLIFIER
65
PIPE FROM ELBOW FITTING FRAME TO AMPLIFIER
70
SEAL RING LINE CONNECTION 6.07X1.78MM
75
SEAL RING LINE CONNECTION 10.82X1.68MM
80
LOCK CLUTCH HOSE
80
LOCK CLUTCH HOSE
85
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 400 MM, TO BE ADAPTED DURING ASSEMBLY
85
PIPE CONTROL UNIT TO CLUTCH BOOSTER
85
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
90
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
90
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
90
HOSE REFILLING LINE 210MM
95
HOSE CLAMP HOSE FASTENING 9/13MM
100
BRACKET MOUNTING PARTS
105
BRACKET MOUNTING PARTS
106
BRACKET MOUNTING PARTS
107
BRACKET MOUNTING PARTS
108
BRACKET MOUNTING PARTS
109
INTERMEDIATE PIECE MOUNTING PARTS
125
CONNECTOR LINE CONNECTION 8/F1/4"
130
CONNECTOR LINE CONNECTION FM14X150/M1/4"
140
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
140
FITTING FROM PUMP TO CYLINDER
140
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
145
BRACKET LINE MOUNTING
150
CLAMP BRAKE HOSE
155
CLAMP , Replaced By: A0005465143
215
SEAL RINGD24MM
215
SEAL RINGD22MM
260
PROTECTIVE PLATE FUEL TANK
999
FITTING LINE CONNECTIONS FG1/4
999
FITTING LINE CONNECTIONS FG1/4
999
FITTING LINE CONNECTIONS DN8
999
FITTING LINE CONNECTIONS 1DL/DS8
999
FITTING LINE CONNECTIONS 4DL8-1/4RNU
