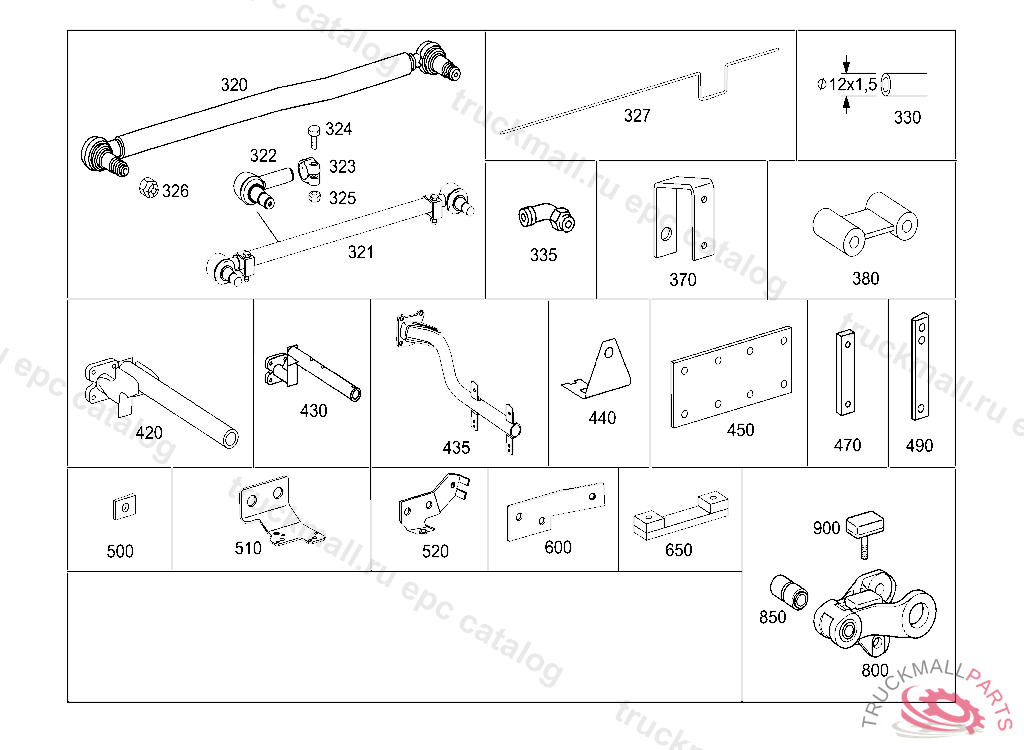

Поз.
Артикул
Описание
320
DRAG LINK FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II, REPAIR IMPOSSIBLE
320
DRAG LINK FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II, REPAIR IMPOSSIBLE, Replaced By: A6624603905
321
DRAG LINK FROM STEERING INTERMEDIATE BRACKET II TO FRONT AXLE II
322
DRAG LINK END R.H. THREAD
322
BALL JOINT L.H. THREAD
323
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER, TO 002 460 14 05, 15 05,K 226468
324
SCREW STRUT TO FRAME M 12X62
325
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
326
NUT DRAG LINK TO LEVER
327
LINE TO HP-HOSE "A,B,C,D", TO BE ADAPTED DURING ASSEMBLY
330
TUBE FROM HIGH PRESSURE HOSE TO STEERING
330
LINE , Replaced By: A0005516156
335
ELBOW FITTING DELIVERY LINE TO PUMP
370
BRACKET AT SIDE MEMBER
380
PLATE MOUNTING PARTS
380
PLATE MOUNTING PARTS
380
PLATE MOUNTING PARTS 82MM/90MM
380
PLATE MOUNTING PARTS 90MM/90MM
420
SUPPORT (CONSOLE),FOR FENDER,LEFT
430
SUPPORT LEFT FRONT FENDER
430
SUPPORT FENDER
435
SUPPORT RIGHT FRONT FENDER
440
BRACKET LINE MOUNTING
450
BRACKET MOUNTING PARTS
470
SHIM MOUNTING PARTS 12MM
470
SHIM MOUNTING PARTS 5MM
490
SHIM MOUNTING PARTS
490
SHIM MOUNTING PARTS, Replaced By: A6624752684
490
SHIM MOUNTING PARTS, Replaced By: A6624752684
500
PAD MOUNTING PARTS
500
PAD BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
510
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER
510
BRACKET COMPRESSED AIR LINE TO RIGHT SIDE MEMBER
520
BRACKET BATTERY CABLE TO TRANSMISSION, Replaced By: A9415401540
520
BRACKET BATTERY CABLE TO TRANSMISSION
600
BRACKET BATTERY CABLE TO TRANSMISSION
650
CONSOLE MOUNTING PARTS
800
SWIVELLING LEVER FRONT LEFT
850
BEARING
900
RUBBER BUFFER AXLE STOP
