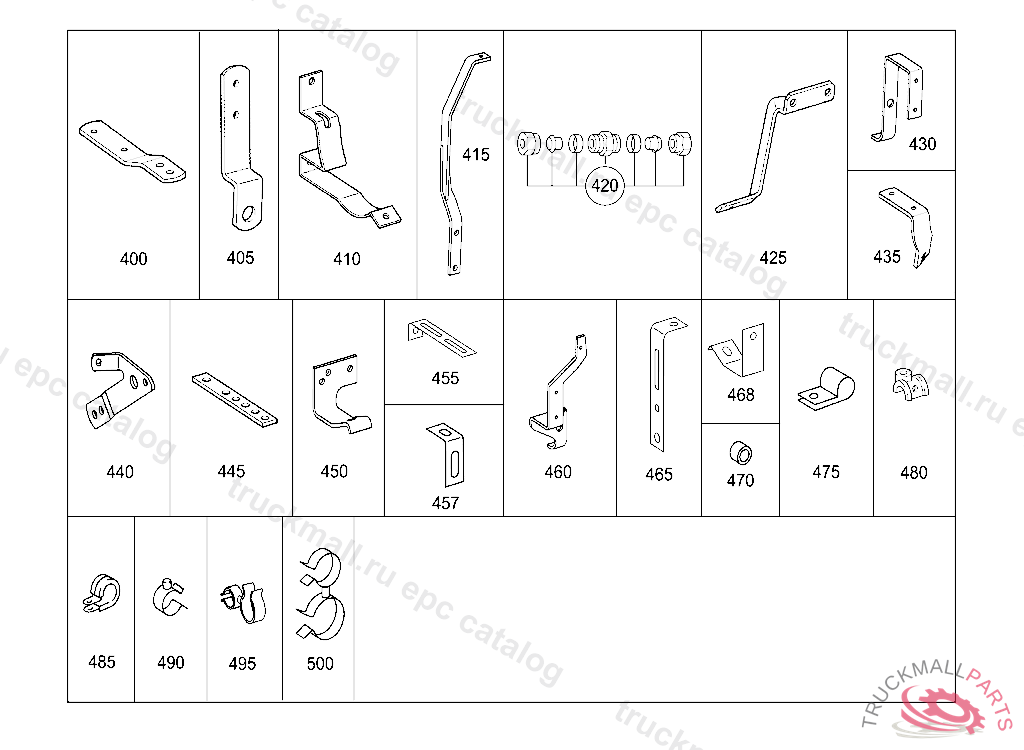

Поз.
Артикул
Описание
400
BRACKET BRACKET TO ENGINE SUPPORT
405
BRACKET MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
410
BRACKET BRACKET TO ENGINE SUPPORT
415
BRACKET BRACKET TO TIMING CASE
420
FITTING (PARTS KIT),LINE RUPTURE
425
BRACKET BRACKET TO STEERING BRACKET
430
BRACKET AT SIDE MEMBER
435
SUPPORT LEFT BEARING BRACKET
440
BRACKET ON ENGINE SUPPORT
445
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
445
SHIM STRUT TO CROSS MEMBER
450
BRACKET LINE MOUNTING
455
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
457
BRACKET LINE MOUNTING, Replaced By: A6205420340
457
BRACKET LINE MOUNTING, Replaced By: A6205420340
457
BRACKET LINE MOUNTING, Replaced By: A6205420340
457
BRACKET LINE MOUNTING
457
BRACKET FUEL LINES TO TRANSMISSION
460
BRACKET MOUNTING PARTS
465
BRACKET LINE MOUNTING
468
BRACKET LINE MOUNTING
470
SPACER TUBE SWITCH TO ENGINE
475
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
475
PIPE CLAMP LINE MOUNTING 15-20MM, Replaced By: A0019958002
475
CLAMP LINE MOUNTING
475
CLAMP LINE MOUNTING
475
CLAMP LINE MOUNTING
475
CLAMP , Replaced By: A6739950001
475
PIPE CLAMP LINE MOUNTING 15-20MM
475
CLAMP DELIVERY AND SUCTION LINES TO STEERING
480
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
485
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
490
CLAMP BRAKE HOSE
495
CLAMP HOSE FASTENING
500
CLAMP HOSE FASTENING
500
SPACER. CLAMP
500
SPACER. CLAMP
