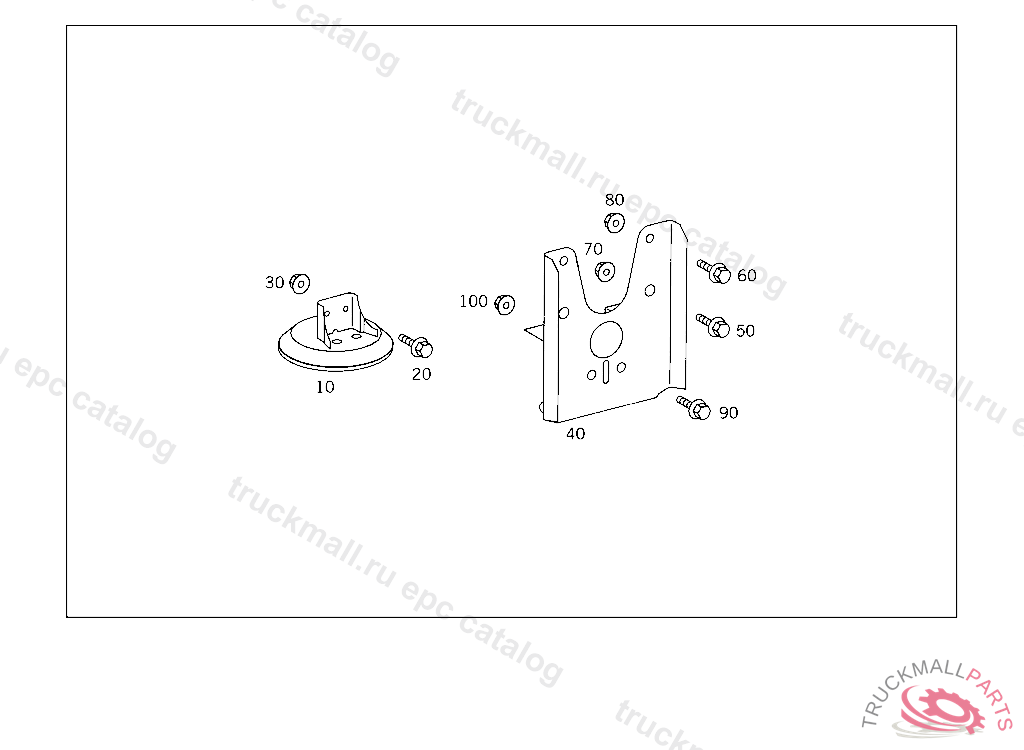

Поз.
Артикул
Описание
10
PLATE AIR SPRING BELLOWS TO SUBSTRUCTURE
20
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
30
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
40
BRACKET PLATE TO FRAME
40
BRACKET PLATE TO FRAME
50
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M18X1.5X45
60
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
70
NUT RETARDER HOUSING TO TRANSMISSION CASE
80
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
90
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
100
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
