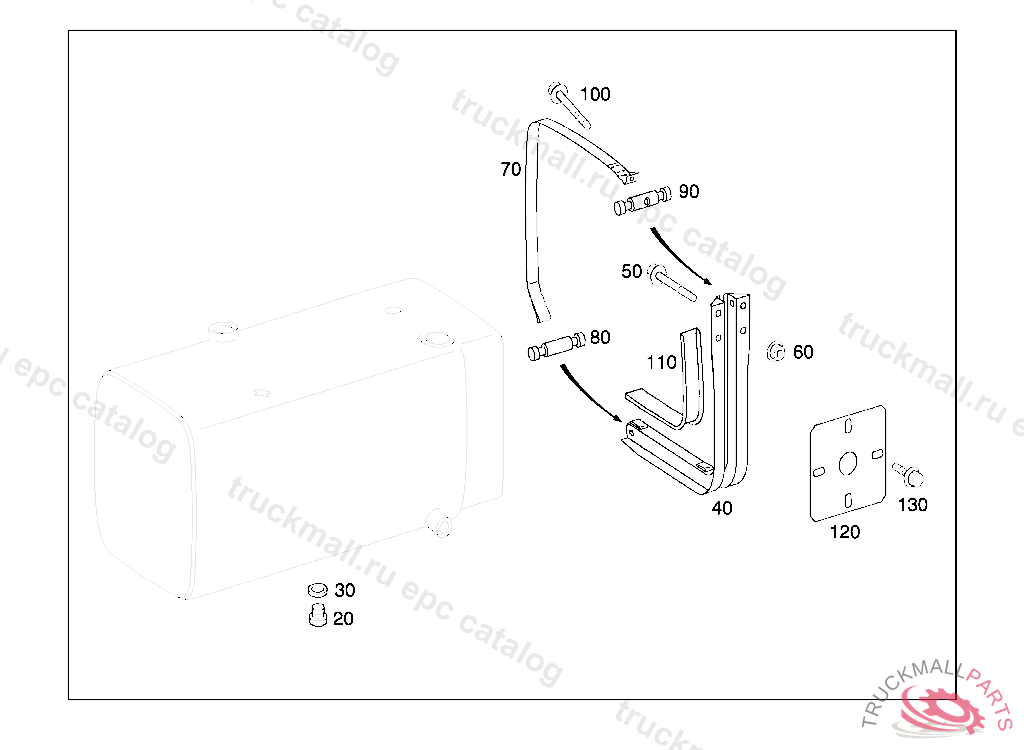

Поз.
Артикул
Описание
20
SCREW PLUG FUEL TANK
30
SEAL RING CLUTCH BOOSTER
40
SUPPORT FUEL TANK TO FRAME
40
SUPPORT FUEL TANK TO FRAME
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
50
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
60
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
70
STRAP FUEL TANK TO CONSOLE
80
PIN STRAP TO SUPPORT 16X80 MM
90
PIN STRAP TO SUPPORT 25X80 MM
100
SCREW SHIM TO BRACKET
110
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
120
PLATE MOUNTING PARTS 5 MM
130
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
999
FUEL TANK TO BE MOUNTED ON THE RIGHT 360 L + 230 L
