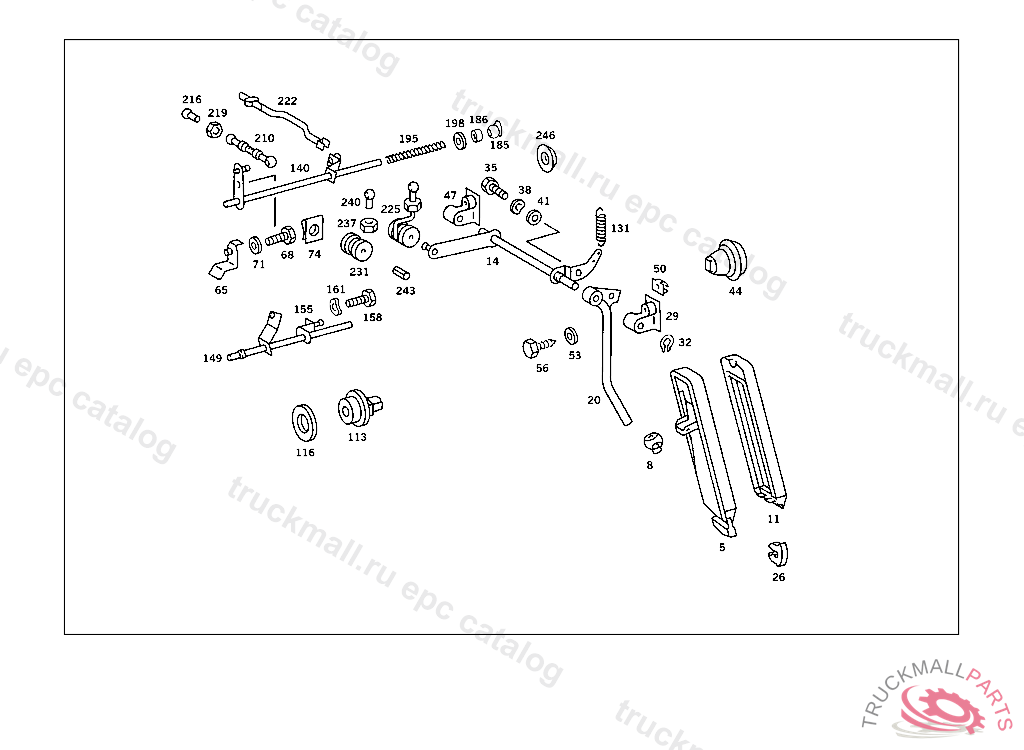

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
JOINT ,B 859430
11
PAD , Replaced By: A1233000204
11
ACCELERATOR PEDAL
11
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
14
SHAFT
20
LEVER
26
BRACKET , Replaced By: A1249888678
26
CLIP
29
BEARING
32
LOCK RING
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
SCREW , Replaced By: N304017008016
38
SPRING WASHER , Replaced By: N000137008212
38
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
41
WASHER , Replaced By: N000125008443
41
WASHER EXHAUST MUFFLER TO STRAP
44
GROMMET
47
BEARING
50
CLIP PRE-GLOW TIME RELAY TO COWL
53
WASHER COMPRESSED AIR LINE TO BRACKET
56
SHEET METAL SCREW
113
STOP
116
SEAL RING KICK-DOWN SWITCH
131
SPRING
158
SCREW , Replaced By: N304017006018
158
SCREW COVER PLATE TO COVER PLATE M 6 X 12
161
SPRING WASHER LICENSE PLATE TO BRACKET
185
RUBBER BUFFER
185
JOINT BALL , Replaced By: A1263010485, +001A1163010150
186
BUSHING
195
SPRING
198
SPACER RING CONTROL SHAFT TO ENGINE
225
ROD , 023 003663 024 000331 043 009003 044 007622
231
DAMPING RING , 023 003663 024 000331 043 009003 044 007622
237
NUT TACHOGRAPH TO BRACKET
240
CONICAL CUPTO 102 070 09 75
240
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
240
BALL SOCKET , Replaced By: A0009918922
243
BUSHING
246
EXPANSION PLUG
