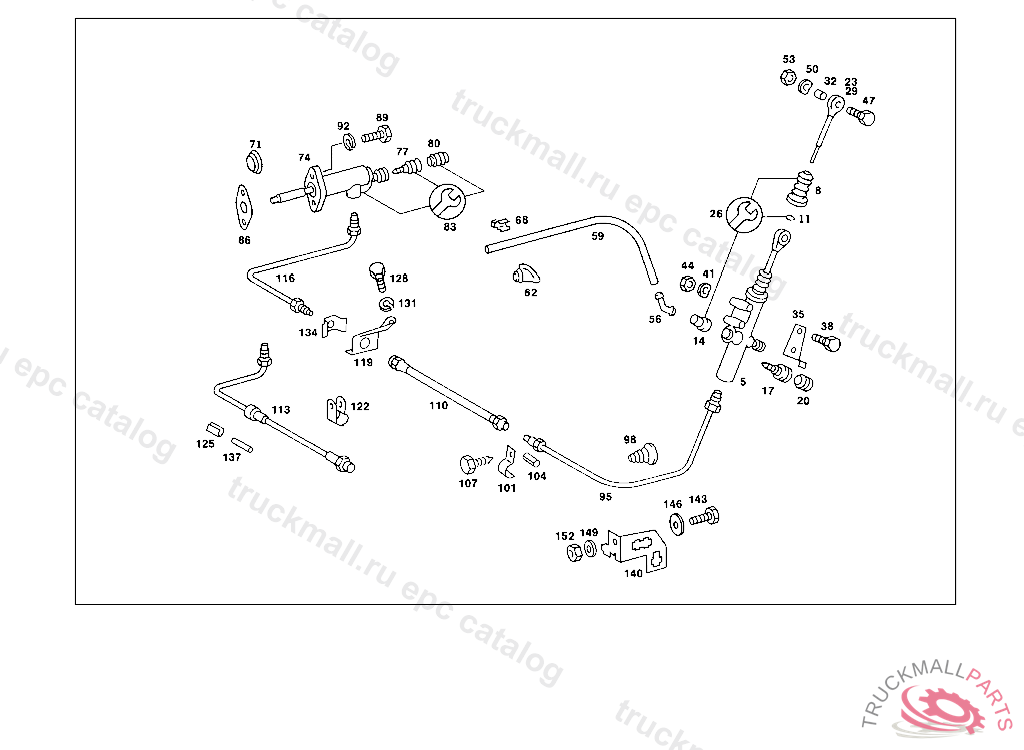

Поз.
Артикул
Описание
5
MASTER CYLINDER , 077222
5
MASTER CYLINDER , Replaced By: A0012951506
5
MASTER CYLINDER , Replaced By: A0002957706
5
MASTER CYLINDER , Replaced By: A0012958706
5
MASTER CYLINDER , Replaced By: A0002957706
8
BOOT
11
SNAP RING
14
CONNECTOR
17
BLEEDER VALVE
20
PROTECTIVE CAP , Replaced By: A0004217187
20
PROTECTIVE CAP ,5 962906
26
REPAIR KITTO 000 295 60 06, UP TO CHASSIS: 000,002,010 095793 015 116925 100,102,103,110,112 246726 115 123531
26
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866
29
ROD
32
BUSHING
35
STOP
38
SCREW , Replaced By: N304014006004
38
SCREW BRACKET TO CROSS MEMBER
41
SPRING WASHER LICENSE PLATE TO BRACKET
44
NUT BATTERY MOUNTING
44
NUT CYLINDER TO BRACKET TO0002902112
47
SCREW , Replaced By: N304017008016
47
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SPRING WASHER , Replaced By: N000137008212
50
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
53
NUT PRIMARY PUMP TO CONVERTER HOUSING
53
NUT ROD TO LEVER,526440
53
SCREW , UP TO CHASSIS: 023 101126 072 103733 073 106943, Replaced By: A1152950172, +001N000137008202, +001N000933008131
56
INTERMEDIATE PIECE
59
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
62
GROMMET
68
CLIP TRIMMER PLUG
71
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
74
SLAVE CYLINDER
74
SLAVE CYLINDER , 023 011021 043 012435, Replaced By: A0002959507
80
PROTECTIVE CAP ,5 962906
80
PROTECTIVE CAP , Replaced By: A0004217187
83
REPAIR KIT SLAVE CYLINDER TO 000 295 61 07,000 295 95 07
86
GASKET
89
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
89
SCREW , Replaced By: N304017008027
92
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
LINE FROM MASTER CYLINDER TO HOSE
95
LINE , Replaced By: A1093207753
95
LINE FROM MASTER CYLINDER TO HOSE, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR, SEE FOOTNOTE3, ALSO INSTALLED ON 099892 TO BE ADAPTED DURING ASSEMBLY
98
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
101
CLAMP
104
HOSE30 MM, ORDER BY THE METER
107
SCREW
110
HOSE , 016 FROM CHASSIS 027623, ALSO INSTALLED ON, SEE GROUP 22/24, FOOTNOTE 6, 018 FROM CHASSIS 028986, ALSO INSTALLED ON, SEE GROUP22/24, FOOTNOTE 7, 019 FROM CHASSIS 029326
116
LINE
116
LINE , Replaced By: A1093207753
116
LINE , Replaced By: A1123205553
119
BRACKET PIPE LINE TO BELL HOUSING, 071355
128
SCREW , Replaced By: N304017008016
128
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
131
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
134
LOCK HYDRAULIC LINE TO CAB
999
LOCK
999
BOOT KUGELFISCHER
