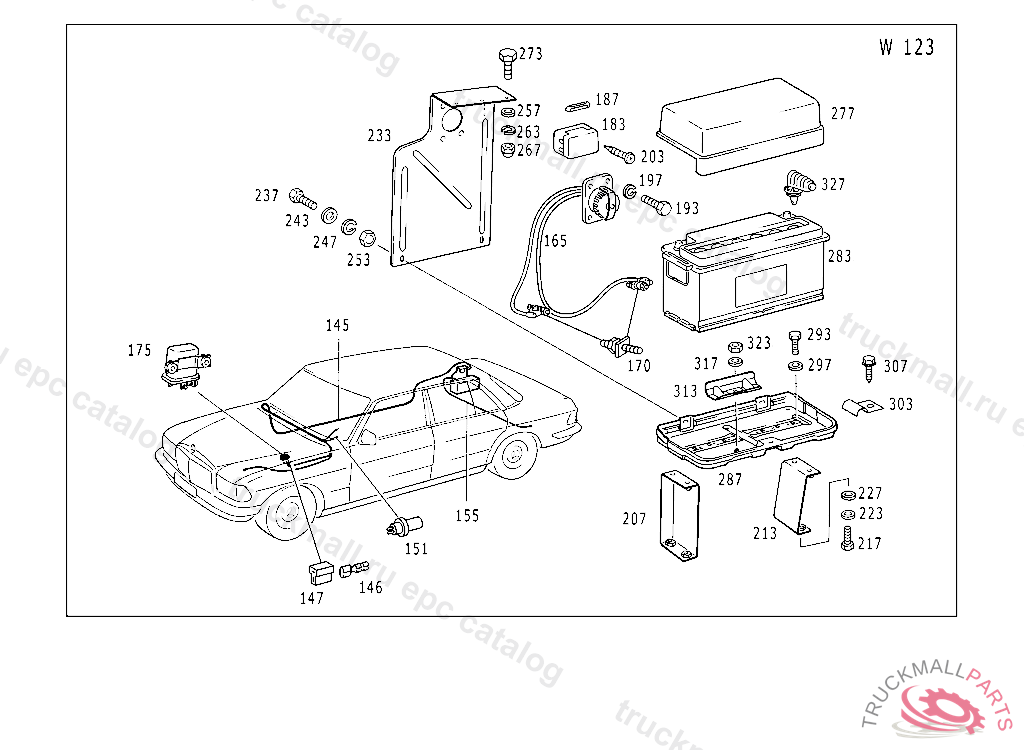

Поз.
Артикул
Описание
145
ELECTRIC CABLE FROM RELAY TO BATTERY II IN LUGGAGE COMPARTMENT
147
PIN BUSHING HOUSING BIPOLAR
151
SOCKET CHARGE CONTROL
155
ELECTRIC CABLE FROM BATTERY GROUND TO GROUND POINT IN LUGGAGE COMPARTMENT
165
ELECTRIC CABLE FROM BATTERY TO CHARGING PLUG SOCKET IN LUGGAGE COMPARTMENT
170
PIN BATTERY POS. POLE
175
RELAY ,123 A 089366
183
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
187
FUSEA16
193
SCREW LICENSE PLATE TO BRACKET
197
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
203
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
207
BRACKET REAR,BETWEEN LUGGAGE COMPARTMENT FLOOR AND BATTERY FRAME
213
BRACKET FRONT,BETWEEN LUGGAGE COMPARTMENT FLOOR AND BATTERY FRAME
217
SCREW PUMP TO BRACKET
223
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
227
SEAL RING
233
REINFORCEMENT
237
SCREW COVER PLATE TO COVER PLATE M 6 X 12
243
WASHER COMPRESSED AIR LINE TO BRACKET
247
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
253
NUT BALL PIVOT TO LEVER
257
WASHER COVERING TO CYCLONE AIR TRAP
263
LOCK WASHER T-FITTING TO BRACKET
267
CAP NUT REINFORCEMENT TO REAR FENDER
273
SCREW REINFORCEMENT TO REAR FENDER
277
COVERING
283
BATTERY
287
FRAME
293
SCREW COVER PLATE TO BRACKET
297
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
303
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
307
SHEET METAL SCREW
313
RAIL BATTERY
317
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
323
NUT BALL PIVOT TO LEVER
327
VENT
