Поз.
Артикул
Описание

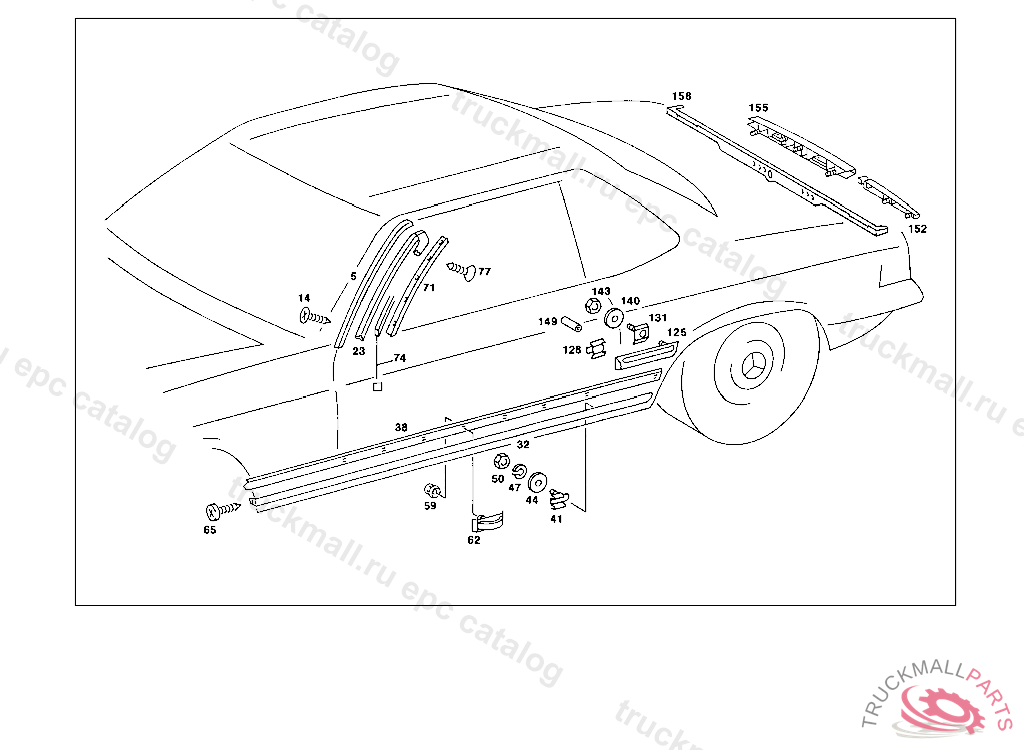

41
SCREW
44
WASHER , Replaced By: N009021004207
44
WASHER COVERING TO CYCLONE AIR TRAP
47
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
47
LOCK WASHER T-FITTING TO BRACKET
50
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
62
FASTENER BUTTON
65
SHEET METAL SCREW
74
PAD , Replaced By: A1266980698
74
SEAL , Replaced By: A1266981898
74
SEAL , Replaced By: A1266980598
74
SEAL DRIP MOULDING
77
SHEET METAL SCREW
77
SHEET METAL SCREW COVERING TO HOUSING
128
CLIP
131
SCREW
140
WASHER COVERING TO CYCLONE AIR TRAP
140
WASHER , Replaced By: N009021004207
143
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
149
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
152
GARNISH MOULDING RIGHT
152
GARNISH MOULDING LEFT
155
GARNISH MOULDING , STANDARD VERSION FROM CHASSIS 022 006132 023 012983 024 024514 026 000428 042 005114 043 014030 044 051686 CENTRAL LOCKING MECHANISM FROM CHASSIS 022 006066 023 012956 024 024230 026 000391 042 005053 043 013991 044 051356
158
PAD
