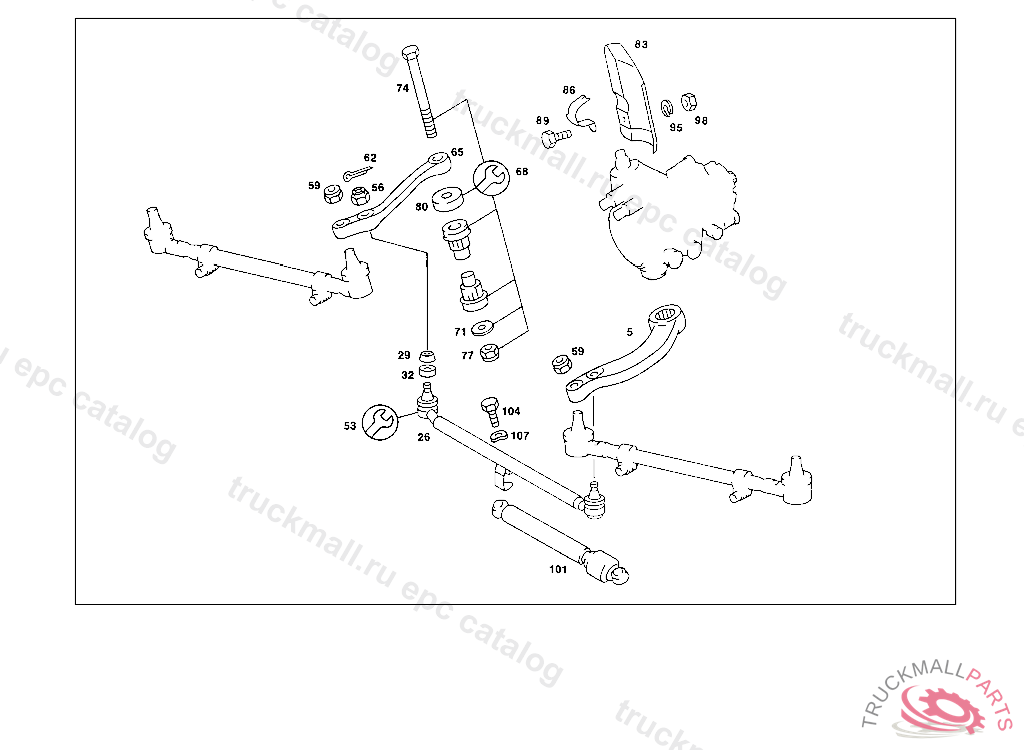

Поз.
Артикул
Описание
5
PITMAN ARM
5
PITMAN ARM
26
DRAG LINK
26
DRAG LINK , Replaced By: A1074600605, +002N913002010010
53
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP., 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678
56
NUT
59
NUT BRACKET TO CROSS MEMBER
62
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
65
STEERING INTERMEDIATE ARM
65
STEERING INTERMEDIATE ARM
68
REPAIR KIT , Replaced By: A1264600819
68
INTERMEDIATE LEVER REPAIR KIT
71
SPACER WASHER , Replaced By: A1244630077
71
WASHER
71
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
74
SCREW SHOCK ABSORBER TO TOP BRACKET
77
NUT COMBINATION CYLINDER TO BEARING BRACKET
77
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
80
DUST CAP
83
PROTECTIVE PLATE
83
PROTECTIVE PLATE , 016 FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 21, 018 FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 22, 019 FR OM CHASSIS 029326
86
BRACKET
86
BRACKET ,F 160210, Replaced By: A2014630540, +001N914128006301
89
SCREW PUMP TO BRACKET
89
SCREW COVER PLATE TO BRACKET
95
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
98
NUT BATTERY MOUNTING
98
NUT CYLINDER TO BRACKET TO0002902112
101
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
104
SCREW , Replaced By: N308676010023
104
SCREW , Replaced By: N000961010031
