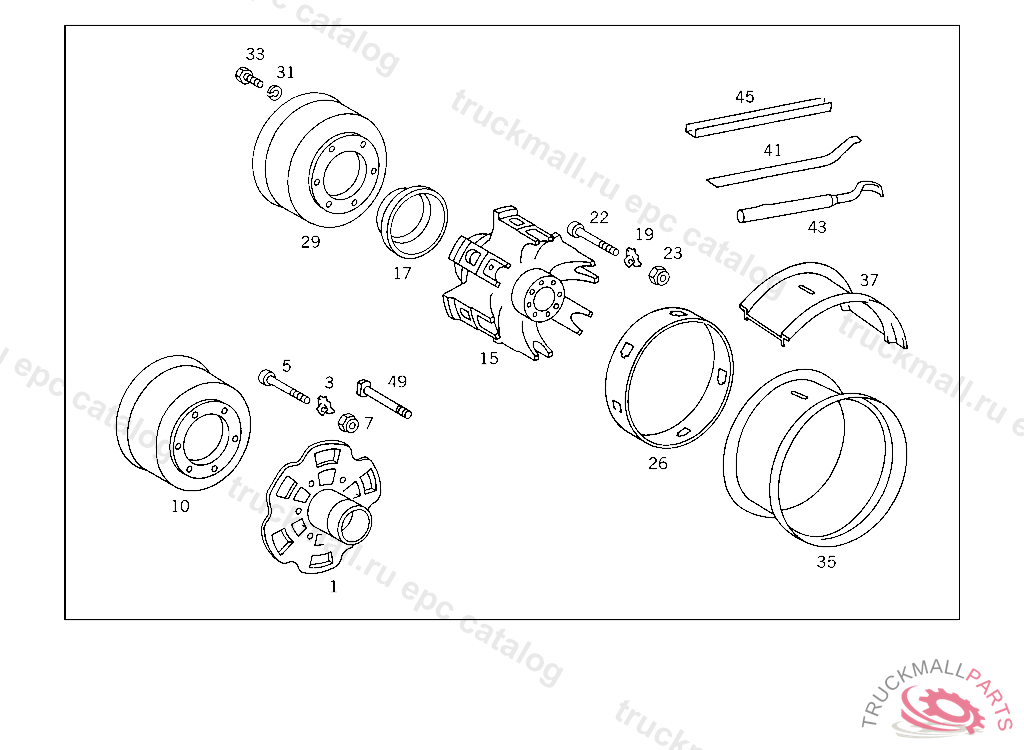

Поз.
Артикул
Описание
1
WHEEL SPIDER FRONT WHEEL
3
CLAMPING PLATE TRILEX WHEEL
5
SCREW RIM BOW TO WHEEL SPIDER,4 249811
7
NUT RIM BOW TO FRONT WHEEL SPIDER
10
BRAKE DRUM TRILEX RIM TO FRONT WHEEL SPIDER
15
WHEEL SPIDER , Replaced By: A3584020104
15
WHEEL SPIDER REAR AXLE,826881
17
OIL COLLECTOR , Replaced By: A3523560382
17
OIL COLLECTOR
19
CLAMPING SHOE ,5 142384
19
CLAMPING SHOE , Replaced By: A3874020268
22
SCREW TRILEX RIM TO REAR WHEEL SPIDER
23
NUT
26
RING104 MM
26
RING104 MM
29
BRAKE DRUM REAR WHEEL BRAKE CYLINDER
31
LOCK WASHER SPARE WHEEL TO BRACKET
33
SCREW CROSS MEMBER TO REINFORCEMENT M 20X1.5X45
35
RIM BRAKE DRUM TO REAR WHEEL SPIDER 6.5-20
37
RIM BOW LONG,WITH VALVE HOLE
41
TIRE LEVER
43
TIRE LEVER
45
CONNECTING RAIL
49
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE, TO BE USED UNTIL SA 16990 BECOMES APPLICABLE
999
LOCK RIM BOW TO FRONT WHEEL SPIDER
999
NUT , Replaced By: A0009901450
999
PIN
999
DRUM HUB
999
RIM BOW SHORT
999
COTTER PIN
999
NUT , Replaced By: N308673020002
999
NUT , Replaced By: N308674020000
999
NUT REAR SPRING TO REAR AXLE
