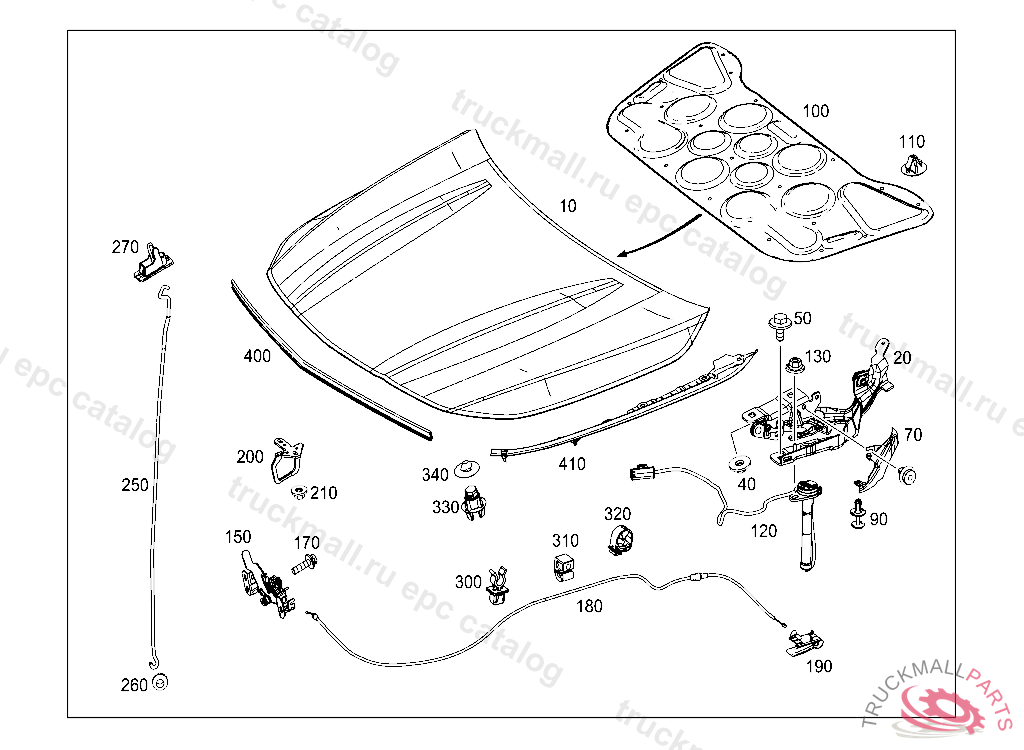

Поз.
Артикул
Описание
10
HOOD
20
HINGE RIGHT
20
HINGE LEFT
40
COMBINATION NUT HINGE AT ENGINE HOOD, LEFT
50
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
70
HINGE COVER LEFT
70
HINGE COVER RIGHT
90
EXPANSION RIVET FASTENING COVER LEFT AND RIGHT
100
INSULATION ENGINE HOOD AT ENGINE HOOD
110
PLUG-IN MOUNTING INSULATION TO ENGINE HOOD
120
ACTUATOR ENGINE HOOD, LEFT AND RIGHT
130
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
150
LOCK LOWER PART LOWER PART
150
LOCK UPPER PART UPPER PART
170
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
180
HOOD CABLE
180
HOOD CABLE
190
RELEASE HANDLE ENGINE HOOD RELEASE CABLE
200
LOCK UPPER PART UPPER PART
210
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
250
SUPPORT ENGINE HOOD
260
GROMMET ENGINE HOOD
270
INNER FRAME
300
CLAMPING BRACKET BRACING
310
LINE HOLDER ENGINE HOOD RELEASE CABLE
320
LINE HOLDER ENGINE HOOD RELEASE CABLE
330
BUFFER STOP ENGINE HOOD REST TO STIFFENING
340
PLUG ENGINE HOOD STOP
400
ENGINE HOOD SEAL AT ENGINE HOOD
410
ENGINE HOOD SEAL LEFT
410
ENGINE HOOD SEAL RIGHT
