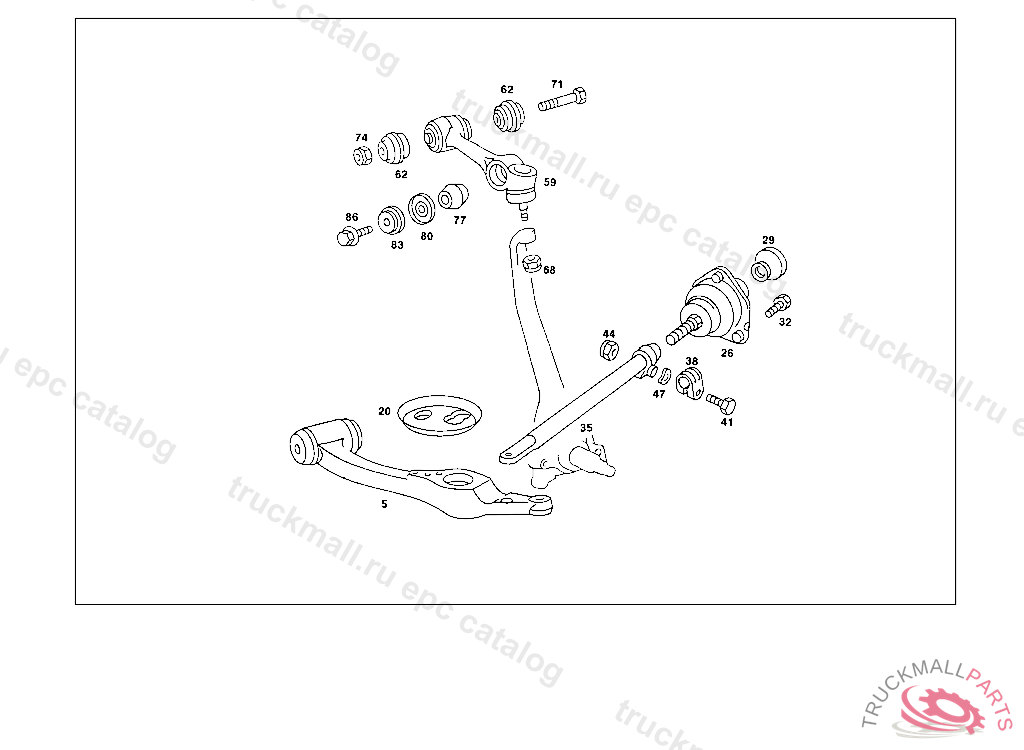

Поз.
Артикул
Описание
5
TRANSVERSE CONTROL ARM BOTTOM LEFT, 028 110245 125 306442 132 267578
5
TRANSVERSE CONTROL ARM BOTTOM RIGHT, 028 110245 125 306442 132 267578
20
SPRING CASE RIGHT
20
SPRING CASE LEFT
26
SUPPORTING JOINT
29
BOOT OUTSIDE
32
SCREW BRAKE BRACING TO FRAME
35
GUIDE ROD , 000 032206 003 014989 102,103 021331 105 029120
38
CLAMP
41
SCREWM 8X40
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
47
SPRING WASHER , Replaced By: N000137008212
47
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
59
TRANSVERSE CONTROL ARM TOP RIGHT
59
TRANSVERSE CONTROL ARM TOP LEFT
62
BEARING UPPER CONTROL ARM TO FRAME
68
NUT BRACKET TO CROSS MEMBER
71
SCREW BRACKET TO BUMPER STRUT
74
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
74
NUT , Replaced By: N910113012003
77
BEARING UPPER CONTROL ARM TO TORSION BAR
80
RETAINER UPPER CONTROL ARM TO TORSION BAR
83
WASHER UPPER CONTROL ARM TO TORSION BAR
86
SCREW UPPER CONTROL ARM TO TORSION BAR
86
SCREW , Replaced By: N910106010034
