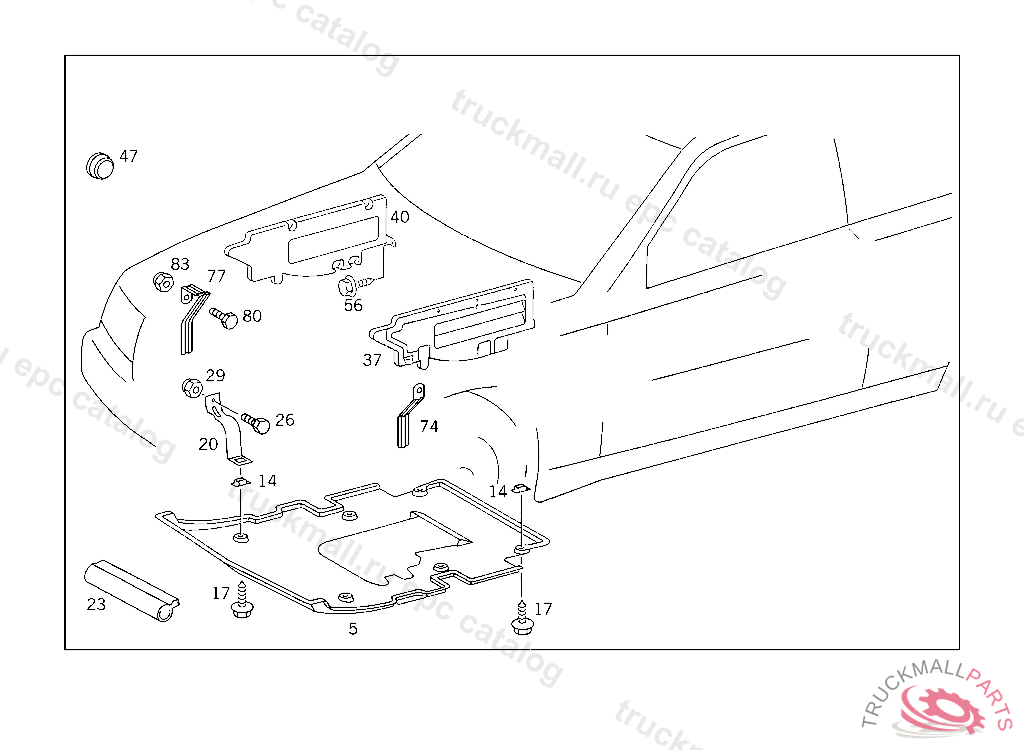

Поз.
Артикул
Описание
5
PANELLING FRONT,B 747340
14
LOCK. CLIP-TYPE NUT
17
SCREW. SHEET METAL SCREW
20
STRUT RIGHT FRONT ANTINOISE CAPSULE
20
STRUT LEFT FRONT ANTINOISE CAPSULE
23
BOOT706 MM, ORDER BY THE METER
26
SCREW PIPE CLAMP
26
SCREW , Replaced By: N304017008021
29
NUT , Replaced By: N913004008001
37
PANELLING FRONT LEFT, ONLY USED WITH AIR CONDITIONER,B 747340
40
PANELLING FRONT RIGHT, ONLY USED W/AIR CONDITIONER,F 225418 TO BE ADAPTED DURING ASSEMBLY
47
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
56
SCREW
74
BRACKET AT LEFT SIDE MEMBER,B 747340
77
BRACKET AT RIGHT SIDE MEMBER
80
SCREW CLAMP TO BRACKET AND TO PIPE
83
NUT , Replaced By: N913004008001
