Поз.
Артикул
Описание

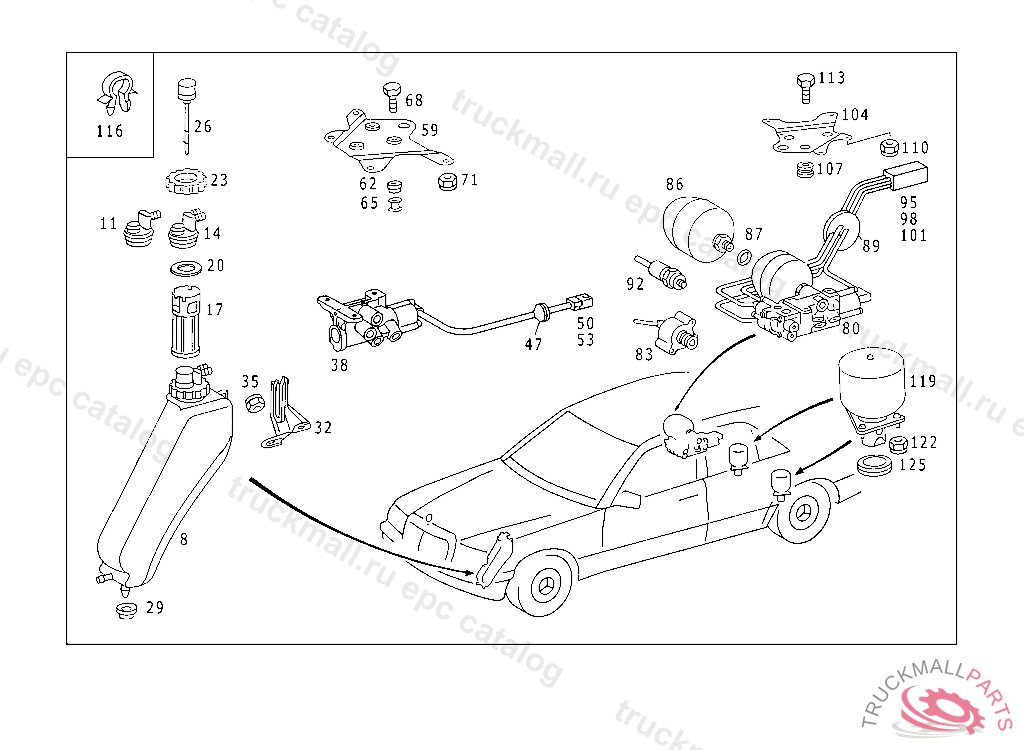

8
RESERVOIR OIL RESERVOIR USED FOR AUTOMATIC LOCKING DIFFERENTIAL (ASD) 4-MATIC
11
COVER SELF-LEVELLING DEVICE OIL RESERVOIR
14
COVER
17
FILTER
20
SEAL RING
23
NUT
26
HOUSING OIL DIPSTICK
29
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
32
BRACKET OIL RESERVOIR TO LEFT FRONT WHEELHOUSE PANEL
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
38
VALVE LIMITED-SLIP DIFFERENTIAL CONTROL VALVE
38
VALVE , Replaced By: A2023500057, +001A1869970681
47
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
50
PLUG PIN
53
PLUG HOUSING
59
BRACKET LIMITED-SLIP DIFFERENTIAL CONTROL VALVE
62
RUBBER BUFFER
65
BUSHING
68
SCREW CAB FLOOR COVERING M 6X25
71
NUT COVERING TO CAB FIRE WALL
119
AIR RESERVOIR (SPRING LOAD ACCUMULATOR)
119
AIR CELL , Replaced By: A1403280215
119
AIR RESERVOIR , Replaced By: A1403280515
122
NUT PUMP TO BRACKET
122
NUT HEATING PIPE TO BRACKET
125
SEAL RING SPRING LOAD ACCUMULATOR TO FRAME
