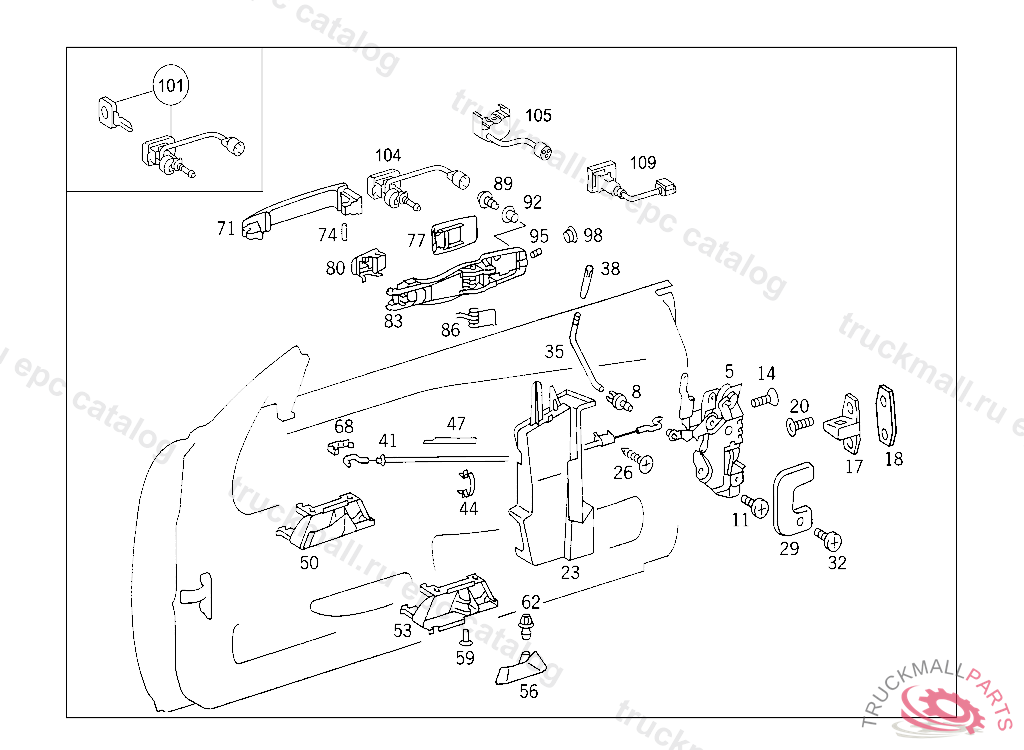

Поз.
Артикул
Описание
5
LOCK USED W/INFRA-RED CLOSING SYSTEM,LEFT
5
LOCK RIGHT
5
LOCK WITH CONVENIENCE FEATURE, RIGHT
5
LOCK USED WITH BURGLARY ALARM SYSTEM,LEFT
5
LOCK WITH CONVENIENCE FEATURE, LEFT
5
LOCK USED W/INFRA-RED CLOSING SYSTEM,RIGHT
5
LOCK WITH CONVENIENCE FEATURE, RIGHT
5
LOCK RIGHT
5
LOCK WITH CONVENIENCE FEATURE, LEFT
5
LOCK USED WITH BURGLARY ALARM SYSTEM,LEFT
5
LOCK USED W/INFRA-RED CLOSING SYSTEM,LEFT,C 287350
8
CLIP LOCK ROD TO DOOR LOCK
11
SCREW DOOR LOCK TO REAR DOOR
14
SCREW
17
LOCKING EYE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1247200004
18
PLATE LOCKING EYE REAR FENDER
20
SCREW LOCKING EYE REAR FENDER
23
COVERING ABOVE DOOR LOCK & CENTR. LOCKG. MECHANISM ELEMENT,RIGHT,WITH CODE 551 (EDW)
23
COVERING USED WITH INFRA-RED CLOSING SYSTEM
26
SCREW VACUUM ELEMENTS ON LEFT AND RIGHT REAR DOORS
29
EDGING LEFT DOOR LOCK
29
EDGING RIGHT DOOR LOCK
32
SCREW FUSE BOX TO SIDE MEMBER,5 097182
35
LOCKING ROD DOOR LOCKING DEVICE
35
LOCKING ROD DOOR LOCKING DEVICE
38
LOCK (LOCKING KNOB),DOOR LOCKING MECHANISM, 023 116974 033 048511 123 097281 130 120564
41
PULL INTERIOR HANDLE ASSEMBLY
44
CLAMP BOWDEN CABLE TO CAB
47
HOSE PULL ROD TO FRONT DOOR INTERIOR PART
50
INTERIOR HANDLE ASSEMBLY LEFT DOOR LOCK
50
INTERIOR HANDLE ASSEMBLY RIGHT DOOR LOCK
53
RECESS LEFT
53
RECESS RIGHT
56
LEVER RIGHT
56
LEVER LEFT
59
PIN
62
CLIP
68
CLIP PULL TO INTERIOR HANDLE ASSEMBLY
71
HANDLE FRONT DOORS
74
GROOVED PIN
77
PAD REAR
80
PAD FRONT
83
MOUNTING DOOR HANDLES
86
SPRING BEARING CLAMP
89
SCREW BEARING CLAMP
92
BUSHING BEARING CLAMP
92
BUSHING BEARING CLAMP
95
THREADED PIN BEARING CLAMP
98
PLUG LOCK OPERATING LEVER ADJUSTMENT HOLE
101
GUIDE WORKSHOP VERSION,WITH KEY, ANY LOCK
104
GUIDE LESS KEY,LEFT, BURGLARY ALARM SYSTEM, STATE LOCK NUMBER WHEN ORDERING
104
GUIDE LESS KEY,LEFT, STATE LOCK NUMBER WHEN ORDERING
104
GUIDE LESS KEY,RIGHT, STATE LOCK NUMBER WHEN ORDERING
104
GUIDE LESS KEY,RIGHT, BURGLARY ALARM SYSTEM, STATE LOCK NUMBER WHEN ORDERING
105
SWITCH USED WITH BURGLARY ALARM SYSTEM,RIGHT TO 124 760 42 77
105
SWITCH USED WITH BURGLARY ALARM SYSTEM,LEFT TO 124 760 49 77
109
INFRARED RECEIVER RIGHT
109
INFRARED RECEIVER LEFT
