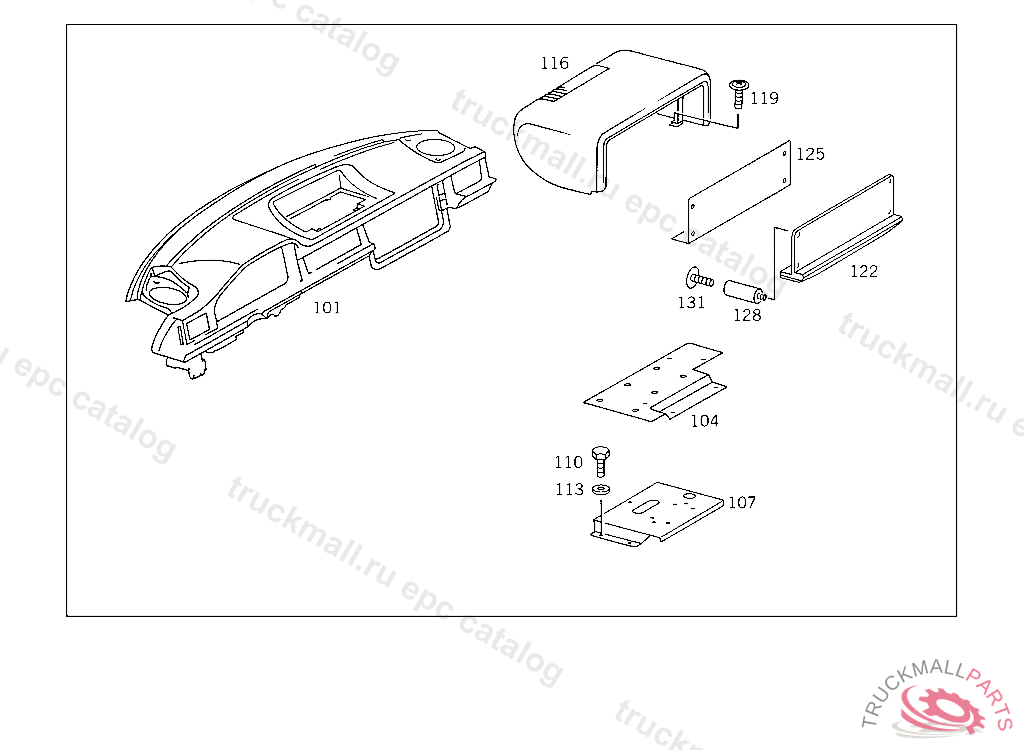

200 TD 200-300 9/89-10/92, 200D-300D 9/89-7/93 - 124.180 - 62 FRONT PANEL
Поз.
Артикул
Описание
101
INSTRUMENT PANEL UPPER PART
101
INSTRUMENT PANEL UPPER PART, B 065821 F 122352
104
PLATE
107
CONSOLE
110
SCREW COVER PLATE TO COVER PLATE M 6 X 10
113
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
116
COVERING
119
SCREW
119
SCREW , Replaced By: N000000001812
122
PANELLING
125
COVER
128
PIN
131
SCREW
131
SCREW , Replaced By: N000000001812
