E 250 TURBODIESEL 200-320 FROM 10/92, 250D-300D FROM 7/93 - 124.188 - 82 ELECTRICAL SYSTEM
Поз.
Артикул
Описание

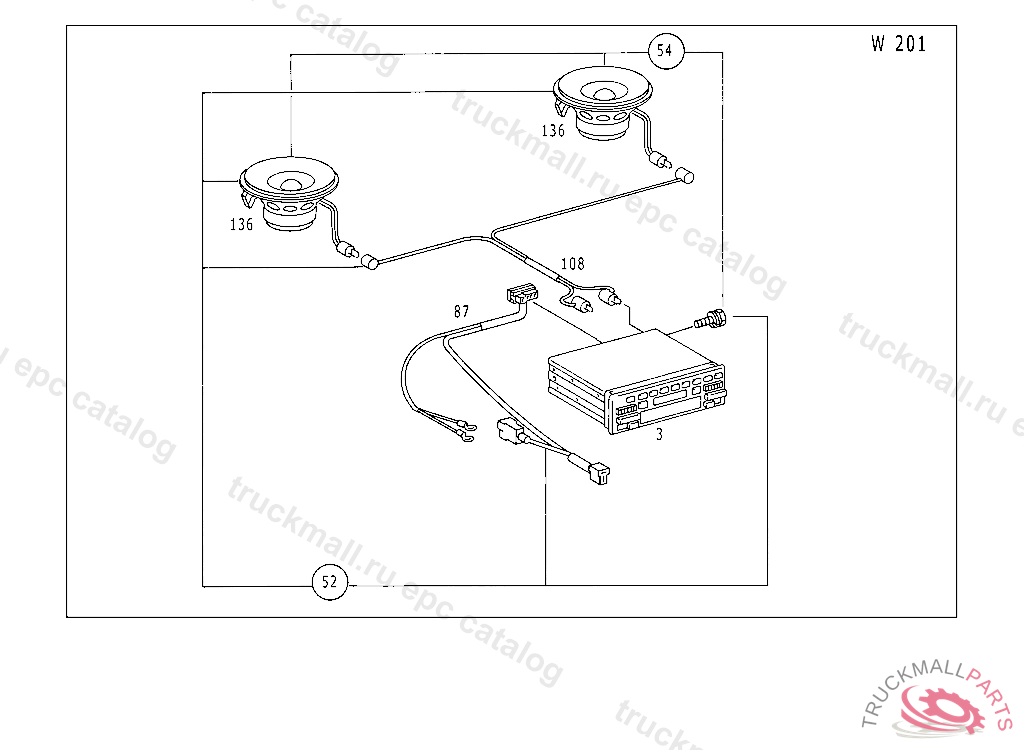

3
RADIO SET ASSEMBLY
3
RADIO SET ASSEMBLYGRAND PRIX CS CODE
3
RADIO SET ASSEMBLY
3
RADIO SET ASSEMBLY
52
RADIO ACCESSORIES FRONT LOUDSPEAKER INSTALLATION KIT
54
RADIO ACCESSORIES. PART NAME MISSING FRONT LOUDSPEAKER INSTALLATION KIT, FROM CHASSIS NEW EQUIPMENT 9/85 IN THE CASE OF VEHICLES HAVING NO ELECTRICAL ANCHORING POINT (SA 11294),DELIVER ALSO RANGE OF PARTS OUT OF SA 11294
87
ELECTRIC CABLE RADIO CURRENT SUPPLY, UP TO CHASSIS NEW EQUIPMENT 9/85 FROM CHASSIS,SEE STANDARD MICROFICHE
87
ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 78 86
108
ELECTRIC CABLE FRONT LOUDSPEAKER CONNECTION, UP TO CHASSIS NEW EQUIPMENT 9/85 FROM CHASSIS,SEE STANDARD MICROFICHE
136
LOUDSPEAKER FRONT
