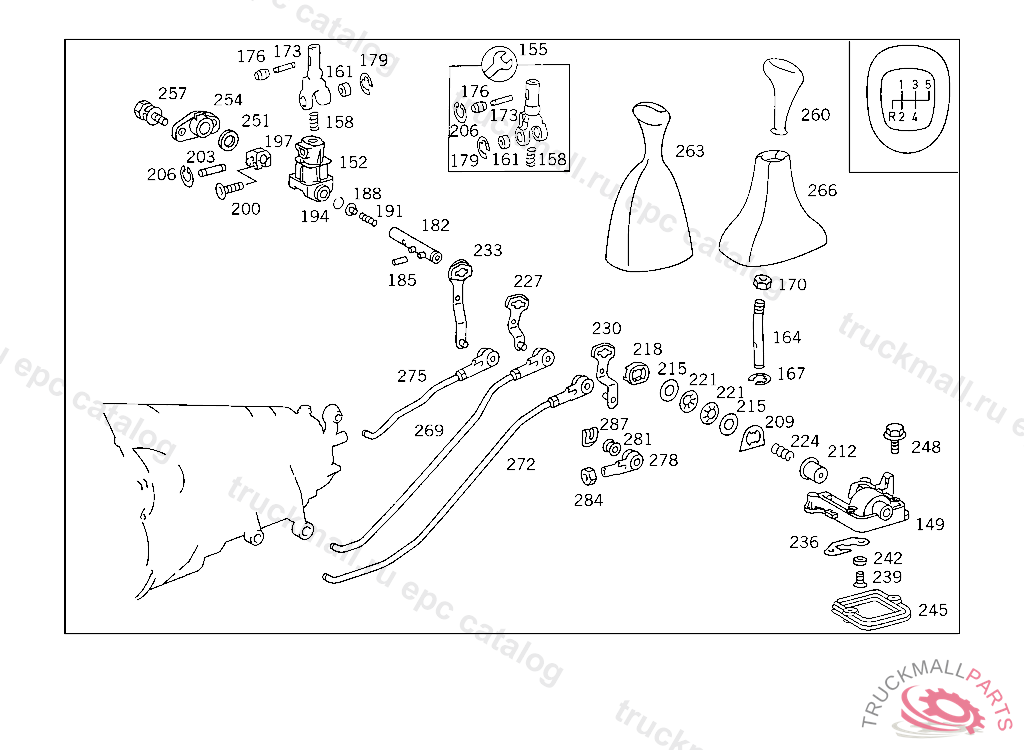

Поз.
Артикул
Описание
149
BEARING BRACKET FOUR-GATE SHIFT, FROM 1.88 FOUR-GATE SHIFT A 388168
152
SUPPORT
152
BRACKET , Replaced By: A1242670540
152
BRACKET , Replaced By: A1242671140
152
BRACKET , Replaced By: A2022670161
155
REPAIR KIT SHIFT LEVER
158
SPRING SHIFT LEVER
161
BUSHING
161
BUSHING , Replaced By: A1402670450
164
SHIFT LEVER FOUR-GATE SHIFT, FROM 1.88 FOUR-GATE SHIFT A 388168
167
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
170
NUT
173
PIN
176
BUSHING
179
LOCK PLATE
182
SHIFTING TUBE FOUR-GATE SHIFT, FROM 1.88 FOUR-GATE SHIFT A 388168
185
PIN
188
WASHER SHIFTING TUBE
191
SPRING SHIFTING TUBE
191
SPRING , Replaced By: A1249932101
194
SNAP RING SHIFTING TUBE
197
STOP , Replaced By: A1242670241
197
STOP
200
SCREW
203
PIN
206
LOCK
209
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
209
WASHER , Replaced By: A1292670376
212
BUSHING , Replaced By: A1292670050
212
BUSHING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
215
SPACER WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
215
SPACER WASHER , Replaced By: A1292670052
218
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
221
DISC SPRING , Replaced By: A1299930126
221
DISC SPRING
224
SPRING , Replaced By: A2019936101
224
SPRING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
227
LEVER 1ST AND 2ND SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
230
LEVER 3RD AND 4TH SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
233
LEVER 5TH SPEED AND REVERSE
233
LEVER , Replaced By: A1242607137
236
SLOTTED GATE , Replaced By: A1242670947
236
SLOTTED GATE , Replaced By: A2022670347
236
SLOTTED GATE , Replaced By: A2022670947
236
SLOTTED GATE
239
SCREW
242
WASHER , 124.0,124.1 : A 658915 124.2,124.3 : A 775522 ALSO INSTALLED ON : A 775938,A 776648,A 776991
245
GASKET BEARING BRACKET TO TUNNEL,A 314187
248
SCREW
251
FITTED WASHER MAIN PRESSURE VALVE
254
BEARING , FROM 1.88 FOUR-GATE SHIFT A 388168
257
SCREW
257
SCREW , Replaced By: N910106006000, +001N000125006421
260
HANDLE ,F 188132
263
GEARSHIFT LEVER GEARSHIFT LEVER WITH LEATHER COVER
263
GEARSHIFT LEVER GEARSHIFT LEVER WITH LEATHER COVER
266
BOOT
269
SHIFTING ROD 1ST AND 2ND SPEED, UP 1.88 TREE-GATE SHIFT A 388167
272
SHIFTING ROD 3RD AND 4TH SPEED, UP 1.88 TREE-GATE SHIFT A 388167
275
SHIFTING ROD 5TH SPEED AND REVERSE, FROM 1.88 FOUR-GATE SHIFT A 388168
278
END PIECE
281
BUSHING
281
BUSHING FROM LEVER TO VALVE BODY ASSEMBLY
284
NUT
287
LOCK
999
FLOOR SHIFT MECHANISM FOUR-GATE SHIFT, FROM 1.88 FOUR-GATE SHIFT A 388168
