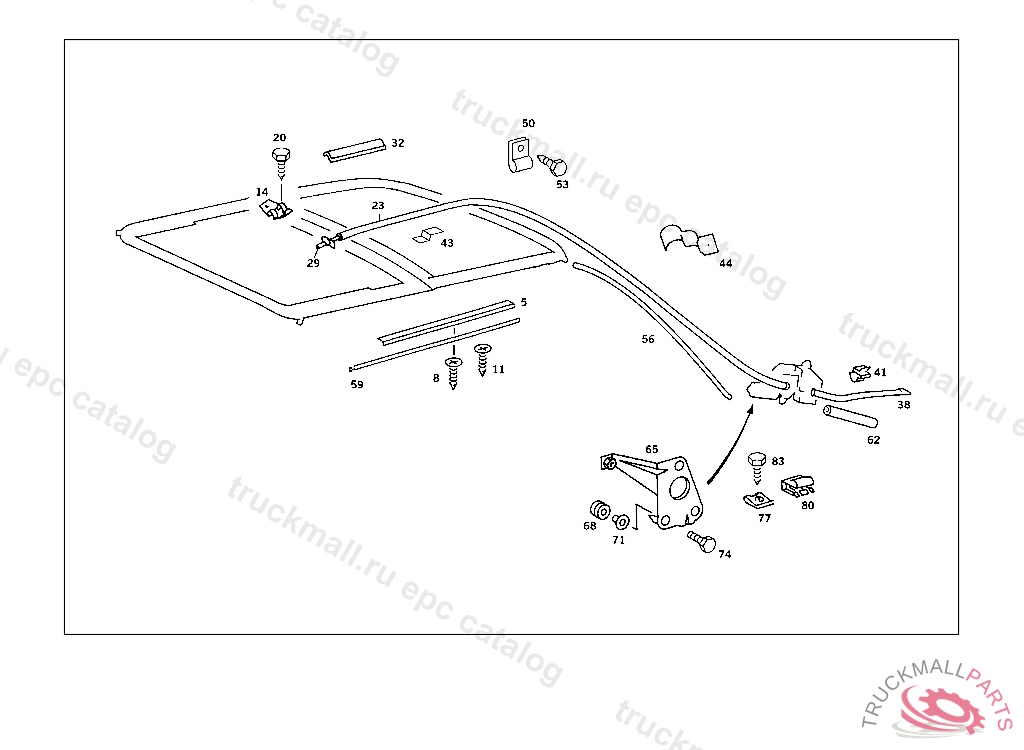

Поз.
Артикул
Описание
5
SLIDING RAIL FRAME,RIGHT
5
SLIDING RAIL FRAME,LEFT
5
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 124875, Replaced By: A2017820326
5
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 124875, Replaced By: A2017820426
8
SCREW
11
SCREW , Replaced By: A1409900436
11
SCREW
14
SHACKLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 554503, Replaced By: A1267820140
14
SHACKLE AT TRANSPORT BRIDGE
20
SHEET METAL SCREW BRACKET TO CAB FLOOR
23
TUBE FROM MOTOR TO SLIDING ROOF PLATE
29
CABLE
32
FELT60X20X2 MM, ORDER BY THE METER
38
TUBE IN LUGGAGE COMPARTMENT
41
CLIP CABLE HARNESS TO ROOF RAIL
43
CLAMP TUBE TO REAR PILLAR
44
CLAMP TUBE TO REAR PILLAR
50
CLAMP TUBE TO REAR PILLAR
56
HOSEWASSERABLAUF HINTEN 250 MM
59
SLIDING RAIL LEFT
59
SLIDING RAIL RIGHT
62
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
65
BRACKET
68
GROMMET GEARING TO BRACKET
71
BUSHING MOTOR TO BRACKET
74
SCREW PUMP TO BRACKET
74
SCREW COVER PLATE TO BRACKET
77
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
80
CLIP PLUG TO REAR PILLAR
