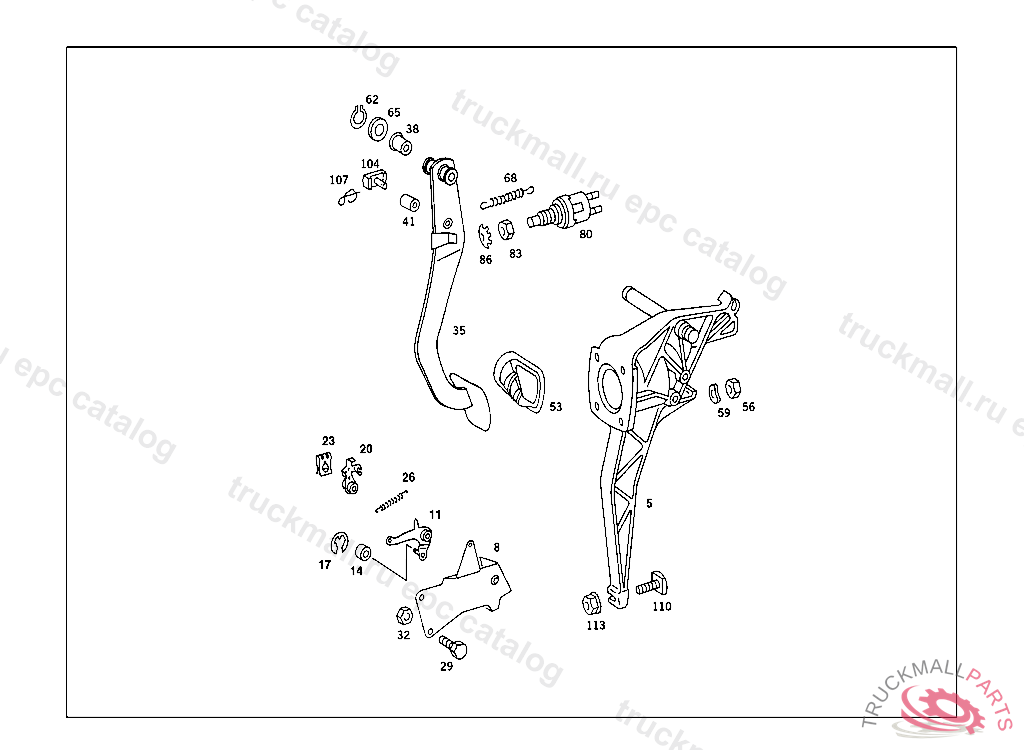

Поз.
Артикул
Описание
5
BEARING BRACKET
35
PEDAL , Replaced By: A1262902018
35
PEDAL BRAKE PEDAL
38
BUSHING , Replaced By: A1242920050
38
BUSHING BRAKE PEDAL
41
BUSHING
53
PAD BRAKE PEDAL
56
NUT
56
NUT , Replaced By: N000934008010, +001N000137008204
56
NUT , Replaced By: N304032008006
59
SPRING WASHER , Replaced By: N000137008212
62
LOCK RING , Replaced By: A0079942041
65
WASHER PEDALS TO PIVOT PINS
68
SPRING BRAKE PEDAL RELEASE SPRING
80
SWITCH STOP-LIGHT/SPEED SIGNAL
83
NUT SWITCH
86
TOOTHED WASHER , 027703
104
PIN BRAKE PEDAL TO BRAKE BOOSTER
107
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
110
SCREW , Replaced By: A0009905233
110
SCREW
113
NUT , Replaced By: N913023006001
113
NUT , Replaced By: N910112006001
113
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
