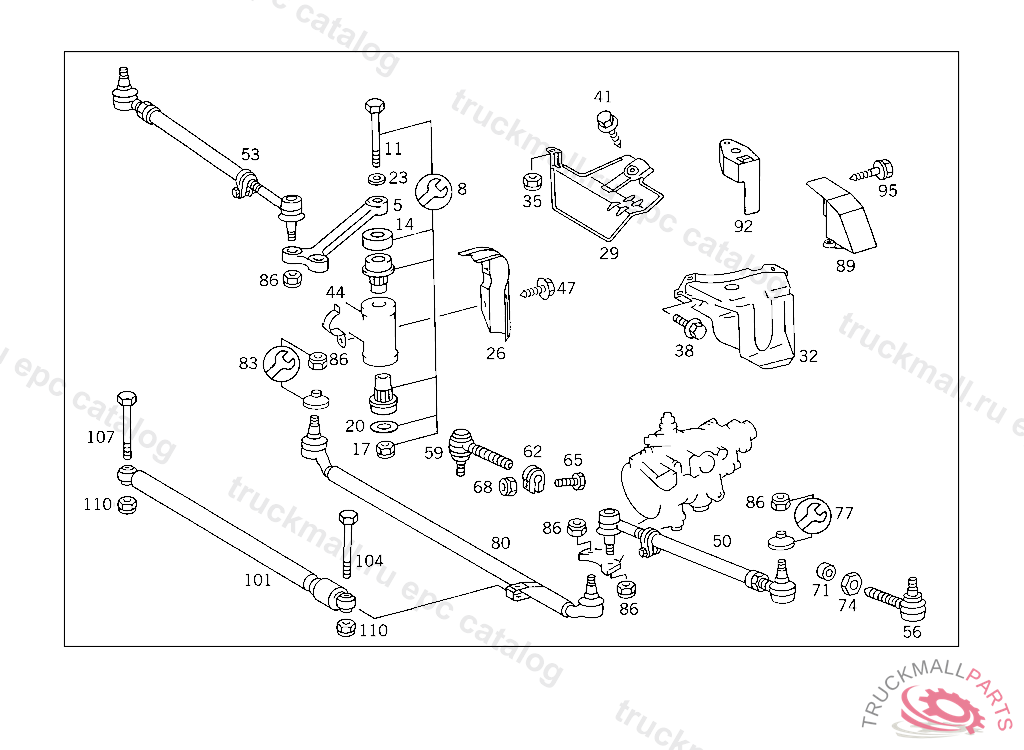

Поз.
Артикул
Описание
5
STEERING INTERMEDIATE ARM
5
STEERING INTERMEDIATE ARM
8
REPAIR KIT INTERMEDIATE LEVER
11
SCREW BRACKET AND BEARING BRACKET TO FRAME M 16X1.5X150
14
DUST CAP INTERMEDIATE LEVER TO PIVOT BEARING
17
NUT COMBINATION CYLINDER TO BEARING BRACKET
17
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
20
WASHER INTERMEDIATE LEVER TO PIVOT BEARING
23
WASHER STEERING SUPPORT TO FRAME
26
PROTECTIVE PLATE
26
PROTECTIVE PLATE
29
COVERING
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
35
NUT , Replaced By: N913023006001
41
SHEET METAL SCREW
44
BRACKET
47
SHEET METAL SCREW
50
TIE ROD RIGHT
53
TIE ROD RIGHT
56
JOINT R.H. THREAD TO 129 330 02 03
59
JOINT , Replaced By: A0013307035
59
JOINTTO 129 330 03 03
59
JOINT L.H. THREAD TO 124 330 20 03
62
CLAMP JOINT TO TIE ROD,063899-073467
65
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
68
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
CLAMPING PIECE JOINT TO TIE ROD
74
NUT
77
BOOT PARTS KIT TO 129 330 03 03
80
DRAG LINK
83
BOOT PARTS KIT
86
NUT PLATFORM MOUNTING
101
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
101
SHOCK ABSORBER , Replaced By: A1244630432
104
SCREW STEERING SHOCK ABSORBER TO DRAG LINK
107
SCREW , Replaced By: N308676010023
110
HEXAGON NUT
999
JOINT R.H. THREAD TO 129 330 03 03
