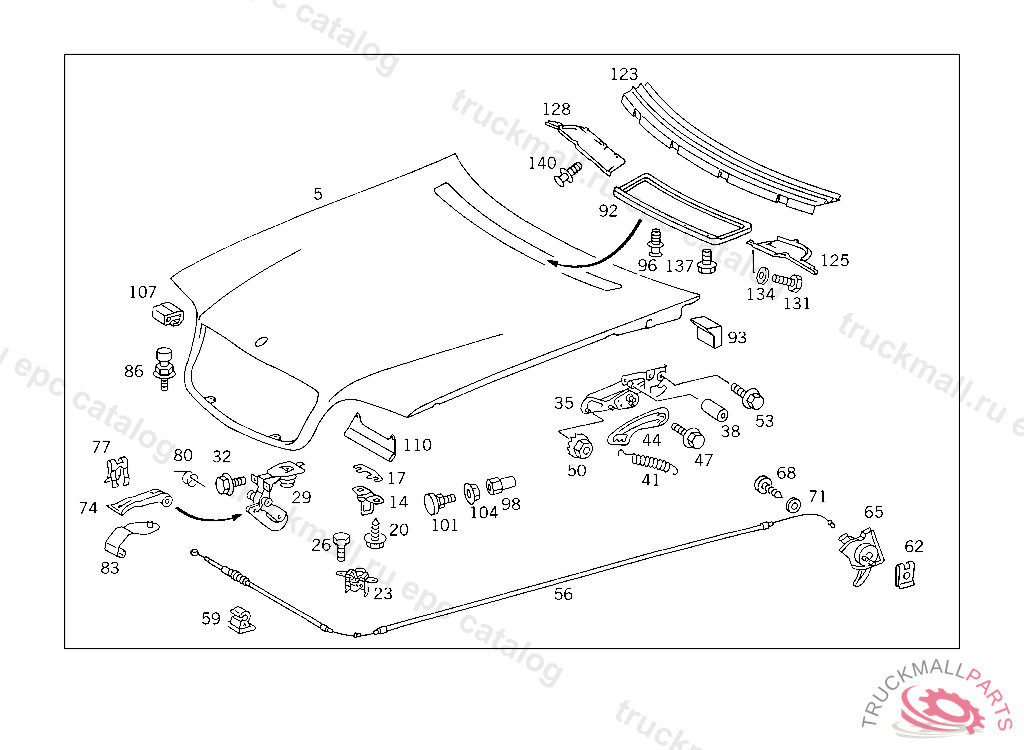

Поз.
Артикул
Описание
5
ENGINE HOOD , A 027276
5
ENGINE HOOD , A 027276
14
ENGINE HOOD CATCH UPPER PART
17
PAD CATCH TO ENGINE HOOD
20
SCREW
23
ENGINE HOOD CATCH ,A 151394 ORDER ADDITIONALLY: WITH BURGLARY ALARM SYSTEM 1X A140 821 34 51, Replaced By: A2028800160
23
FASTENER LOWER PART
26
SCREW PUMP TO BRACKET
26
COMBINATION BOLT , Replaced By: N304017006016
29
SAFETY HOOK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1408800364
29
SAFETY HOOK , Replaced By: A1408800564
29
SAFETY HOOK
32
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
35
HINGE ENGINE HOOD, LEFT
35
HINGE ENGINE HOOD,RIGHT
38
BUSHING
41
SPRING BETWEEN LEVER AND BRACKET ON FRONT PANEL PILLAR,RIGHT
41
SPRING BETWEEN LEVER AND BRACKET ON FRONT PANEL PILLAR,LEFT
41
SPRING , Replaced By: A1408871179
41
SPRING , Replaced By: A1408871279
44
LEVER ENGINE HOOD HINGE,LEFT
44
LEVER ENGINE HOOD HINGE,RIGHT
47
SCREW
50
NUT HINGE TO WHEELHOUSE
53
SCREW ENGINE HOOD TO HINGE
56
ENGINE HOOD RELEASE CABLE
59
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
62
LOCK
65
HANDLE ENGINE HOOD RELEASE CABLE
68
SHEET METAL SCREW TRANSMISSION TUNNEL
71
WASHER BOOT TO CAB FLOOR
71
WASHER , Replaced By: N000433005304
74
HANDLE HANDLE FOR ENGINE HOOD SAFETY HOOK
77
LOCK PULL TO FASTENER
80
SPRING HANDLE TO SAFETY HOOK
83
DEFLECTOR SAFETY HOOK
86
BUFFER ENGINE HOOD REST TO STIFFENING
86
BUFFER , Replaced By: A1409880511
86
BUFFER , Replaced By: A2019880511
92
SEAL AT ENGINE HOOD BRACKET,REAR
92
SEAL AT ENGINE HOOD,FOR ACTIVATED CHARCOAL FILTER,LEFT
93
SEAL AT ENGINE HOOD
96
RIVET BUSHING AND LEVER TO CAB
98
THREADED CHUCK
101
BUFFER ENGINE HOOD STOP
104
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
104
NUT , Replaced By: N913023006001
104
NUT , Replaced By: N910112006001
107
FASTENER CLIPPED INTO ENGINE HOOD,FRONT
110
SEAL RIGHT
110
SEAL LEFT
123
COVERING
125
SHELL LEFT
128
SHELL RIGHT
131
SCREW CONNECTOR TO CAB M6X8
134
WASHER COMPRESSED AIR LINE TO BRACKET
134
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
137
SCREW COVERING & SHELL TO ENGINE HOOD BRACKET
140
RIVET BUSHING AND LEVER TO CAB
