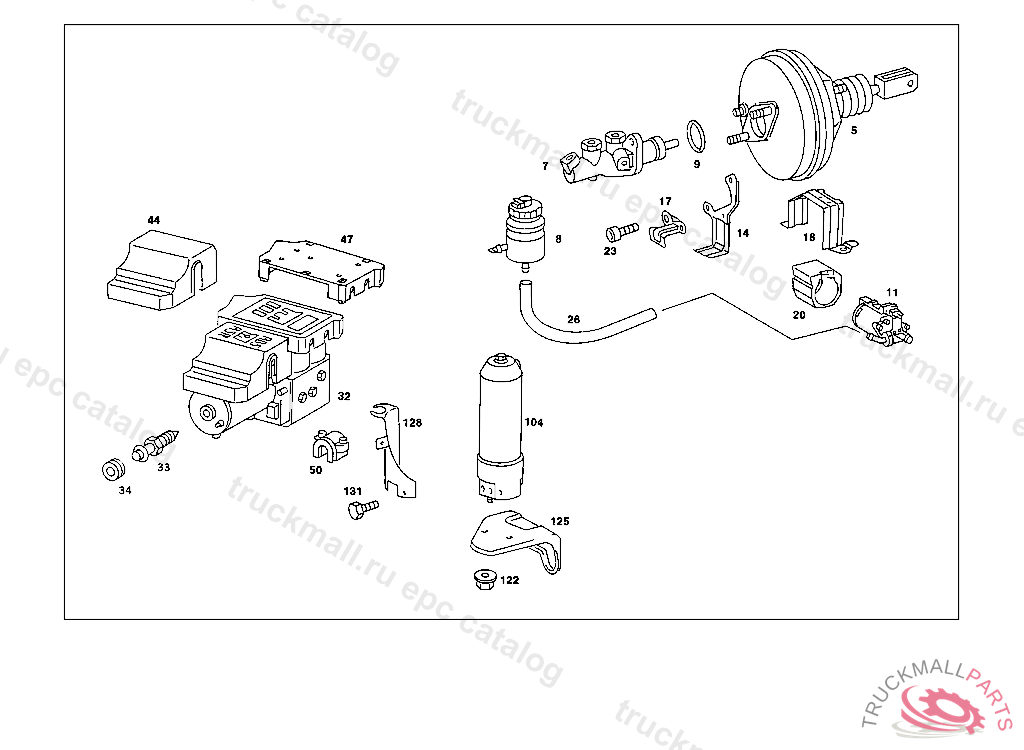

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY , 003,105 F 163538 004,007,106 F 161234
5
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044300030
7
BRAKE MASTER CYLINDER
8
RESERVOIR BRAKE MASTER CYLINDER
9
REPAIR KIT BRAKE MASTER CYLINDER
9
GASKET KIT. REPAIR KIT BRAKE MASTER CYLINDER, Replaced By: A0014304660
11
PUMP
14
BRACKET
14
BRACKET
17
BRACKET TOP
18
BRACKET TOP
20
RUBBER BUFFER BRAKE MASTER CYLINDER
23
SCREW DOOR HANDLE TO DOOR
26
BRAKE HOSE FROM ASR CHARGING PUMP TO HYDRAULIC UNIT
26
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
HOSE
26
HOSE , Replaced By: A0099973882
32
BRAKE PRESSURE REGULATOR , Replaced By: A0024314512
32
BRAKE PRESSURE REGULATOR (HYDRAULIC UNIT) ABS-ASR
33
BLEEDER VALVE
34
PROTECTIVE CAP ,5 962906
44
PROTECTIVE CAP
44
PROTECTIVE CAP , Replaced By: A0014313987
47
PROTECTIVE CAP
50
CLAMPTO 001 431 80 12
104
ACCUMULATOR
104
ACCUMULATOR , Replaced By: A0004300594
104
ACCUMULATOR , Replaced By: A0004301094
122
NUT , Replaced By: N913023006001
122
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
125
BRACKET
125
BRACKET
128
BRACKET
128
BRACKET
131
SCREW
999
DISTRIBUTOR
999
BALL SOCKET , Replaced By: A0009918922
999
ROD
999
BRACKET HYDRAULIC UNIT TO BRACKET
999
LINE , Replaced By: A1264208728
999
LINE
999
LINE
999
BRAKE SHOE
999
BRAKE SHOE
