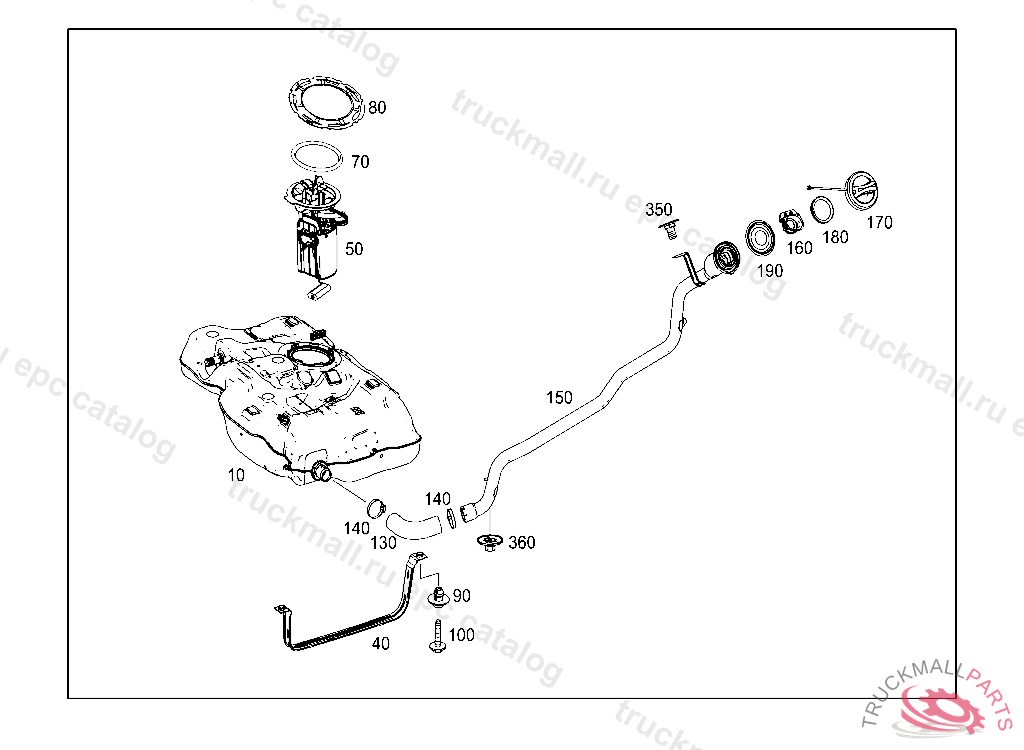

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
40
RETAINING STRAP TANK AT BODY AT LEFT
40
RETAINING STRAP TANK TO BODY AT RIGHT
50
FUEL DELIVERY MODULE
70
O-RING PUMP TO RESERVOIR
80
BAYONET TYPE CAP PUMP TO RESERVOIR
90
BRACKET SHIELD TO FUEL TANK
100
SCREW SUPPORT TO FENDER
130
FUEL HOSE FILLER NECK TO FUEL TANK
140
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
150
FILLER NECK
160
GUIDE FUNNEL F NECK TO FILLER NECK
170
FILLER CAP
180
SEAL RING FILLER CAP TO FILLER NECK
180
SEAL RING FILLER CAP
190
SEALING SLEEVE FILLER NECK TO BODY
350
HEXAGON NUT W COLLAR BRACKET MOUNTING
360
NUT FILLER PIPE TO FRAME
