Поз.
Артикул
Описание
5

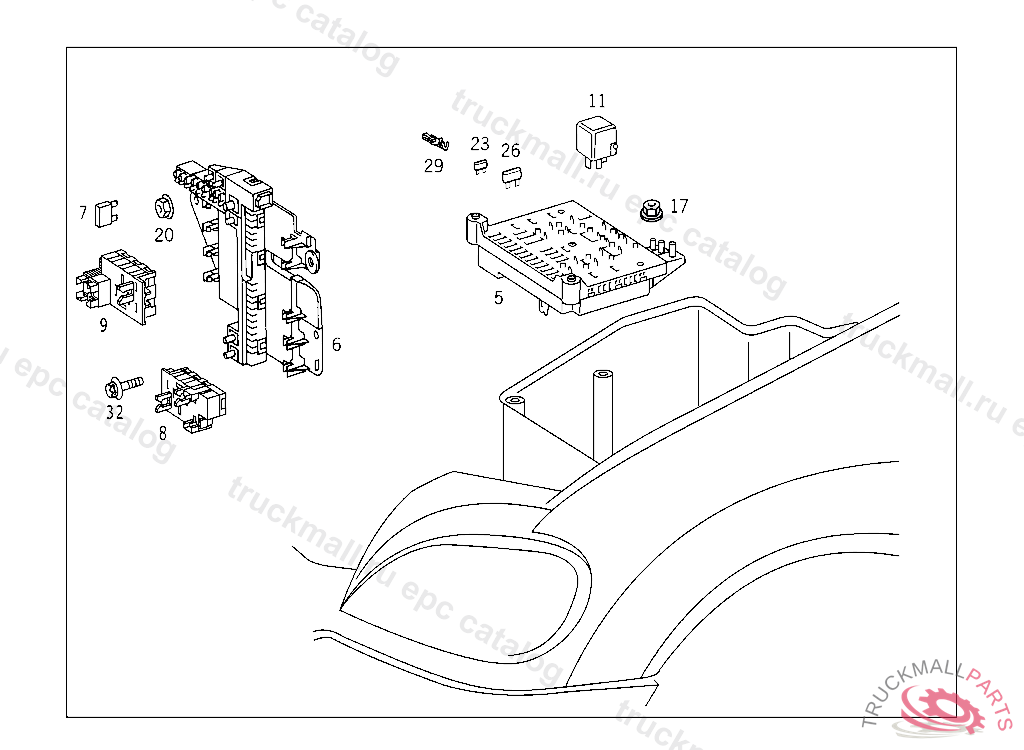

RELAY ELECTRICAL COMPARTMENT
5
RELAY UNIT , Replaced By: A1635450205
6
RELAY UNIT ON A-PILLAR BOTTOM RIGHT, A 145273 X 707756 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 145272, X 707755 WITH CODE 800 A 182664 X 718797
6
RELAY ON A-PILLAR BOTTOM RIGHT, A 182665 X 718798
7
SCREW70 A
7
FUSE70 A
8
RELAY-SOCKET CONNECTOR PORT NO. 9, A 145273 X 707756 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 145272, X 707755 WITH CODE 800
9
RELAY-SOCKET. PLUG FUSE/RELAY BOX
11
RELAY TWO-TONE HORN, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
11
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
11
RELAY , Replaced By: A0045452905
11
RELAY HEADLAMP WIPER/WASHER
11
RELAY , Replaced By: A0025422619
11
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806, Replaced By: A0035420219
11
RELAY HEADLAMP WIPER/WASHER
11
RELAY MAKE PULSE
17
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
17
NUT RELAY TO BRACKET M5
17
NUT HORN TO BRACKET M8
20
PLASTIC NUT. NUT
23
FUSE10 A
23
FUSE MODULE 7.5 A
23
FUSE LINK FUSE BOX 40 A
23
FUSE25 A
23
FUSE , Replaced By: N072581000303
23
FUSE , Replaced By: N072581000304
23
FUSE , Replaced By: N072581000305
23
FUSE , Replaced By: N072581000306
23
FUSE , Replaced By: N072581000307
23
FUSE , Replaced By: N072581000308
23
FUSE20 A, MINOR REPAIRS, Replaced By: N000000004206
23
FUSE , Replaced By: A0025451334
23
FUSE , Replaced By: A0025451034
23
FUSE LINK30 A, Replaced By: N000000007654
23
FUSE LINK20 A
26
FUSE30 A (MAXI)
26
FUSE , Replaced By: N000000000696
26
FUSE20 A
26
FUSE LINK HEATER FOR WIPER REST POSITION 30 A
26
FUSE LINK20 A
26
FUSE LINK30 A
26
FUSE LINK40 A (MAXI)
29
CONTACT SPRING0.8-1.0 MM2
32
HEXALOBULAR BOLT MOUNTING PARTS M4X16
