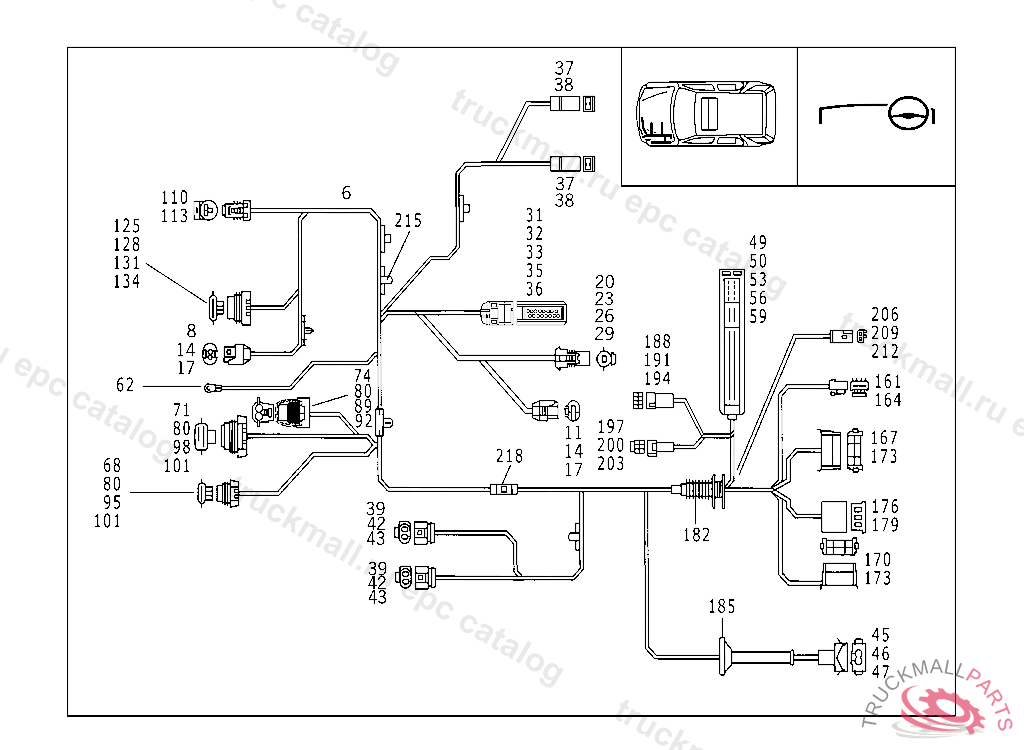

Поз.
Артикул
Описание
8
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
11
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
14
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
14
CONTACT BUSHING REFRIGERANT TEMPERATURE SENSOR 0,2-0,5 MM2
14
CONTACT SPRINGTO 657 540 50 10
17
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
20
PIN BUSHING HOUSING BRAKE LINING WEAR INDICATOR
23
LOCK
26
CONTACT SPRING0,8-1,0MM
26
CONTACT SPRING , Replaced By: A0105454926
29
GASKET , A 145273 X 707756 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 145272, X 707755 WITH CODE 800
29
GASKET VIOLET1.6-2.4MM
31
PIN BUSHING HOUSING HYDRAULIC UNIT ABS, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
32
CAPTO 029 545 75 28, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
33
ROUND PIN BUSHING0.5-1.0 MM2, ALSO VALID FOR:VEHICLES WITH COMMUNICATION AND NAVIGATION SYSTEM A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
33
CONTACT SPRING , Replaced By: A0095452026
33
CONTACT BUSHING. PLUG SOCKET , Replaced By: A0095452126
33
ROUND PIN BUSHING1.5-2.5 MM2, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
35
CORE BUNDLE SEALING1.0-2.5 MM2
36
WIRE SEAL GREY 0.5-1.0 MM2
37
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
38
CONTACT SPRING1,0MM
39
PLUG WINDSHIELD WASHER PUMP,2-POLE
42
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
42
CONTACT SPRING , Replaced By: A0115457726
43
GASKET LINE DIA., 2.0-2.9 MM, Replaced By: A6655457480
43
GASKET
45
PIN BUSHING HOUSING. PLUG SOCKET BIPOLAR TO 657 540 50 10
46
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
46
CONTACT SPRING , Replaced By: A0055456826
46
CONTACT SPRING , Replaced By: A0115457726
47
GASKET LINE DIA., 2.0-2.9 MM, Replaced By: A6655457480
47
GASKET
49
PIN BUSHING HOUSING , A 145272 X 707755 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM A 145273, X 707756 WITH CODE 809
50
PLUG ABS CONTROL UNIT
53
CAP , Replaced By: A0015452703
53
CAPTO 0015459840
56
CONTACT BUSHINGR 27, 0.75 MM2
56
CONTACT SPRING0.5-1.0 MM2
56
CONTACT SPRING0.5-1 MM2
56
CONTACT SPRING CONTROL UNIT CONNECTION 1.5-2.5
56
FLAT PIN BUSHING
59
CABLE CONNECTOR , A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801
62
CABLE SHOE RIGHT FRONT
68
SOCKET HOUSING. PIN BUSHING HOUSING BLINKER-AND-SIDE-MARKER LAMP
71
PIN BUSHING HOUSING RIGHT LIGHTING UNIT
74
PIN BUSHING HOUSING BIPOLAR
80
CONTACT SPRING
80
CONTACT SPRING
89
CAP
92
LOCK
95
LOCK PLUG HOUSING
98
LOCK 8-POLE
101
GASKET
101
GASKET LINE DIA., 2.0-2.9 MM, Replaced By: A6655457480
110
PIN BUSHING HOUSING SENSOR,REFRIGERANT PRESSURE
113
PIN BUSHING0.8-1.0 MM2
125
PIN BUSHING HOUSING ADDITIONAL HEATER
128
PIN BUSHING2.0-3.0 MM2
131
GASKET , A 289559 X 754619 EXCEPT CODE 802 ALSO INSTALLED IN VEHICLE FROM A 289560, X 754620 WITH CODE 801
134
LOCK
161
PIN BUSHING HOUSING TIMING EAM
164
CONTACT SPRING0.8-1.0 MM2
167
PIN BUSHING HOUSING FUSE/RELAY BOX
170
PIN BUSHING HOUSING FUSE/RELAY BOX
173
CONTACT SPRING2.0-3.0 MM2
173
CONTACT SPRING FUSE/RELAY BOX 0.35-0.5 MM2
173
CONTACT BUSHING0,5-0,8MM
176
PLUG FUSE/RELAY BOX
179
CONTACT SPRING1.0-2.0 MM2
182
GROMMET
185
GROMMET
206
PIN BUSHING HOUSING MICROPHONE
209
PIN BUSHING. CONTACT SPRING0.8 - 1.0 MM2
212
LOCK GARAGE DOOR OPENER, A 051464 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO A 051463 WITH CODE 809
215
CLIP
218
CLIP
