Поз.
Артикул
Описание

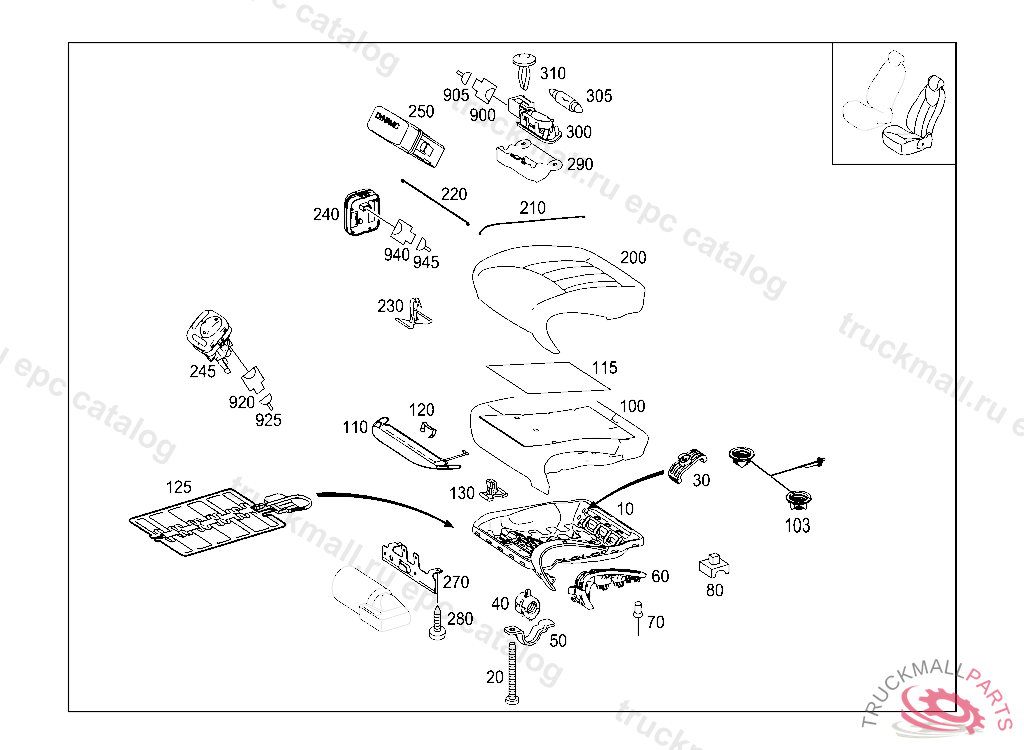

10
SEAT BOX LEFT
20
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
30
BEARING LEFT SEAT ADJUSTMENT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
40
SHELL SEAT ADJUSTMENT, RIGHT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
50
CLAMP SEAT BOX
60
STAY SEAT BOX
70
BLIND RIVET4X16
80
SLIDING BLOCK
100
PAD FRONT SEAT CUSHION LEFT SEAT, A 13550020110604
100
PAD FRONT SEAT CUSHION LEFT SEAT, A 13550020110604
100
REST LEFT SEAT
100
REST LEFT SEAT, A 13549920110604
100
REST LEFT
100
REST LEFT SEAT, A 13549920110604
103
AXIAL BLOWER
110
SEAT ADAPTER LEFT SEAT, A 05535020070206
110
ADJUSTABLE INSERT MULTICONTOUR SEAT, LEFT, Replaced By: A0009101875
115
INTERMEDIATE LAYER CUSHION FRAME
120
CLIP REINFORCED, A 436536 F 483848 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 436535, F 483847 WITH CODE 807
125
SWITCH SEAT OCCUPATION RECOGNITION, A 29725120070627
125
SWITCH SEAT OCCUPATION RECOGNITION, A 17296620060830 A 29645220070626808
125
SWITCH RIGHT SEAT, A 04134320060828807
130
CLIP SEAT COVER MOUNTING,TRANSVERSE
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "TWIN" LEATHER
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "TWIN" LEATHER
200
COVER LEATHER
200
COVER LEATHER
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER LEATHER
200
COVER FRONT SEAT CUSHION LEFT
200
COVER FRONT SEAT CUSHION "EXCLUSIV"LEATHER TRIM
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "TWIN" LEATHER
200
COVER FRONT SEAT CUSHION "TWIN" LEATHER
200
COVER FRONT SEAT CUSHION LEATHER
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "EXCLUSIV"LEATHER TRIM
200
COVER "TWIN" LEATHER, Replaced By: A1649101101
200
COVER "TWIN" LEATHER, Replaced By: A1649101501
210
CLAMP LONGITUDINAL STAPLING
220
MOUNTING BRACKET TRANSVERSAL TACKING, A 48000720081001809
230
CLIP COVER TO BACKREST
240
REGULATOR MULTI-CONTOUR BACKREST
245
SHIFTING BLOCK LORDOTIC ADJUSTMENT, LEFT SEAT, 9051QFT246A1040 BLACK, Replaced By: A2059057603
245
REGULATOR RIGHT, WITH MEMORY FOR MULTICONTOUR SEAT
250
SWITCH DYNAMIC SEAT, LEFT, 7C45QFT219A1025 DEEP GREY
270
BRACKET FIRE EXTINGUISHER SUPPORT, LEFT
270
BRACKET FIRE EXTINGUISHER SUPPORT, LEFT, Replaced By: A2519101114
280
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
290
ELECT. COVER LEFT SEAT
300
INTERIOR LAMP LEFT COVERING
305
BULB12V/5W
305
BULB LICENSE PLATE LAMP 12V-5W
310
CLIP
900
PLUG HOUSING FRONT PASSENGER FOOTWELL ILL. 2-PIN MCP2.8
905
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
920
CLUTCH PLUG CONNECTION TRAILER PLUG SOCKET 4-PIN SLK2.8,X52
920
SOCKET HOUSING RIGHT REAR OUTER SURROUND SPEAKER 2-PIN MQS,H4/57
925
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
940
PLUG HOUSING. PIN BUSHING HOUSING SEAT ADJUSTMENT SWITCH, A 394035 X 004165, J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 / X 004166 WITH CODE 807
945
CONTACT BUSHINGR 27, 0.75 MM2
945
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
