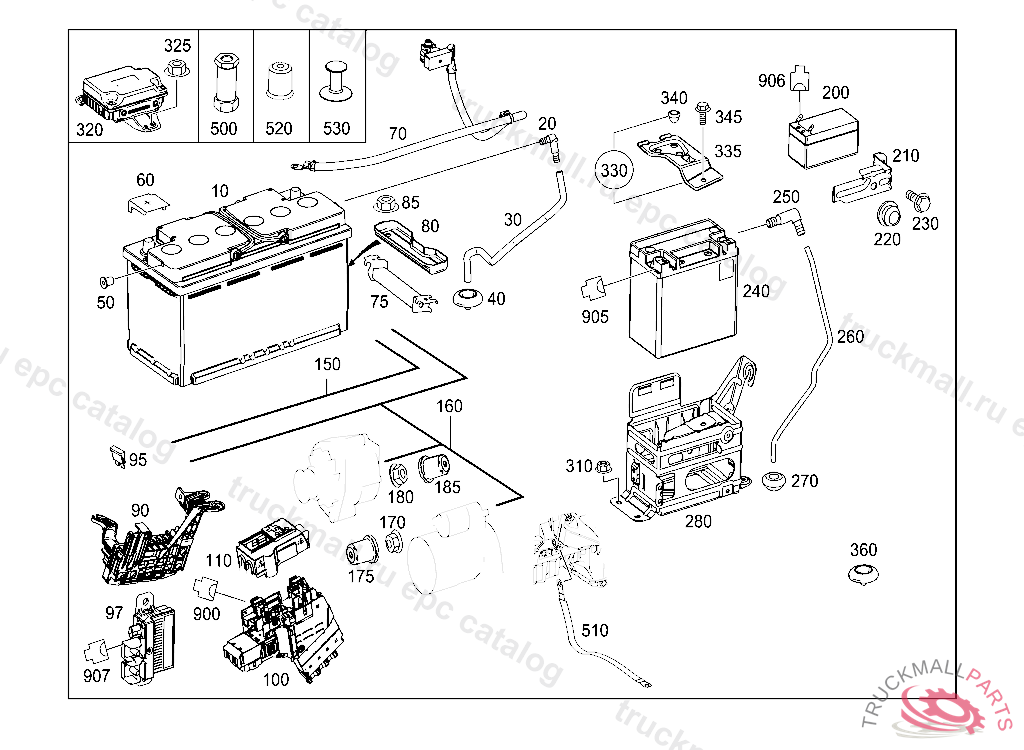

Поз.
Артикул
Описание
10
BATTERY FILLED 12V/95AH
10
STARTER BATTERY IN REAR END 12V / 95AH
20
ELBOW FITTING. DISTRIBUTOR
30
HOSE , ORDER BY THE METER
40
GROMMET TANK FITTING GROUND LINE
50
STOP PLUG. PLUG ON BATTERY,LATERALLY
60
BOOT POS. POLE
70
BATTERY SENSOR ON-BOARD ELECTRICAL SYSTEM BATTERY
70
GROUND LINE W SENSOR ON-BOARD ELECTRICAL SYSTEM BATTERY
75
CROSS MEMBER LEFT
75
CROSS MEMBER RIGHT
80
BRACKET BATTERY FASTENING
85
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
90
FUSE BOX PREFUSE BOX F32/4, L 00000120120301 M 00000120120301 A 05447420120220 L 00217820130831 M 00217820130831
90
FUSE BOX PREFUSE BOX F32/4
95
FUSE LINK SILVER-PLATED E-30A-S
95
FUSE LINKE-40A-S
97
RELAY PASSENGER FOOTWELL FRONT, RIGHT
100
FUSE BOX ENGINE COMPARTMENT,RIGHT F32/3, L 00000120120301 M 00000120120301 A 05447420120220
110
HOUSING COVER FUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX
150
ELECTRICAL WIRING HARNESS BATTERY POS. TERM. TO PREFUSE BOX
160
ELECTRICAL WIRING HARNESS STARTING MOTOR AND ALTERNATOR
170
NUT CABLE TO ALTERNATOR,TERMINAL 30
175
PROTECTIVE CAP. BOOT NUT , M8
180
NUT CABLE TO ALTERNATOR,TERMINAL 30
185
PROTECTIVE CAP. BOOT NUT , M8
200
BATTERY BATTERY BACKUP 1.2AH, A 01175020070731808
210
BRACKET BATTERY BACKUP
220
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
230
HEXAGON HEAD BOLT LINE MOUNTING M6X10
240
AUXILIARY BATTERY12V-12AH
240
AUXILIARY BATTERY12V-12AH, Replaced By: A0019822708
250
ELBOW FITTING. DISTRIBUTOR
260
HOSE , ORDER BY THE METER
270
GROMMET ENGINE COMPARTMENT FEED-THROUGH
280
BRACKET BACKUP BATTERY
310
NUT , Replaced By: N913023006001
320
RECTIFIER
320
INVERTER115V
325
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
325
NUT , Replaced By: N913023006001
330
BRACKET COVER
335
BRACKET LOCK BRACKET
340
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
345
HEXAGON HEAD BOLT LINE MOUNTING M6X10
360
STOP PLUG TOP CENTER 11 MM
500
NUT JUMP START NEGATIVE TERMINAL
510
GROUND LINE ON ENGINE SUPPORT
510
GROUND LINE ON ENGINE SUPPORT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. L 00190220130731 M 00190220130731 A 28663320130812, Replaced By: A1665400741
520
PROTECTIVE CAP GROUND CONNECTION
530
COVER CAP REFRIGERANT LINE
900
CLUTCH HOUSING CODING B 2-PIN MLK1.2
900
REP.SET CONTACT FRONT PREFUSE BOX SQUIB 2-PIN 0.5MM2,F32, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
905
LOCKING MECHANISMTO A2045403250
905
FUSE BOX TOLL RECORDING F34/5
906
PLUG HOUSING UNIPOLAR
906
RECEPTACLE HOUSING ADDITIONAL BATTERY NEGATIVE TERMINAL 1-PIN PL6.3,G1/7*2
907
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
