Поз.
Артикул
Описание

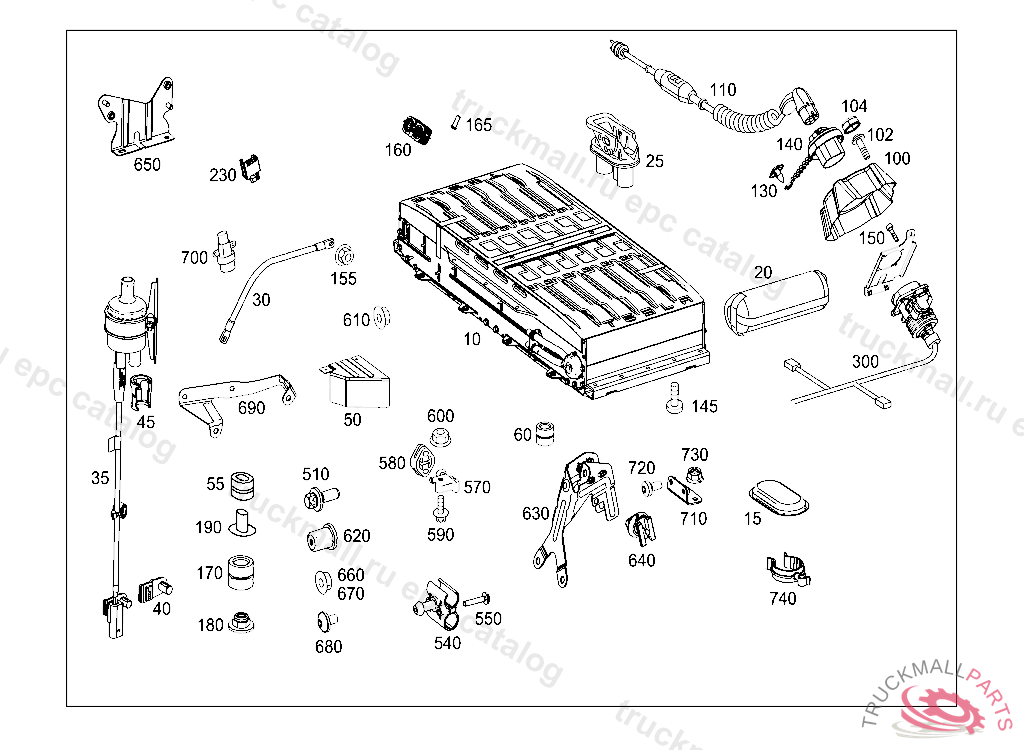

10
TRACTION BATTERY HIGH-VOLTAGE BATTERY, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
PROTECTIVE CAP HIGH-VOLTAGE BATTERY
20
AIR DRIER HIGH-VOLTAGE BATTERY
25
BATTERY CIRCUIT BREAKER HIGH-VOLTAGE BATTERY
30
GROUND STRAP
35
PREHEATER HIGH-VOLTAGE BATTERY
40
BRACKET LINE MOUNTING
45
RETAINING CLIP PREHEATER
50
BRACKET
55
GROMMET HOUSING FASTENING
60
RUBBER MOUNT BRACKET TO SIDE MEMBER
100
BRACKET CHARGING PLUG SOCKET
102
HEXALOBULAR BOLT BUMPER COVERING M6X20
104
PROTECTIVE CAP
110
CHARGING CABLE
110
CHARGING CABLE
110
CHARGING CABLE FOR GERMANY, J 93470720110214
110
CHARGING CABLE FOR GERMANY, J 94020820110322 P J 940031 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
130
EXPANSION RIVET. RIVET
140
INSULATING CAP CHARGING PLUG SOCKET
145
SCREW BRACKET TO SIDE MEMBER M8X20
150
HEXALOBULAR BOLT CHARGE SOCKET AT BRACKET M6X20
155
NUT BRACKET TO BODY SHELL M6
160
LINE HOLDER ELECTRIC CABLES
165
THREADED BUSHING CABLE HOLDER
170
RUBBER MOUNT BRACKET TO SIDE MEMBER
180
NUT MOUNTING FRAME TO SUPPORT M6
190
BUSHING AT CHARGING AIR INTERCOOLER
230
SOCKET HOUSING
300
ELECTRICAL WIRING HARNESS HIGH-VOLTAGE WIRING HARNESS, DC CONVERTER TO CHARGING SOCKET, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
510
HEXALOBULAR BOLT ENGINE REAR MOUNTING, AT FRAME M8X12
510
SCREW BRACKET TO SIDE MEMBER M8X20
510
BOLT. SCREW PARKING BRAKE VALVE TO BRACKET M8X12, Replaced By: N000000002207
540
BRACKET LINE MOUNTING
550
HEXALOBULAR BOLT CABLE HOLDER
570
BRACKET REAR MUFFLER
580
SUSPENSION RING MAIN MUFFLER, RIGHT
590
SCREW BRACKET TO SIDE MEMBER M8X20
600
NUT ENGINE MOUNTING M8
610
NUT STEERING COUPLING TO STEERING GEAR,A 166260
620
PROTECTIVE CAP. BOOT NUT , M8
630
BRACKET TOEBOARD,RIGHT
640
BRACKET
650
BRACKET PREFUSE BOX
660
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
670
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
680
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
690
BRACKET POWER STEERING PUMP FASTENING
700
BATTERY CIRCUIT BREAKER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 93470720110214, Replaced By: A1695452508
700
BATTERY CIRCUIT BREAKER
710
BRACKET
720
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
730
NUT BRACKET TO BODY SHELL M6
740
HOSE BRACKET
999
LINE HOLDER
999
ELECTRICAL WIRING HARNESS HIGH-VOLTAGE
999
ELECTRICAL WIRING HARNESS HIGH-VOLTAGE WIRING HARNESS, BATTERY 2 TO DC CONVERTER
999
ELECTRICAL WIRING HARNESS AT BATTERY BRACKET STRUT
999
ELECTRICAL WIRING HARNESS AT BATTERY BRACKET STRUT
999
ELECTRICAL WIRING HARNESS ELECTRICAL DRIVE SYSTEM
