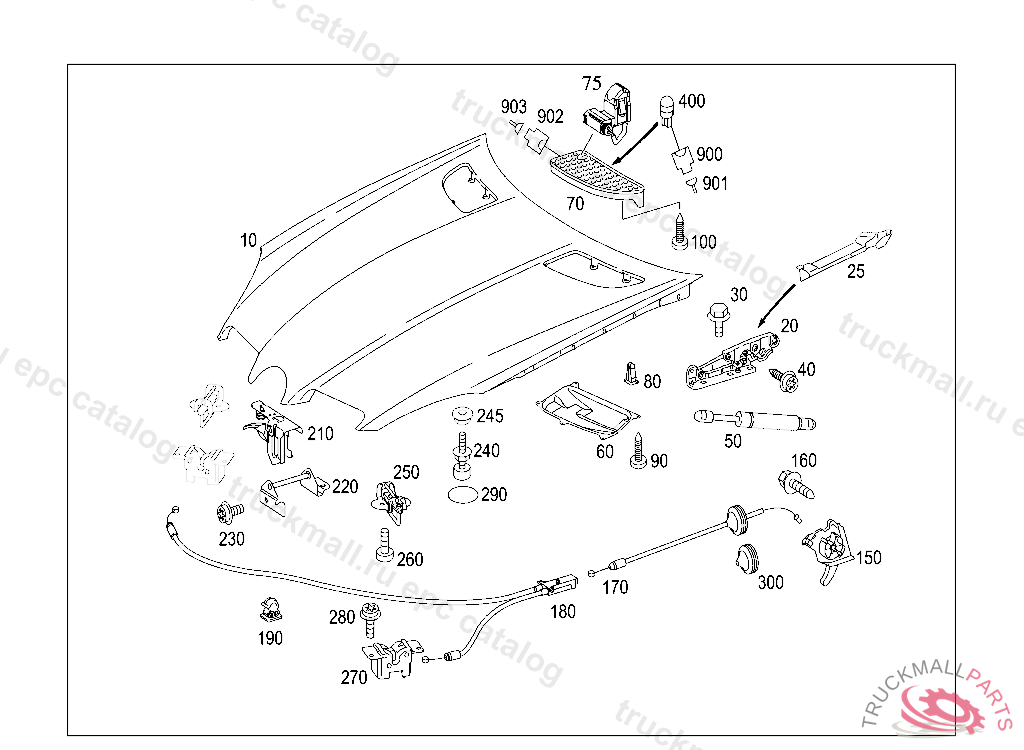

Поз.
Артикул
Описание
10
ENGINE HOOD
20
HINGE LEFT
20
HINGE RIGHT
25
COVER RIGHT HINGE
25
COVER HINGE,LEFT
30
BOLT LOCKING CLAMP TO REAR END CENTRAL PART M6X14
40
BOLT HINGE TO ENGINE HOOD M6X11
50
GAS-OPERATED SPRING RIGHT
50
GAS-OPERATED SPRING LEFT
60
COVER UNDER RIGHT HOOD GRATE
60
COVER UNDER LEFT HOOD GRATE
70
RADIATOR GRILLE RIGHT, F 19720120080331809
70
VENTILATION SCREEN LEFT, F 17710020070930808
70
RADIATOR GRILLE WITH "GILLS" FOR AMG, LEFT
70
RADIATOR GRILLE WITH "GILLS" FOR AMG, RIGHT
70
RADIATOR GRILLE LEFT, F 17710020070930808
70
VENTILATION SCREEN RIGHT, F 17710020070930808
75
NOZZLE LEFT AND RIGHT R2/1, F 13820020070630808
75
NOZZLE LEFT AND RIGHT, A 92485620060602 E 01999920070101
80
TREENAIL BRACKET TO FIRE WALL
90
TAPPING SCREW CONTROL UNIT TO FIRE WALL
100
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
150
HANDLE RIGHT
150
HANDLE LEFT
160
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
170
ENGINE HOOD RELEASE CABLE REAR
180
ENGINE HOOD RELEASE CABLE FRONT
190
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
210
SAFETY HOOK TOP, AT ENGINE HOOD
220
SAFETY HOOK BOTTOM
230
HEXAGON HEAD BOLT LINE MOUNTING M6X10
240
BUFFER ENGINE HOOD STOP
240
BUFFER LEFT, FROM CHASSIS: 010 077937
245
NUT , Replaced By: N913023006001
250
ENGINE HOOD CATCH AT ENGINE HOOD
260
HEXAGON HEAD BOLT LINE MOUNTING M6X10
270
ENGINE HOOD CATCH LOWER SECTION TO FRONT END
280
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
290
INTERMEDIATE LAYER REAR LID STOP 22 MM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 23247820061012, Replaced By: A1698891295
300
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
400
SENSOR TOP COVERING
900
PLUGBUSKNOTEN (DACH)
901
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
902
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
903
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
