Поз.
Артикул
Описание

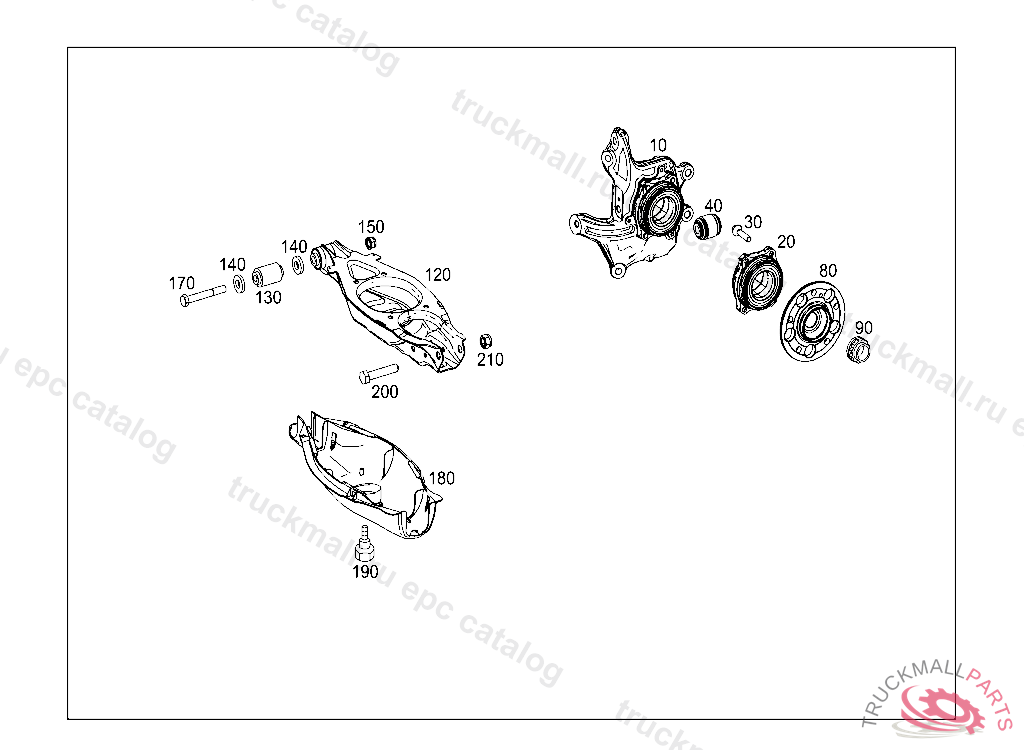

10
WHEEL CARRIER LEFT
10
WHEEL CARRIER RIGHT
20
ANGULAR CONTACT BEARING , OBSERVE WIS
30
BOLT WHEEL BEARING TO WHEEL CARRIER
40
JOINT SPRING CONTROL ARM TO WHEEL BEARING
80
FLANGE
90
COLLAR NUT REAR AXLE SHAFT TO HUB
120
CONTROL ARM SPRING CONTROL ARM
130
RUBBER MOUNTING
140
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
150
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
170
SCREW SPRING CONTROL ARM TO REAR SUBFRAME
180
COVERING SPRING CONTROL ARM
190
SCREW PROTECTIVE PLATE TO SPRING CONTROL ARM
200
SCREW SPRING CONTROL ARM TO WHEEL BEARING
210
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
