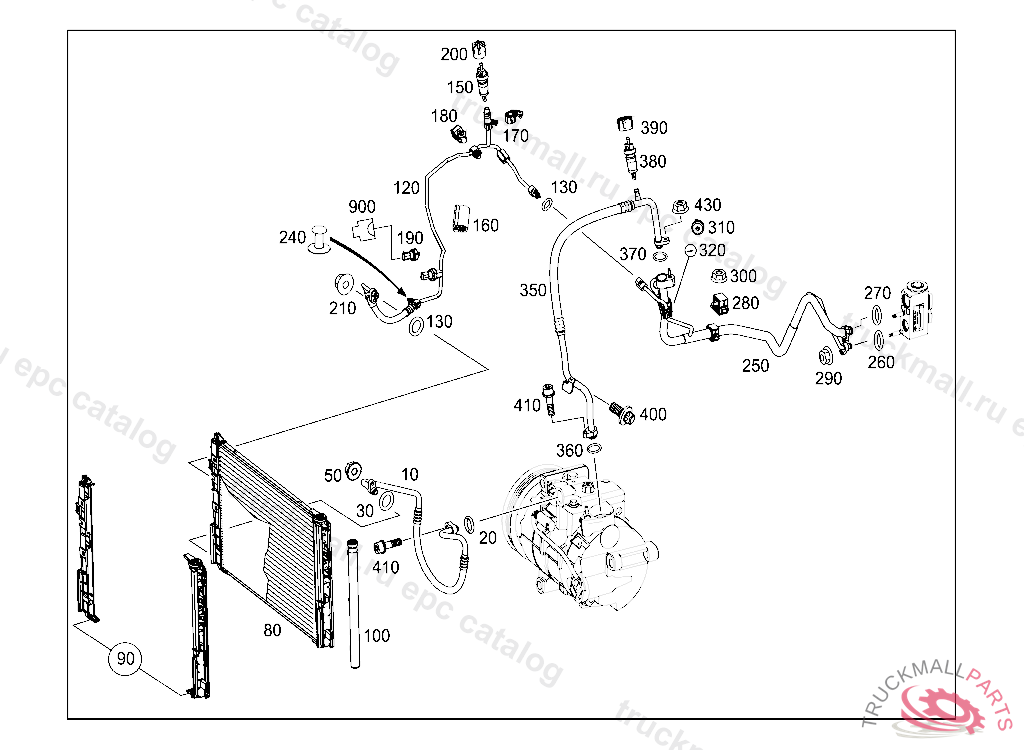

Поз.
Артикул
Описание
10
REFRIGERANT LINE FROM COMPRESSOR TO CONDENSER
10
REFRIGERANT LINE FROM COMPRESSOR TO CONDENSER
20
SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR 10.6X2 MM
20
PROFILE SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR
30
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
30
PROFILE SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR, V 00027520130717
50
NUT , Replaced By: N913023006001
80
CAPACITOR , Replaced By: A2465000454
80
REFRIGERANT CONDENSER
90
TS BRACKET LEFT AND RIGHT CONDENSER
100
REFRIGERANT DRIER DESSICANT CARTRIDGE PARTS KIT
120
REFRIGERANT LINE CONDENSER TO EXPANSION VALVE
130
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
150
VALVE INSERT TO REFRIGERANT LINE OF COMPRESSOR TO CONDENSER
160
SPACER RING AC WIRING
170
BRACKET FILLING VALVE
180
LINE HOLDER FUEL LINE MOUNTING
190
PRESSURE SENSOR
200
CAP
210
NUT , Replaced By: N913023006001
240
COVER CAP REFRIGERANT LINE
250
REFRIGERANT LINE FROM EXPANSION VALVE SEPARATION POINT
260
O-RING PRESSURE LINE TO CONDENSER 9.5X2.6
270
SEALING RING SUCTION LINE 13.7X2.5 MM
280
LINE FASTENER REFRIGERANT LINE
290
NUT , Replaced By: N913023006001
300
NUT , Replaced By: N913023006001
310
GROMMET MOUNTING, REFRIGERANT LINE
320
SNAP FASTENER MOUNTING, REFRIGERANT LINE
350
REFRIGERANT LINE SEPARATION POINT TO COMPRESSOR
350
REFRIGERANT LINE SEPARATION POINT TO COMPRESSOR
360
SEALING RING SUCTION LINE 23.8X2.4 MM
360
PROFILE SEALING RING PIPE LINE TO REFRIGERANT COMPRESSOR, V 00027520130717
370
O-RING SEPARATION POINT 16.7X2.5
380
VALVE INSERT TO REFRIGERANT LINE OF COMPRESSOR TO CONDENSER
390
CAP , NOT USED
400
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
430
NUT , Replaced By: N913023006001
900
CLUTCH. PIN BUSHING HOUSING SIREN
