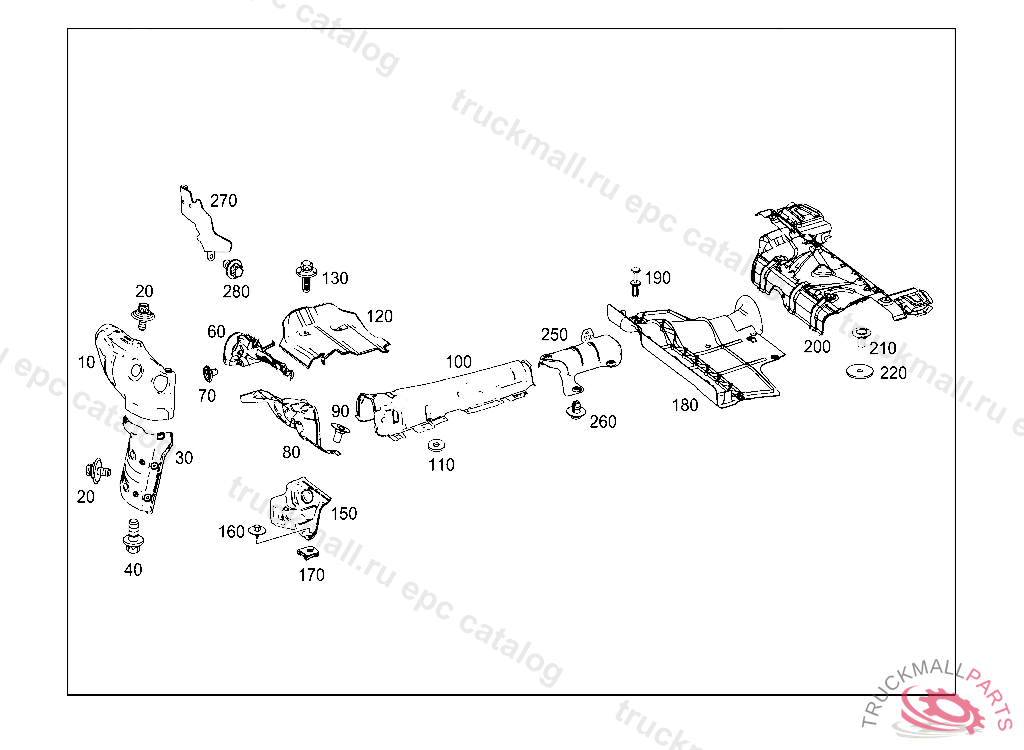

Поз.
Артикул
Описание
10
HEAT SHIELD TO EXHAUST MANIFOLD
10
HEAT SHIELD TO EXHAUST MANIFOLD
20
EXTERNAL HEXAL. HD. BOLT HEAT GUARD
30
HEAT SHIELD TO THREE-WAY CATALYTIC CONVERTER
30
HEAT SHIELD TO THREE-WAY CATALYTIC CONVERTER
40
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
60
SHIELDING TO FIRE WALL,RECHTS
70
HEXAGON NUT W COLLAR BRACKET MOUNTING
80
SHIELDING TUNNEL,FRONT
80
SHIELDING TUNNEL,FRONT
90
HEXAGON NUT W COLLAR BRACKET MOUNTING
100
SHIELDING OVER CATALYST
110
SPACER DISK SHIELDING TO MAIN FLOOR PANEL 4,7X28X1,5
120
HEAT SHIELD TUNNEL, TOP
130
SCREW W RND. HEXAL. HEAD ENGINE COMPARTMENT FRONT COVERING
150
SHIELDING TO FRAME-TYPE INTEGRAL SUPPORT
160
SCREW
170
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
180
COVER REAR SUBFRAME
190
EXPANSION RIVET FASTENING FOR LINING
200
SHIELDING ABOVE POSTERIOR MUFFLER
200
SHIELDING ABOVE POSTERIOR MUFFLER
210
HEXAGON NUT W COLLAR BRACKET MOUNTING
220
SPACER DISK SHIELDING TO MAIN FLOOR PANEL 4,7X28X1,5
270
SCREENING PLATE EXHAUST GAS RECIRCULATION VALVE
280
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
