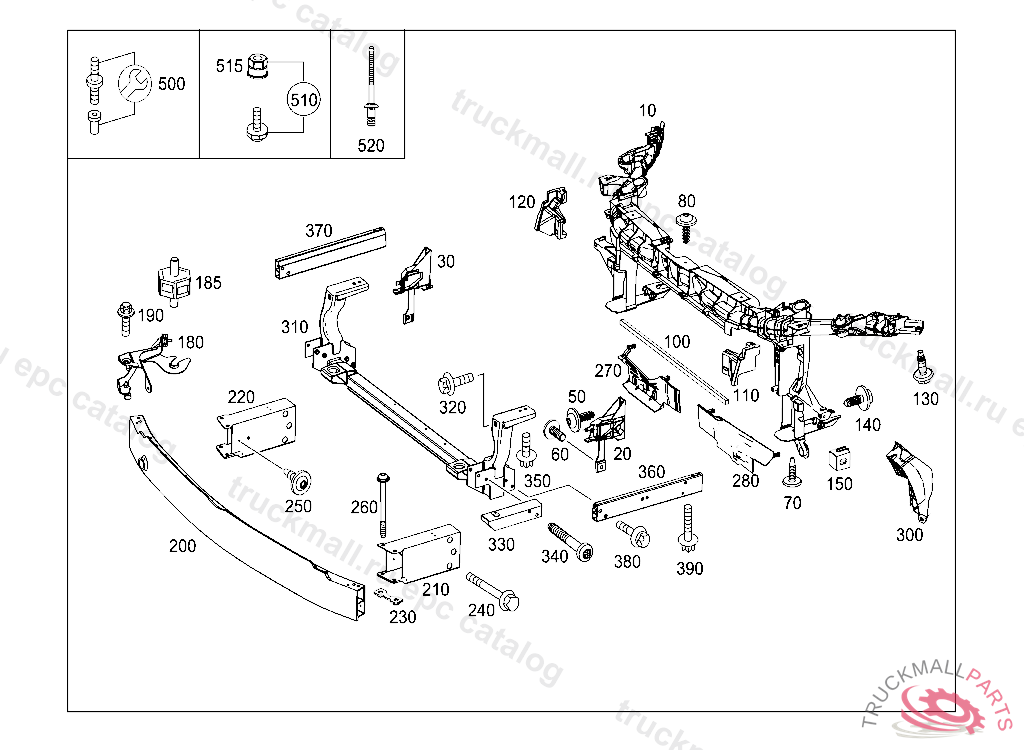

Поз.
Артикул
Описание
10
BEAM FRONT
20
SUPPORT BUMPER,LEFT
30
SUPPORT RIGHT BUMPER
50
FILLISTER HEAD SCREW BUMPER TO SUPPORT TOP
60
FILLISTER HD.SCREW BRACING TO SUPPORT M5X18
70
FILLISTER HD.SCREW BRACING TO SUPPORT M5X18
80
FILLISTER HEAD SCREW BUMPER TO SUPPORT TOP
100
SEALING LIP
110
AIR DUCT LEFT
120
AIR DUCT RIGHT
130
BOLT W FLANGE FRONT SUPPORT M8X25
140
SCREW PUMP TO BRACKET
150
SUPPORT
180
BRACKET RIGHT
185
BUFFER WIPER SYSTEM TO FRONT PANEL CENTER
190
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
200
CROSS MEMBER FRONT
210
ABSORBER LEFT
220
ABSORBER RIGHT
230
THREADED PLATE ABSORBER TO CROSSMEMBER
240
BOLT ABSORBER AT LONGITUDINAL MEMBER
250
FILLISTER HD.SCREW BRACING TO SUPPORT M5X18
260
FILLISTER HEAD SCREW ABSORBER TO CROSSMEMBER
270
COVER CROSS MEMBER CENTRAL RIGHT
280
COVER CROSS MEMBER CENTRAL LEFT
300
SUPPORT
300
SUPPORT
310
CROSS MEMBER RADIATOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 20130310 V 00000020130404, Replaced By: A2466200019
310
CROSS MEMBER RADIATOR
320
SCREW SPEED SENSOR TO REAR AXLE
330
ABSORBER TO CROSSMEMBER, LEFT AND RIGHT
340
HEXALOBULAR BOLT ABSORBER TO CROSSMEMBER
350
SCREW SPEED SENSOR TO REAR AXLE
360
CONNECTING CARRIER BOTTOM LEFT
370
CONNECTING CARRIER BOTTOM RIGHT
380
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
390
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
WELD STUD GROUND CONNECTION M6
510
WELD STUD GROUND CONNECTION M8
515
HEXAGON NUT W FLANGE. NUT CROSS MEMBER TO CONSOLE
515
HEXAGON NUT W FLANGE GROUND CONNECTION M8
520
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
