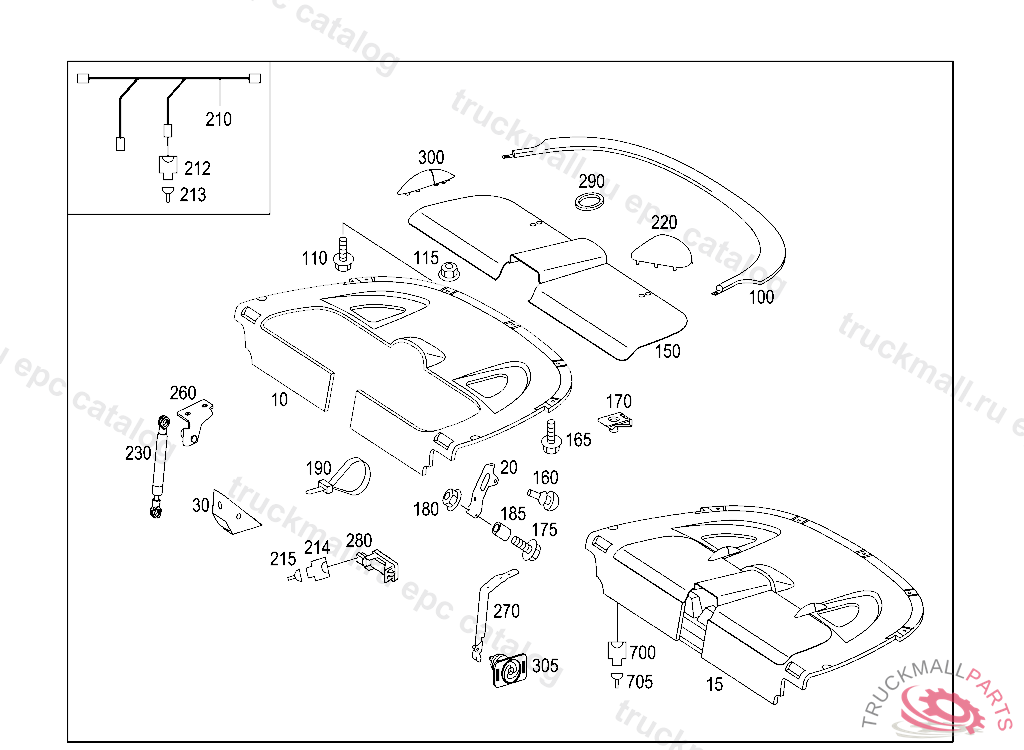

Поз.
Артикул
Описание
10
PANELING ON REAR PANEL
10
PANELING ON REAR PANEL
15
REAR PANEL
15
REAR PANEL
20
BRACKET RIGHT PANELLING
20
BRACKET LEFT PANELLING
30
BRACKET FRONT PANELLING
100
LEDGE REAR PANEL,TOP
100
LEDGE REAR PANEL,TOP SPORTSPACK
110
BOLT AT COVERING
150
PANELING HAT TRAY
160
STOP ARMREST
165
BOLT LEFT AND RIGHT M5 X 16 MM
170
NUT LOCK TO COVER
175
BOLT INSTRUMENT PANEL TO FRAME M5 X 12 MM
175
BOLT LEFT AND RIGHT M4 X 20 MM
180
NUT AT STEERING COLUMN BRACKET M4
185
SPACER BUSH LOCK ON SUPPORT
190
CABLE STRAP2.5 X 200 MM
210
EL. CABLE PIGEONHOLE LIGHTING
212
PLUG HOUSING 3-POLE
213
PLUG PINX 209, 0.75 MM2
214
PLUG DOME LAMP
215
REP.SET CONTACT. CABLE HARNESS FUSE AND RELAY BOX,DRIVER 4,0 MM2, CONNECTORS MUST ALSO BE ORDERED IN ACCORDANCE WITH THE TOTAL LINE CROSS-SECTION TO BE CONNECTED.REFER TO WIS FOR REPAIR INSTR. SOLDERED CONN.SLE.A 001 546 99 41GREEN 0,7 - 2,4 MM2 A 002 546 00 41RED 2,0 - 4,0 MM2 A 002 546 01 41BLUE3,5 - 8,0 MM2 A 002 546 11 41YELLOW7,5 - 12,0 MM2 BUTT JOINTA 002 546 13 410,5 MM2 A 002 546 14 410,8 MM2 A 002 546 15 411,3 MM2 A 002 546 16 412,0 MM2
220
FRAME LOUDSPEAKER,RIGHT
220
FRAME LOUDSPEAKER,LEFT
230
STAY COVERING
260
BRACKET GAS-OPERATED STRUT, TOP
270
BRACKET GAS-OPERATED STRUT, BOTTOM
280
INTERIOR LAMP RIGHT REAR FOOTWELL LAMP
290
SEAL REAR LOUDSPEAKER
300
HINGE LEFT & RIGHT COVERING
305
PUSH BUTTON
700
PIN BUSHING HOUSING WARNING DEVICE
705
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
