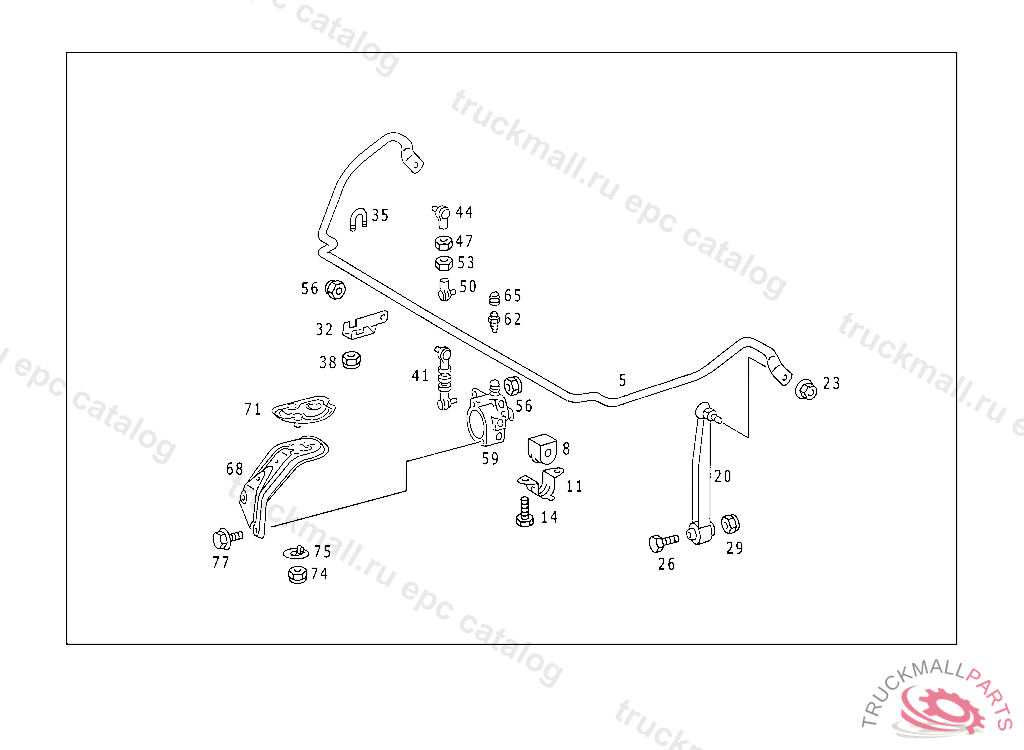

Поз.
Артикул
Описание
5
TORSION BAR
8
RUBBER MOUNTING TORSION BAR TO FRAME
11
CLAMP TORSION BAR TO FRAME
14
SCREW BRACKET TO SIDE MEMBER
14
SCREW TORSION BAR TO FRAME
20
ROD FROM TORSION BAR TO SPRING CONTROL ARM
23
NUT , Replaced By: N304035010001
23
NUT
26
SCREW VALVE TO BRACKET M 8X55
26
SCREW , Replaced By: N304017008043
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
NUT , Replaced By: N913004008001
29
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
LEVER R.H. THREAD, A 209785 F 100822
35
MOUNTING BOW LEVER TO TORSION BAR
38
NUT RELAY TO BRACKET M5
38
NUT , Replaced By: N913023005002
41
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT, A 209785 F 100822
44
LEVER R.H. THREAD, A 209785 F 100822
47
NUT BALL PIVOT TO LEVER
50
JOINT L.H. THREAD
53
NUT L.H. THREAD
56
NUT PUMP TO BRACKET
56
NUT , Replaced By: N913004006001
56
NUT HEATING PIPE TO BRACKET
59
VALVE , Replaced By: A1243200058
59
VALVE , Replaced By: A2023200058
59
VALVE , Replaced By: A2023200258
59
VALVE HEIGHT CONTROL VALVE
62
PIPE SOCKET OIL DRAIN
65
PROTECTIVE CAP , Replaced By: A0004217187
65
PROTECTIVE CAP ,5 962906
68
BRACKET HEIGHT CONTROL VALVE TO FRAME
71
PLATE HEIGHT CONTROL VALVE TO FRAME
74
NUT PUMP TO BRACKET
74
NUT , Replaced By: N913004006001
74
NUT HEATING PIPE TO BRACKET
75
LOCK
77
SCREW BELL HOUSING LOWER PART TO BELL HOUSING
77
HEXAGON HEAD BOLT , Replaced By: N000000002270
77
SCREW , Replaced By: N910106006006
999
REPAIR KIT TORSION BAR,REAR
