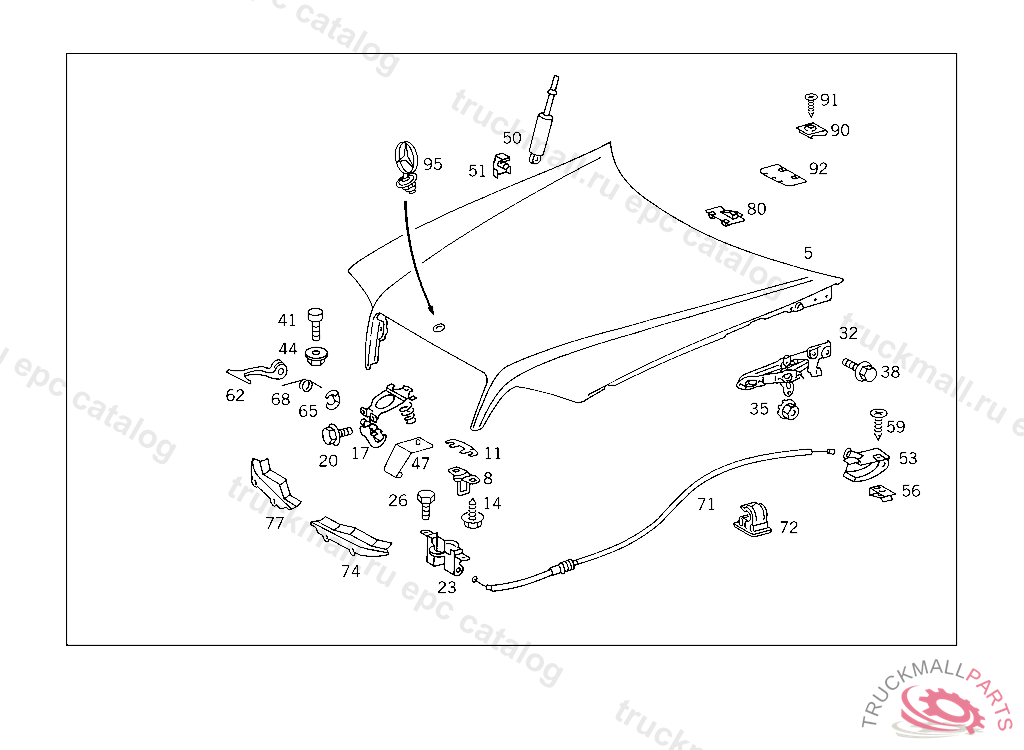

Поз.
Артикул
Описание
5
ENGINE HOOD
8
ENGINE HOOD CATCH UPPER PART
11
PAD CATCH TO ENGINE HOOD
14
SCREW
17
SAFETY HOOK
20
SCREW PROTECTIVE PLATE, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
23
FASTENER LOWER PART
26
COMBINATION BOLT , Replaced By: N304017006016
26
SCREW PUMP TO BRACKET
32
HINGE RIGHT
32
HINGE LEFT
35
NUT HINGE TO WHEELHOUSE
38
HEXAGON HEAD BOLT
41
BUFFER LEFT, FROM CHASSIS: 010 077937
44
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
47
DEFLECTOR SAFETY HOOK
50
SPRING (PNEUMATIC SPRING)
51
CLIP FOLDING TOP CASE COVER HINGE LEVER AND WHEELHOUSE MOUNTING
53
HANDLE ENGINE HOOD RELEASE CABLE
56
LOCK FRESH AIR,INSTRUMENT PANEL,CENTER
59
SHEET METAL SCREW4,2X13
62
HANDLE HANDLE TO SAFETY HOOK, F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM F 619721 WITH CODE 807
65
LOCK HOSE FASTENING
68
SPRING HANDLE TO SAFETY HOOK
68
SPRING , Replaced By: A2028870779
71
ENGINE HOOD RELEASE CABLE
72
CLAMPING PIECE ENGINE HOOD RELEASE CABLE TO STIFFENING
74
SEAL ENGINE HOOD BRACKET,FRONT LEFT
77
SEAL ENGINE HOOD BRACKET,FRONT RIGHT
80
COVERING AT ENGINE HOOD BRACKET,REAR, TO COVER WASHER NOZZLES
90
LOCK. SHEET METAL NUT PLATE TO FRAME,V 202043
91
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
92
COVERING AT ENGINE HOOD BRACKET,REAR, FOR CHECK VALVE
95
MERCEDES STAR , C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
95
MERCEDES STAR , C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859, Replaced By: A2108800186
