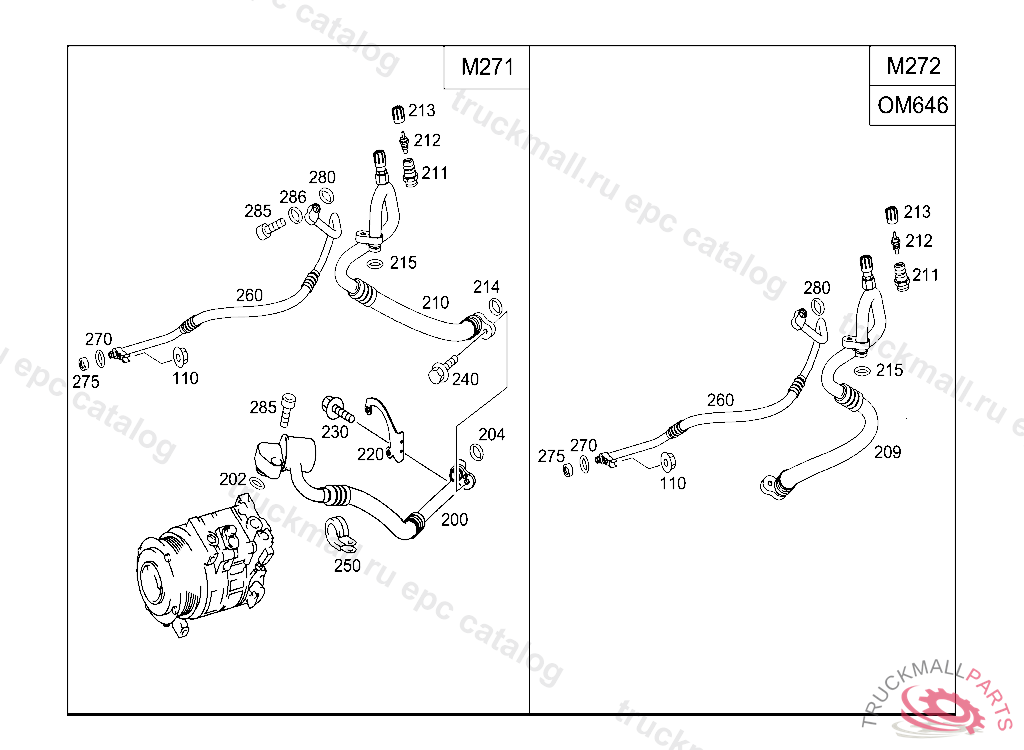

Поз.
Артикул
Описание
110
NUT , Replaced By: N913023006001
209
PIPE FROM COMPRESSOR TO SEPARATION POINT
209
REFRIGERANT LINE FROM COMPRESSOR TO SEPARATION POINT
211
VALVE SUCTION LINE
212
VALVE INSERT TO REFRIGERANT LINE OF COMPRESSOR TO CONDENSER
213
CAP , NOT USED
214
SEAL RING
215
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
260
PRESSURE LINE AIR CONDITIONER
260
PIPE DELIVERY LINE, A 55589720030630804 F 45737520031014804 R 13114520031203804 A 97499920070630809 F 95500020070630809
260
PIPE DELIVERY LINE, E 02900020071206808
270
O-RING. SEAL RING9.5 X 2.5
275
GUIDE PRESSURE LINE TO CONDENSER
280
O-RING AT CONDENSER 10.6X2
285
SCREW BRACKET TO INTAKE MANIFOLD
285
SCREW STEERING COLUMN TO CAB
286
WASHER PUMP TO CONSOLE
