Поз.
Артикул
Описание

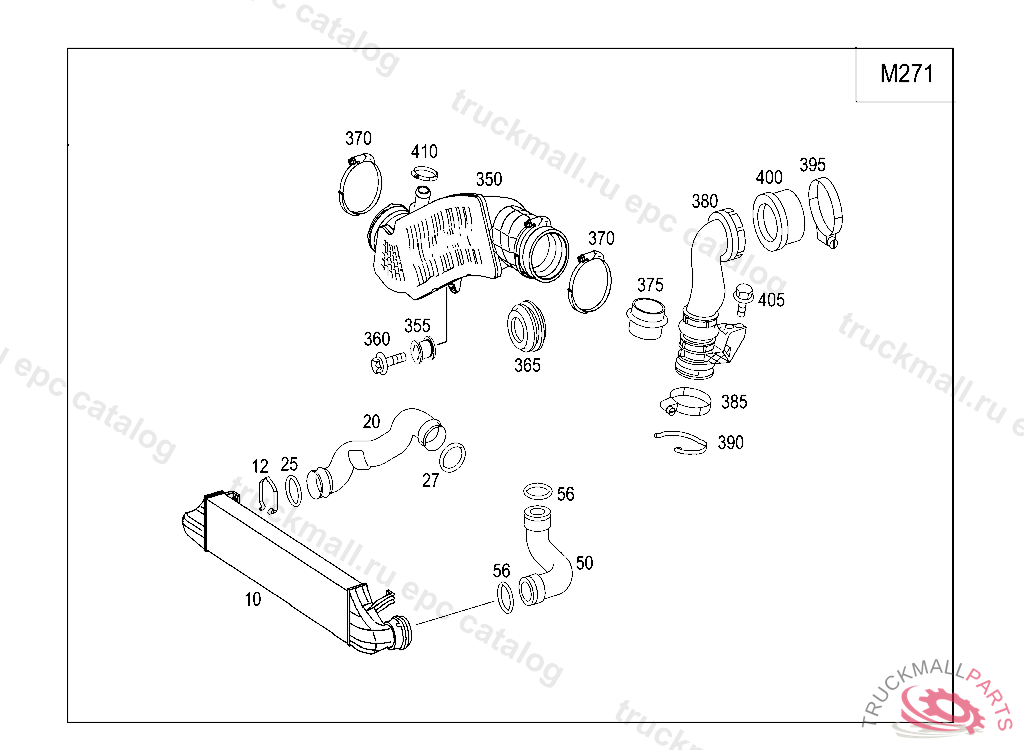

10
CHARGE AIR COOLER , A 55589720030630804 E 02000020070101804
10
CHARGE AIR COOLER , E 01999920070101805 A 66602420040430805
12
STOP SPRING AT CHARGING AIR INTERCOOLER
20
HOSE RIGHT CHARGE-AIR INTERCOOLER, A 97499920070630 E 06000020080801809
20
HOSE RIGHT CHARGE-AIR INTERCOOLER, E 02900020071206808
25
SEAL RING CHARGE AIR MANIFOLD, LEFT
27
SEAL RING CHARGE AIR MANIFOLD, LEFT
50
HOSE LEFT CHARGE-AIR INTERCOOLER, E 06000120080801
50
HOSE LEFT CHARGE-AIR INTERCOOLER, A 97499920070630 E 06000020080801
56
SEAL RING CHARGE AIR MANIFOLD, LEFT
350
SHOCK ABSORBER
350
CHARGE AIR CROSS PIPE , Replaced By: A2710902137
355
BUSHING TO AIR LINE
360
HEXALOBULAR BOLT. SCREW CYLINDER HEAD COVER TO CYLINDER HEAD M 6X30
365
RUBBER BUMPER BUSHING
370
LOOM TIE LINE MOUNTING
375
ACCORDION TUBE CHARGE AIR HOSE
380
AIR MANIFOLD
380
CHARGING AIR LINE
380
AIR MANIFOLD , Replaced By: A2710901837
380
AIR MANIFOLD , Replaced By: A2710902237
385
LOOM TIE LINE MOUNTING
390
STOP SPRING AT CHARGING AIR INTERCOOLER
395
LOOM TIE. CLAMP HOSE FASTENING
400
GASKET
405
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
405
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
410
CLAMP W DRIVE A WASHER MOLDED HOSE ON CHARGE AIR MANIFOLD
