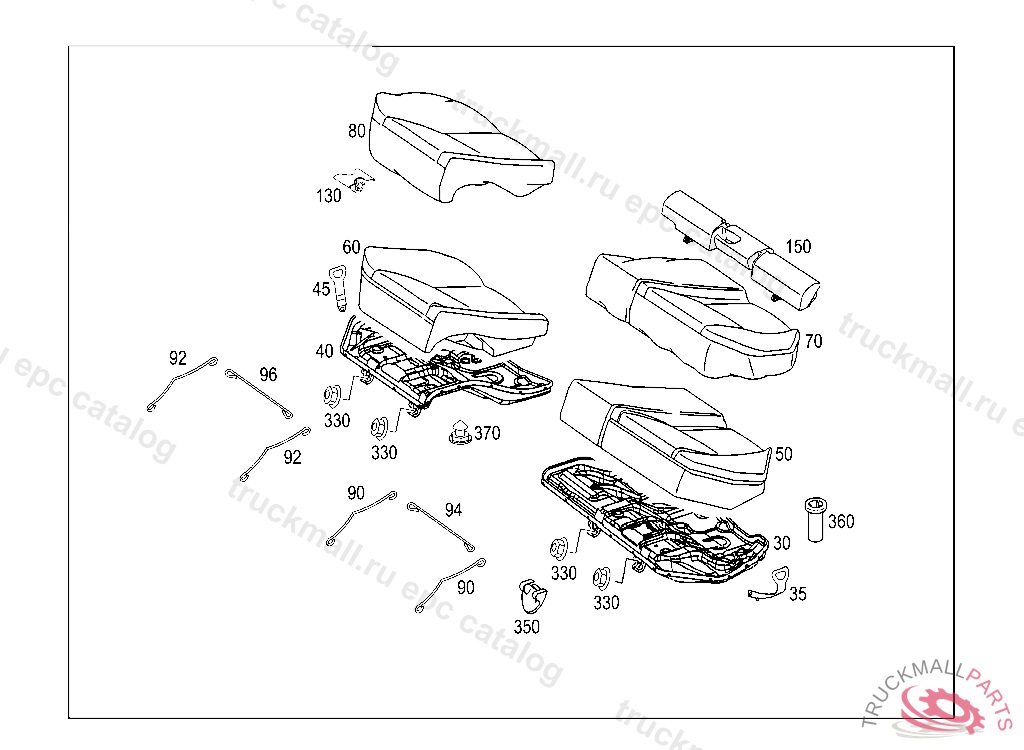

CLC 160 - 203.731 - 92 REAR SEAT BENCH
Поз.
Артикул
Описание
30
CUSHION FRAME LEFT
35
LOCKING MECHANISM LEFT
40
CUSHION FRAME RIGHT
45
LOCKING MECHANISM RIGHT
50
REST LEFT
60
REST RIGHT
70
COVER LEFT
70
COVER LEFT
70
COVER REAR SEAT CUSHION LEFT
70
COVER LEFT
70
COVER LEFT
80
COVER RIGHT
80
COVER RIGHT
80
COVER REAR SEAT CUSHION RIGHT
80
COVER RIGHT
80
COVER RIGHT
90
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
92
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
94
CLAMP COVER STITCHING 285 MM
96
CLAMP COVER STITCHING 285 MM
130
CLIP TRANSVERSAL TACKING
150
PAD LEFT
150
PAD LEFT
150
PAD LEFT
330
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
330
NUT HORN TO BRACKET M8
350
COVER MOUNTING TO FLOOR
360
PUSH BUTTON
370
PIN
