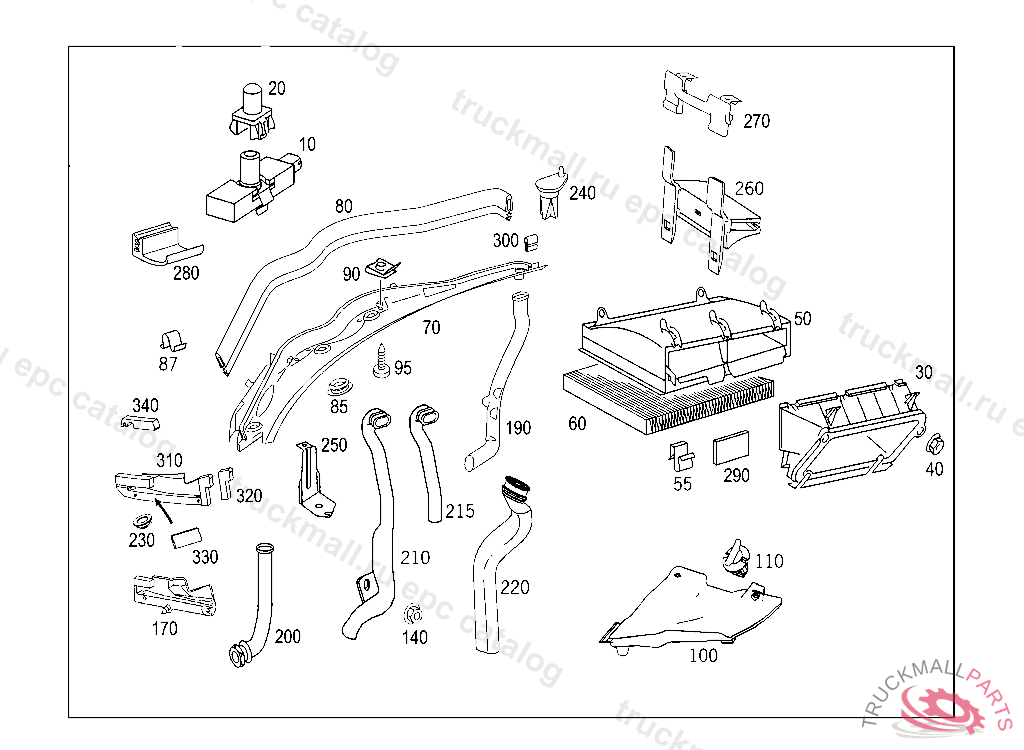

Поз.
Артикул
Описание
10
SENSOR SUN SENSOR
20
COVER SUN SENSOR
30
HOUSING DUST FILTER
30
HOUSING DUST FILTER
40
NUT MOUNTING FRAME TO SUPPORT M6
50
HOUSING FILTER
50
FILTER BOWL FILTER FUER STAUB-/KOMBIFILTER RECHTSLENKER
55
MOUNTING CLAMP HOUSING, A 42814020020812 E 02000020070101
60
COMBINATION FILTER INBOARD
60
COMBINATION FILTER INBOARD
70
COVER COVERING ABOVE ELECTRONICS
70
COVER COVERING ABOVE ELECTRONICS
80
SEAL RIGHT
85
BUSHING
87
CLIP AT COVERING
90
LOCK NUT. LOCK
95
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
100
COVER AIR DUCT
100
COVER AIR DUCT
110
CATCH COVERING TO COVERING
140
NUT COVERING TO CAB FIRE WALL
190
DRIP MOULDING ENGINE COMPARTMENT
190
DRIP MOULDING ENGINE COMPARTMENT
200
DRIP MOULDING TOP
200
DRIP MOULDING ON WATER DRAIN AND LONGITUDINAL MEM. BOTTOM
210
FITTING CENTRAL LEFT
220
FITTING CENTRAL RIGHT
230
PLUG TUNNEL,RIGHT FRONT FLOOR 25 MM
240
VALVE WHEELHOUSE
250
BRACKET COVERING
250
BRACKET COVERING
260
BRACKET AT PARTITION PANEL
270
COVER
280
SEAL SCREENING PLATE
290
SEAL AT SIDE MEMBER
300
SEAL UPPER WATER DRAIN, A 42814020020813
310
DRIP MOULDING AT RIGHT SIDE MEMBER,TOP
310
DRIP MOULDING AT LEFT SIDE MEMBER, TOP
320
SEAL CROSS MEMBER
340
SEAL
