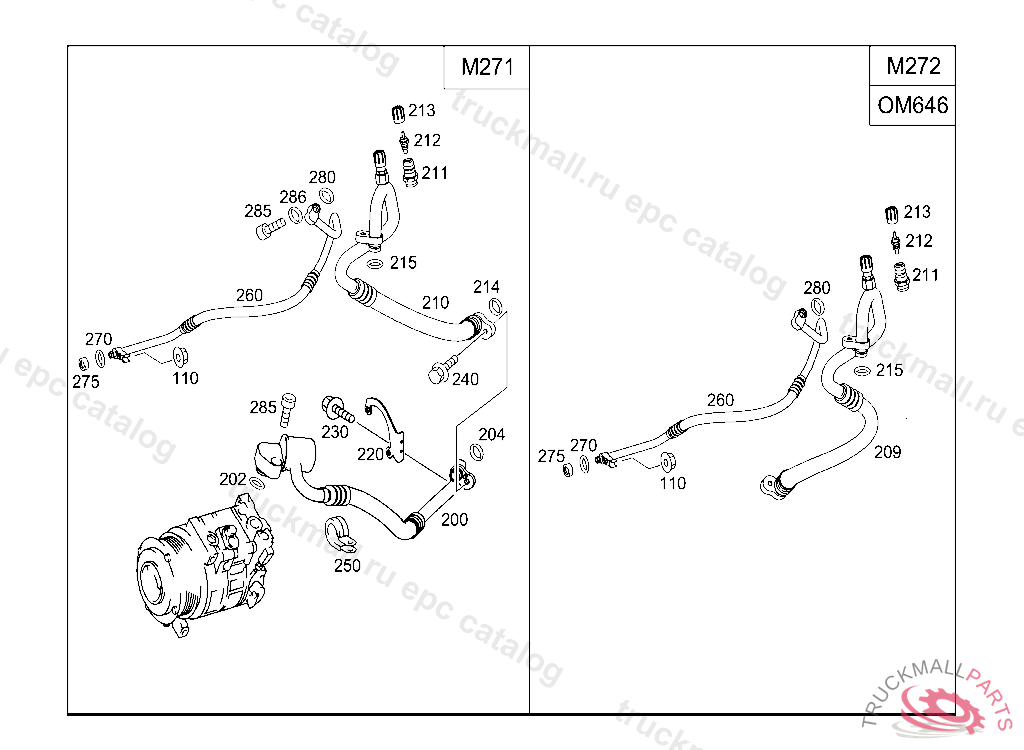

Поз.
Артикул
Описание
110
NUT , Replaced By: N913023006001
209
PIPE SUCTION LINE, Replaced By: A2722300756
209
PIPE SUCTION LINE
211
VALVE SUCTION LINE
212
VALVE INSERT TO REFRIGERANT LINE OF COMPRESSOR TO CONDENSER
213
CAP , NOT USED
214
SEAL RING
215
SEAL RING SUCTION LINE 13.7X2.5 MM, Replaced By: A0139974745
260
PIPE DELIVERY LINE
260
PIPE DELIVERY LINE, E 02900020071206808
270
O-RING. SEAL RING9.5 X 2.5
275
GUIDE PRESSURE LINE TO CONDENSER
280
O-RING AT CONDENSER 10.6X2
285
SCREW STEERING COLUMN TO CAB
285
SCREW BRACKET TO INTAKE MANIFOLD
286
WASHER PUMP TO CONSOLE
