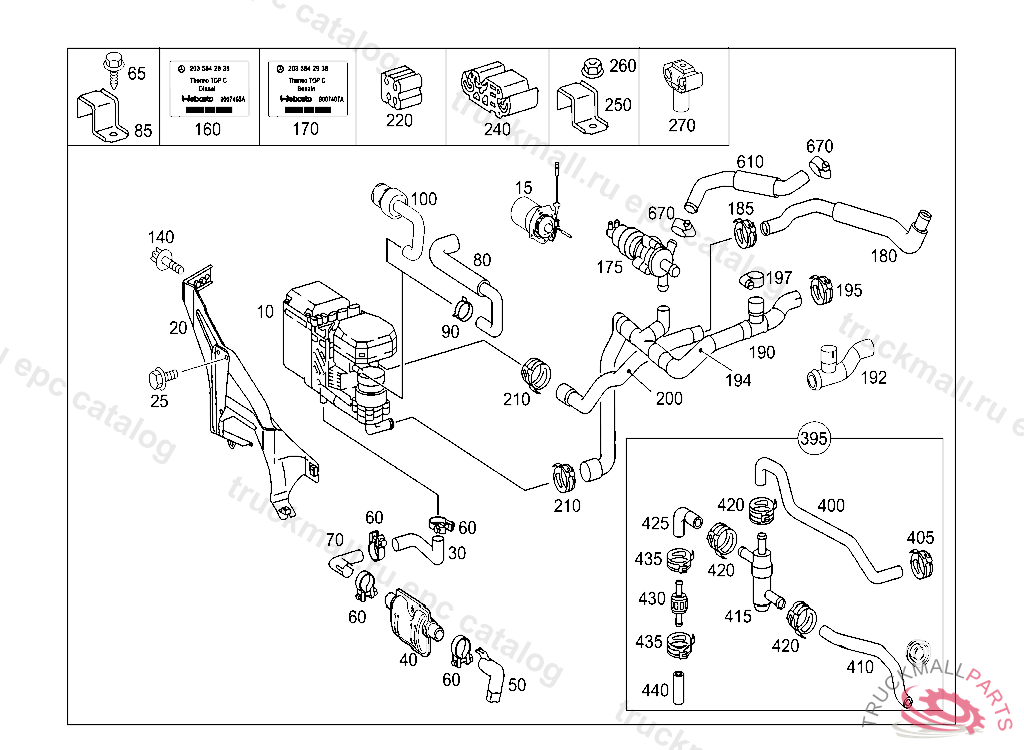

Поз.
Артикул
Описание
10
HEATER UNIT
10
HEATER UNIT , Replaced By: A2035004998
15
BURNER INSET HEATING
20
BRACKET HEATER UNIT
25
SCREW HEATER UNIT TO BRACKET, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
30
EXHAUST PIPE AT HEATER
40
MUFFLER EXHAUST MUFFLER
50
END PIECE INDEPENDENT HEATING
60
CLAMP EXHAUST PIPE
65
TAPPING SCREW
70
FRONT EXHAUST PIPE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
80
HOSE AT HEATER
85
CLAMP
90
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
100
FAN SHROUD AIR INTAKE, A 92485720060703 E 01999920070101
100
AIR INTAKE PIPE AIR INTAKE, E 02000020070101
140
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
170
STICKER INDEPENDENT HEATING, A 55589720030630804 E 02000020070101804
175
CIRCULATION PUMP
175
CIRCULATION PUMP
180
PIPE HOSE TO CHECK VALVE
185
CLAMP. LOOM TIE
190
HOSE LINE TO COMPENSATING TANK, WATER PUMP AND HEATER UNIT
197
CLAMP HOSE FASTENING 28-35 MM,V 207570
200
HOSE CHECK VALVE TO HEATER UNIT
210
HOSE CLAMP HOSE ATTACHMENT 27 MM
220
DAMPING STRIP LINE CLIP FUEL LINE FOR STATIONARY HEATER
240
CLAMP AT SIDE MEMBER
250
CLAMP LINE AUX.HEATER LEFT REAR SEAT FLOOR
260
NUT COVERING TO CAB FIRE WALL
270
LINE HOLDER
395
HOSE
395
HOSE
400
HOSE COMBINATION VALVE (FEED TO VEHICLE HEATING)
405
HOSE CLAMP HOSE ATTACHMENT 27 MM
410
HOSE COMBINATION VALVE TO COUPLER
415
VALVE
420
CLAMP25 MM
425
HOSE CHECK VALVE TO COMBINATION VALVE
430
VALVE CHECK VALVE
435
CLAMP. LOOM TIE
440
HOSE FROM CHECK VALVE TO PIPE LINE
610
HOSE BETWEEN RECIRCULATING PUMP AND ENGINE
670
CLAMP. LOOM TIE
