Поз.
Артикул
Описание
10

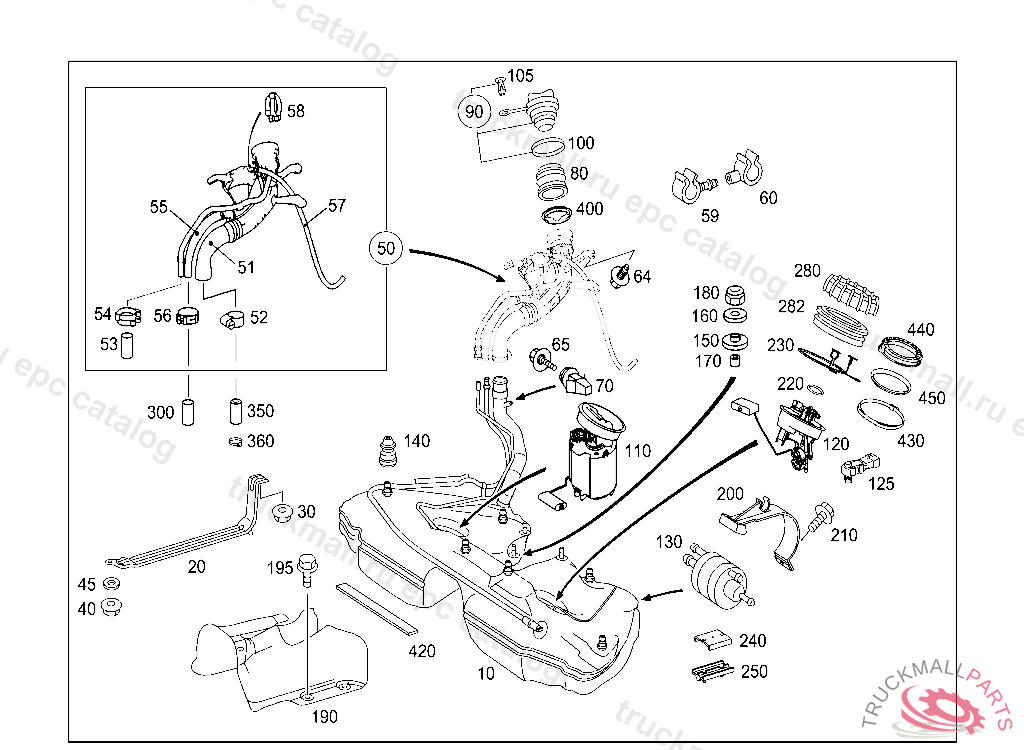

FUEL TANK , A 74485320041029
10
FUEL TANK , E 01945020051031806 A 87779820060113806 F 77393520060113806 R 22835220060308806
20
TENSIONING STRAP TANK ATTACHMENT
30
NUT
40
HEXAGON NUT
45
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
50
FILLER NECK , F 77393520060113806
50
FILLER NECK FUEL TANK
50
FILLER NECK FUEL TANK
50
FILLER NECK , A 92485720060630807
50
FILLER NECK FUEL TANK, A 92485720060630807, Replaced By: A2034701920
51
MOLDED HOSE FROM FILLER NECK TO FUEL TANK
52
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
53
HOSE , Replaced By: A2024766426
53
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
53
HOSE FROM FEED LINE TO FILTER 240 MM
54
HOSE CLAMP HOSE ATTACHMENT
55
FUEL HOSE TANK BREATHING
55
HOSE TANK BREATHING 28X4MM, ORDER BY THE METER
56
LOOM TIE ACTIVATED CHARCOAL FILTER TO SHUT-OFF VALVE, FROM MODEL YEAR '98
56
HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
57
HOSE FROM FEED LINE TO FILTER 240 MM
57
HOSE FILLER NECK TO CHARCOAL FILTER
57
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
58
HOSE CLAMP HOSE ATTACHMENT
59
CLAMP. EXTENDABLE SPACER BREATHER LINE
60
BRACKET LINE MOUNTING 11 MM
64
BOLTM6X18
65
SCREW PARTITION PANEL TO FRONT FENDER, 003 109847 007 098846 086 007461 093 010729 102,103 304111 105 266568 183 019766 190 024811 193 007801 200 082947 280 003503 283 008887
70
TREENAIL LEFT AND RIGHT REAR SIDE MEMBERS
80
GROMMET TANK FILLER NECK
90
FILLER CAP , J 75730620090630
90
FILLER CAP TANK FILLER NECK, E 02000020070101802 A 17199120010928802
100
SEAL RING FILLER CAP
100
SEAL RING FILLER CAP TO FILLER NECK
105
EXPANSION RIVET. RIVET
110
DELIVERY UNIT WITH FLUID LEVEL SENSOR, E 01945020051031806 A 87779820051031806 F 77393520060113806 R 22835220060308806 E 02999920061231
120
DELIVERY UNIT WITH FLUID LEVEL SENSOR, E 01945020051031 A 55589720030630 F 45737520031014 R 13114520031203
120
DELIVERY UNIT WITH FLUID LEVEL SENSOR, F 77393520060113806
125
PRESSURE SENSOR
130
FUEL FILTER FUEL FILTER TO TANK
140
RUBBER BUMPER FUEL TANK
150
RUBBER SLEEVE FUEL TANK, A 74703220041029 E 02000020070101
150
RUBBER SLEEVE , A 74703120041029 E 01999920070101
160
RUBBER SLEEVE
170
BUSHING
180
HEXAGON NUT
190
COVER
195
SCREW COVER TO HOUSING WITH TRAY, Replaced By: A0019845629
200
BRACKET FUEL FILTER
210
HEXALOBULAR BOLT. SCREW STAY TO CYLINDER HEAD M 6X23
220
SEAL RING
230
RETAINING RING MOLDED HOSE
280
NUT MAINTENANCE OPENING
282
SEAL RING
282
SEAL RING , Replaced By: A2034710379
282
SEAL RING MAINTENANCE OPENING, Replaced By: A2034710379
282
SEALING RING MAINTENANCE OPENING, Replaced By: A2114710579
300
HOSE , Replaced By: A1074763126
300
FUEL HOSE TO FUEL FILTER 1000 MM, ORDER BY THE METER
350
LOCKING CAP
360
CLAMP RISING PIPE,5 4734955 909351
420
SHIM AT COVERING
